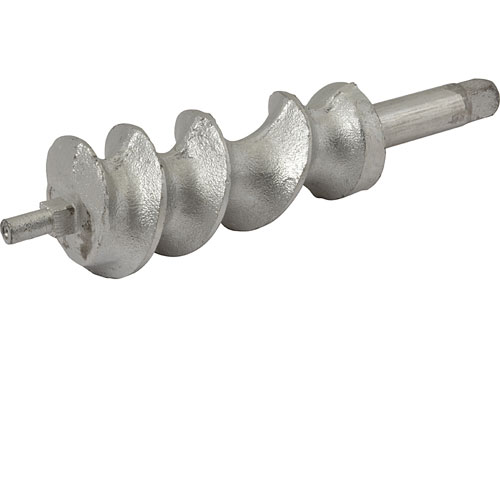

Hobart 00-15878 Worm Assembly

SKU: 00-15878 Brand:
Hobart
Availability:
In Stock
(0)
$553.71
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Worm For Grinder Attachment W/ # 12 Hub.
Square Drive 9/16"
Total Length 9 1/8"
Worm Total Length 5 1/16"
Small Shaft Dia 3/8"
Small Square 7/16"
Large Shaft Dia 3/4"
Max Worm Dia 2 1/4"
Includes Fiber Washer # 32-1103
Note #22 Hub Uses 3/4" Square Drive.

Description

The Hobart 00-15878 Worm Assembly is a #12 hub meat grinders run and function at a better level. The worm is 5 1/16 inches long, and the total length of the assembly is 9 1/8 inches it has a square drive of 9/16 inches. The small shaft diameter is 3/8 inches, the large shaft diameter is 3/4 inches, and the maximum worm diameter is 2 1/4 inches. It comes complete with a fiber washer #32-1103 for best operation. This worm assembly facilitates grinding process, for the consistency of meat texture and quality. Commercial kitchens and meat processing operations rely on streamlining of the workflow and on improving productivity.

More Information:

Step1: Turn off and unplug the appliance.

Step2: Remove the old worm assembly carefully.

Step3: Inspect the head and bearings for wear or debris.

Step4: Insert the new worm assembly into the head, aligning properly.

Step5: Secure with retaining hardware or lock rings.

Step6: Test rotation manually to ensure smooth movement.

Step7: Reassemble any covers or guards removed.

Step8: Power on and test operation under load to confirm proper operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Hobart 00-15878 Worm?

    Maintenance involves checking the transmission oil level in the mixer, and worm based on continuous lubrication. Inspect for noise, metal shavings, or rough operation, which indicate wear on the worm or its mating gear.

  • How do I install the Hobart 00-15878 Worm?

    • Disconnect power and drain the mixer transmission oil.
    • Open the gearbox cover and remove the old worm from the drive shaft.
    • Clean the housing and inspect the bronze worm gear for wear.
    • Install the new worm onto the shaft and align it with the gear.
    • Reassemble the gearbox, refill with oil, and test for smooth drive operation.

  • What are common issues with the Hobart 00-15878 Worm?

    Common issues include accelerated wear from low or contaminated gearbox oil, causing grinding or slipping under load. Metal debris in the transmission oil often signals worm or gear tooth deterioration.

  • What maintenance is required for the Hobart 00-15878 00-15878 Worm Assembly?

    Regularly clean the worm assembly to prevent food buildup and ensure smooth rotation. Check for signs of damage or bending. Proper alignment is essential for efficient operation and safety.

  • What are common issues with the Hobart 00-15878 00-15878 Worm Assembly?

    • Food jamming or clogging.
    • Worn or bent worm threads.
    • Excessive vibration or noise.
    • Weak ingredient movement through the grinder.
