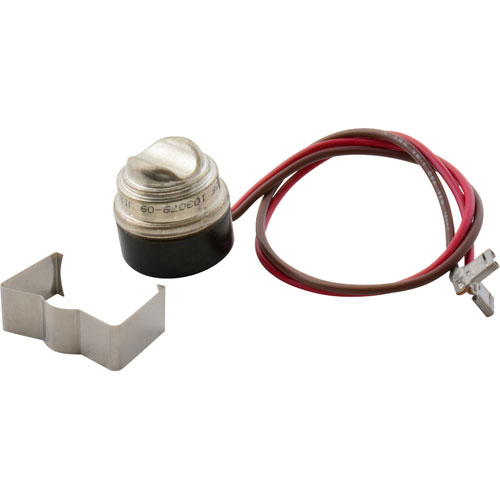

Russell 103079-09 2-Wire Fan Delay Switch 15" Lead
$250.04
Price reduced from
$359.25
Specifications:
| Attribute | Details |
|---|---|
| Length | 381 mm | 15" Leads |
| Temperature Range | 2 C | 7 C | 35 F Closes | 45 F Opens |
| Type | 2 Wire |
Description
The Russell 103079-09 2-Wire Fan Delay Switch 15" Lead controls the timing sequence of a motor by delaying startup or shutdown during equipment operation. This uses a two-wire connection and extended leads to transfer electrical signals between the control system and fan assembly. It is commonly used inside cooling units and other temperature-control equipment where timed operation is required. The component assists in managing airflow during heating or cooling processes and connects directly to compatible electrical systems within the equipment cabinet.
More Information:
- MASTERBILT:19-13854||RUSSELL:103079-009 ,103079-09 ,103079009 ,RUS103079-009 ,RUS103079-09 ,RUS103079009
Step 1: Before beginning any service work, ensure that all power to the freezer is disconnected to maintain safety during installation.
Step 2: Identify the current fan delay switch located in the area of the evaporator or control panel.
Step 3: Detach the old switch by removing the two-wire connections from the wiring harness.
Step 4: Verify that the new Russell 103079-09 switch matches the old one to ensure it is the correct component.
Step 5: Attach the leads of the new two-wire fan delay switch to the harness, making certain that the connections are secure and the polarity is correct.
Step 6: Position the switch back in its original mounting location to avoid putting stress on the leads.
Step 7: Reapply power and check the operation of the fan delay by observing the fan's response as temperatures fluctuate.
Step 2: Identify the current fan delay switch located in the area of the evaporator or control panel.
Step 3: Detach the old switch by removing the two-wire connections from the wiring harness.
Step 4: Verify that the new Russell 103079-09 switch matches the old one to ensure it is the correct component.
Step 5: Attach the leads of the new two-wire fan delay switch to the harness, making certain that the connections are secure and the polarity is correct.
Step 6: Position the switch back in its original mounting location to avoid putting stress on the leads.
Step 7: Reapply power and check the operation of the fan delay by observing the fan's response as temperatures fluctuate.
