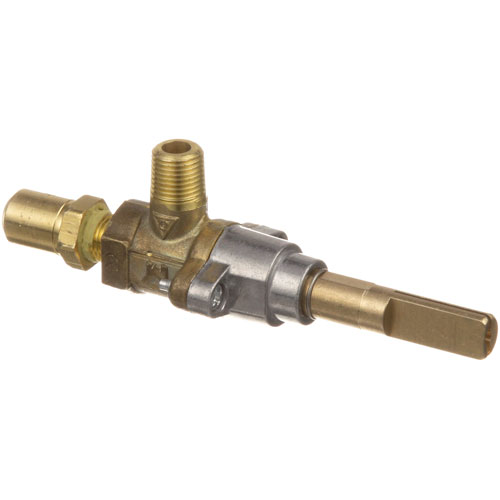

Garland 1046287 Burner Gas Valve 1/8 MPT

SKU: 1046287 Brand:
Garland
Availability:
Out of Stock
(0)
$101.11 Price reduced from $155.80
Save $54.69
Have a Question? +1 (866) 863-0907 / (630) 326-8602

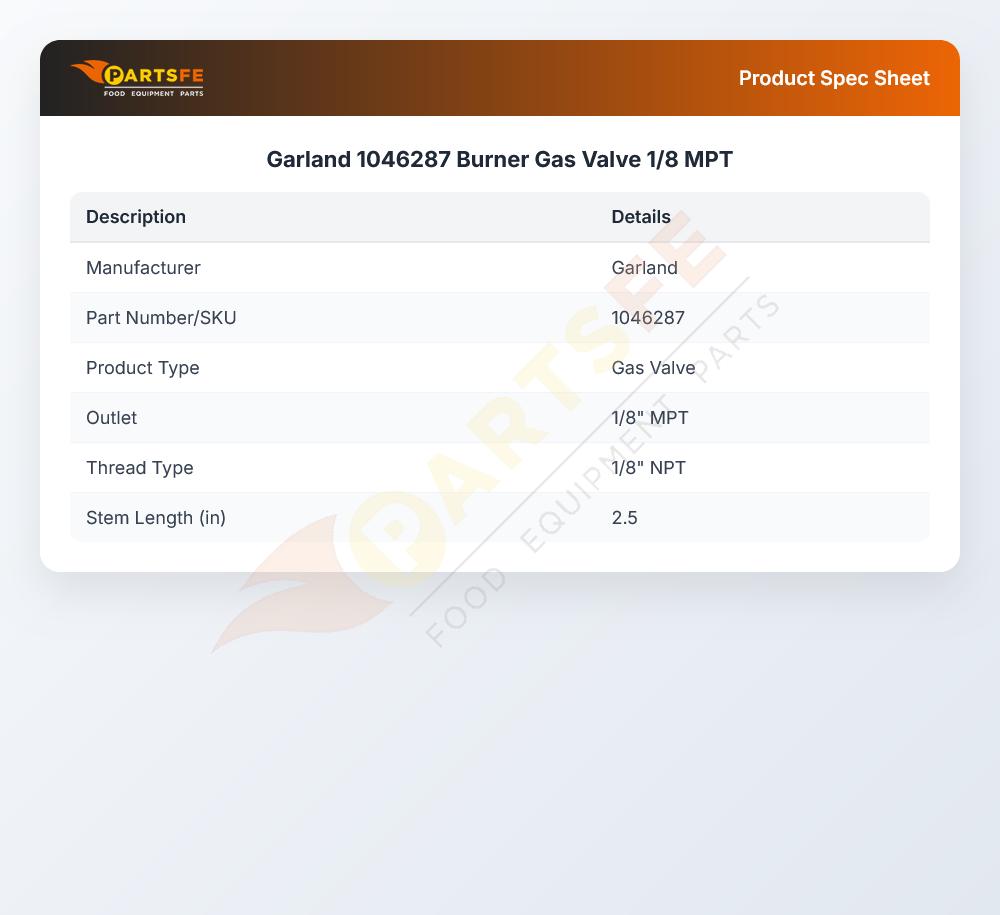

Specifications:

Attribute Details
Burner Valve
[ 1/8" Mpt Inlet ] [ Rotation Off/On]
[Stem Position Down] [Stem Size .240"] Stem 1-3/8" Long.
[Ctr Inlet To End Of Stem 2.5"]
[ Angle - 90], [ 3/8"-27 Outlet Comes With
Hood Orifice #42 ],
Valve Body W/ 2 Screws,
For Knurled Collar Type Use # 52-1666
Garland Fry Top Valve

Description

The Garland 1046287 Burner Gas Valve 1/8" MPT regulates the amount of gas flow through an internal mechanism operated by a control signal that is applied and removed by the signal. The valve enables the gas to go through the thread connection of the male pipe to the burner assembly when it is actuated, so that it can be burned. This is a valve installed on the gas line of commercial cooking equipment that is compatible, usually between the supply and the burner. It is designed to be used in case the valve is not properly.

More Information:

  • GARLAND:1046287 ,1046288 ,1046293 ,1046297 ,1046298

Step1: Ensure the gas supply is completely turned off.

Step2: Disconnect and remove the old burner gas valve from the appliance.

Step3: Install the new valve in the same orientation and position.

Step4: Reattach the gas line and ensure all fittings are tight.

Step5: Turn the gas back on gradually and test the burner operation.

Step6: Make sure the area is well-ventilated and free of open flames during installation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Garland 1046287 Burner Gas Valve?

    Inspect the valve periodically for leaks, proper gas flow, and smooth operation. Clean external surfaces and ensure internal passages are free from debris. Check all fittings and tighten connections securely. Proper maintenance supports accurate gas delivery and ensures secure burner operation.

  • What are the common issues with the Garland 1046287 Burner Gas Valve?

    • Gas leakage due to worn seals or faulty fittings.
    • Valve sticking or becoming difficult to turn.
    • Inconsistent gas flow is affecting burner performance.
    • Internal component wear reduces control accuracy.
    • Blockages restricting gas passage.
    • Delayed ignition caused by irregular gas supply.
