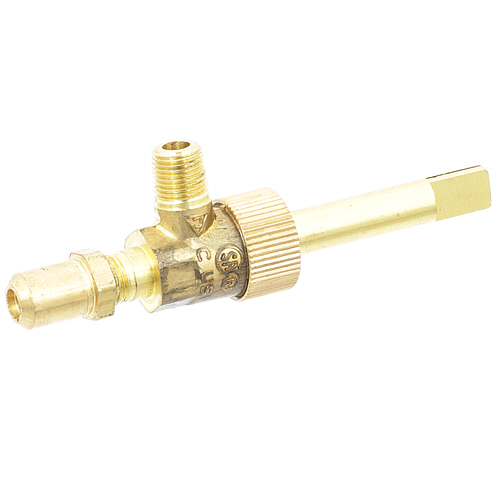

Garland 1046296 Burner Valve 1/8" NPT

SKU: 1046296 Brand:
Garland
Availability:
In Stock
(0)
$47.49 Price reduced from $64.92
Save $17.43
Have a Question? +1 (866) 863-0907 / (630) 326-8602

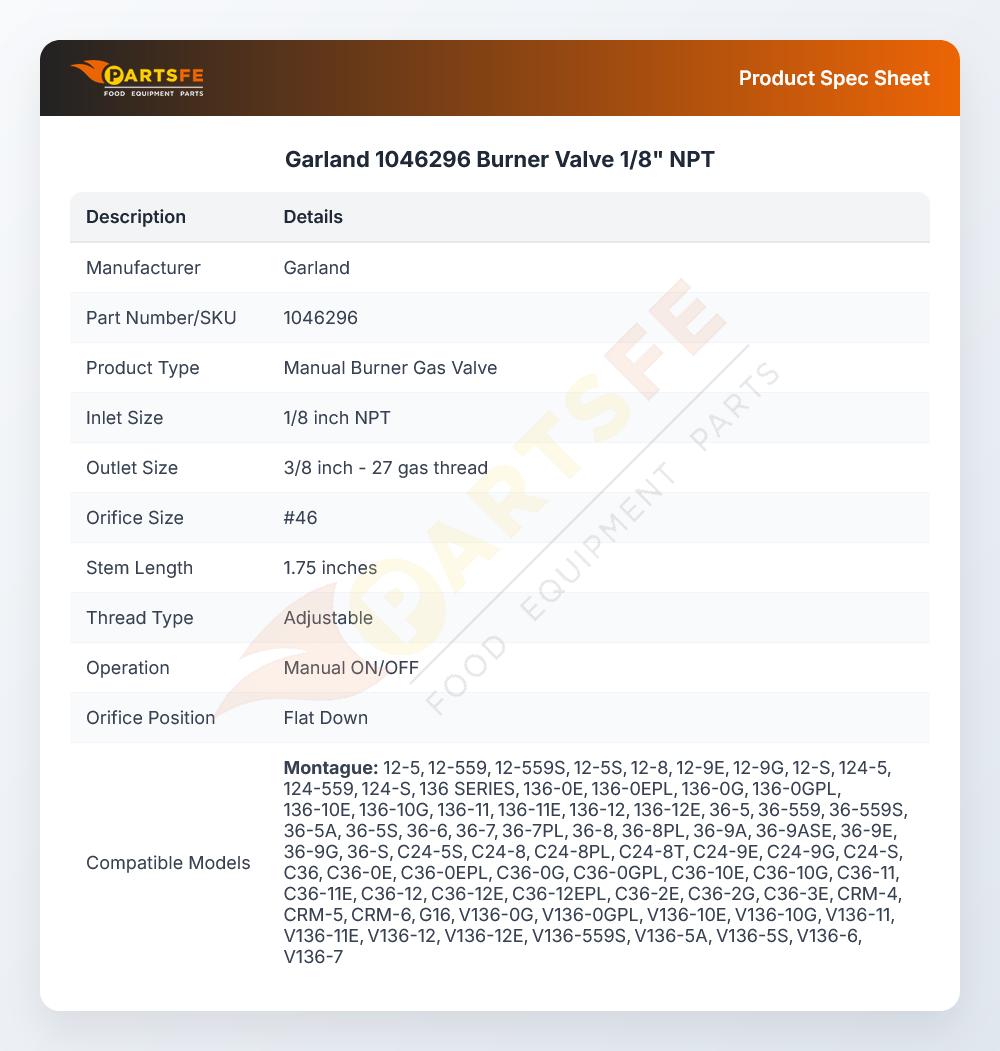

Specifications:

Attribute Details
Gas In 1/8" Npt, Gas Out 3/8"-27, #46 Hood Orifice & Point,
Adjustable, Stem 1-3/4" Long, Flat Down, On/Off,
For Lp Hood Orifice Use # 26-1080
Garland Range 40-(4,6,7), 43-(40,43,50,53),
44-(40,43,50,53), 45-40, 46-40R, 46-50, 47-(40,50).
Montague Broiler Series Uf, Ufs, Ufsc, Ufsm (After 10/91).
Grill 2436, 2436T, 2472, 2472T.
Oven 28Cbsf.
Range 2020S, Cr1-10, Sp2020. Series 136, V136.
Star Broiler, Grill
Hot Plate/Range 601Spr, 602, 602H, 804H

Description

The Garland 1046296 Burner Valve 1/8" NPT operates on the concept of controlling the amount of gas entering the flow of gas adjusted accordingly to provide ignition and to control the flames. The internal passage is opened or closed by turning the valve handle and regulates the quantity of gas to pass to the burner. This is a valve installed in the gas line before the burner such that it is safe to control fuel flow. Proper installation enables it to be coordinated with the burner system in the normal cooking processes.

More Information:

  • GARLAND:1046296 ,G4447-47A ,G4447-47F ,G4447-50F ,G4447-51F ,G4447-55F ,G4447-57F ,G4447-61F ,G4447-63F||MONTAGUE:01001-4 ,01003-0 ,04330-3 ,1001-4 ,1003-0 ,2405-8 ,2406-6 ,2408-2 ,2408-6 ,25549-1 ,28040-2 ,4328-1 ,4330-3 ,CB-5 ,CR1 ,G-8 ,MON04330-3 ,MON4330-3||STAR MFG:2V-Y7249 ,2V-Y8832 ,Y7249 ,Y8832 ,Y8838

Step1: Turn off gas supply and disconnect power before starting installation carefully.

Step2: Remove the old burner valve using proper wrench and clean threads carefully.

Step3: Apply thread sealant to NPT connections to prevent leaks.

Step4: Install new valve and tighten securely without over-tightening fittings.

Step5: Reconnect gas line, check for leaks using a soapy water solution.

Step6: Ensure proper ventilation and test burner before full operation.
