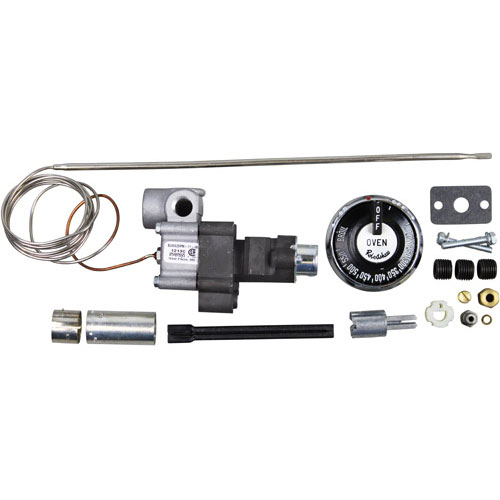

Imperial 106-3 Thermostat W/Dial 150°F-400°F 3/16" X 11-5/8" Bulb 48" CAP BJWA

SKU: 106-3 Brand:
Imperial
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Viewed From Rear See Addl Image "Outlet Positions"
[ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
[ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
Adapters, Gasket, Screws ] Wide Flange.
Black Dial W/ Adapter = # 22-1028 ]
Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
410,415,416,426).
Series Gra & Grax & Grc With S/N 1000000 To 1008568
&1017255 & After.
Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
Us Range Oven Series Performer Ii
Vulcan/Wolf Oven Series 59, 64.(70 After 11/74).

Description

The Imperial 106-3 Thermostat with Dial BJWA detects temperature changes through its 3/16-inch by 11-5/8-inch sensing bulb, while the 48-inch capillary tube transfers the temperature response to the control mechanism. The adjustable dial allows temperature selection from 150°F to 400°F, enabling the thermostat to cycle the heating system as the selected setting is reached. This part is installed behind the control panel of compatible commercial cooking equipment, with the sensing bulb positioned inside the heated compartment for continuous temperature monitoring during operation.
