Imperial 1120NAT Oven Spark Igniter Pilot Assembly

SKU: 1120NAT Brand:
Imperial
Availability:
In Stock
(0)
$48.51 Price reduced from $77.00
Save $28.49
Have a Question? +1 (866) 863-0907 / (630) 326-8602

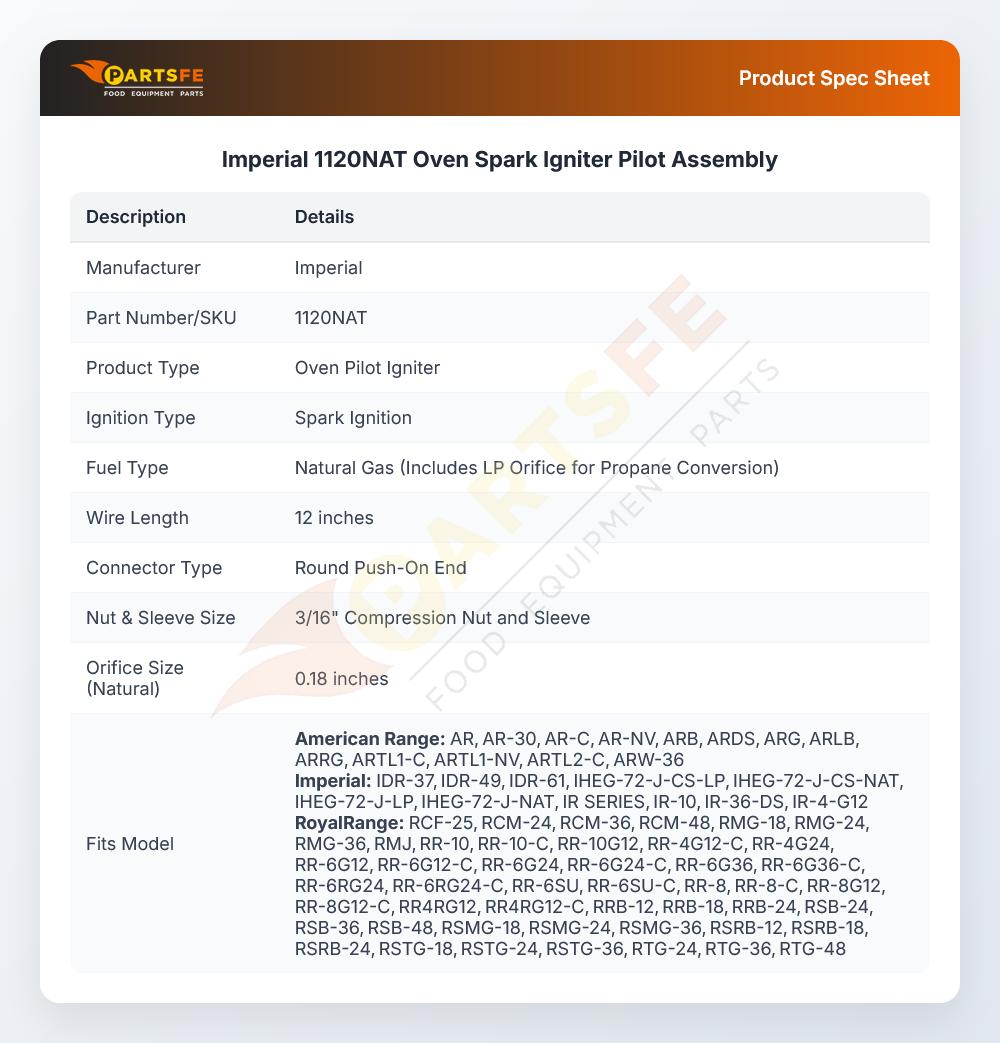

Specifications:

Attribute Details
Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
Includes Lp Orifice # 26-1554
Includes Nat Orifice # 26-1555
Use Spark Ignition Module "Sm2", # 44-1009
American Range Oven Model?
Dynamic Cooking Systems
Oven Range - Oven Section.
Imperial
Oven Series Ir W/Convection Oven.

Description

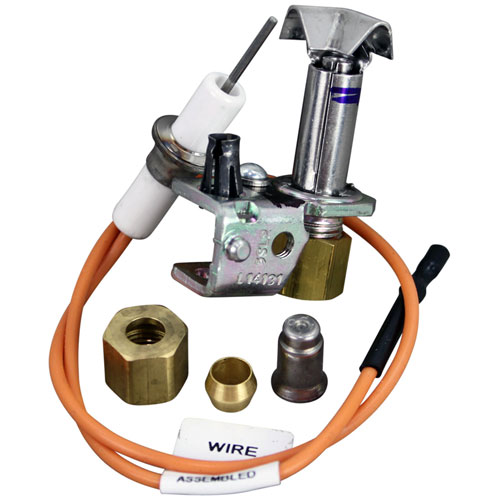

Imperial 1120NAT Spark Igniter Pilot Assembly NAT is an essential component is suitable for use in commercial ovens especially in oven ranges with convection ovens. This assembly consists of a 12” wire with round push-on terminal, 3/16” CCT nut and sleeve, natural gas and LP orifices. It operates through creating a spark that will in turn ignite the pilot flame to support safe and efficient lighting in your oven. Designed to work with the SM2 spark ignition module, this product increases dependability, decreases service requirements, and optimizes the oven. Perfect for any commercial kitchen that needs reliable and steady source of ignition.

More Information:

  • AMERICAN RANGE:10413 ,A11104 ,A11132 ,A11301 ,AMR10413 ,AMRA11104||IMPERIAL:1119 ,1120 ,1120LP ,1120NAT ,IMP1119 ,IMP1120 ,IMP1120LP ,IMP1120NAT||ROYAL RANGE:2209 ,2210

Step1: Turn off gas and electrical power to the oven before starting installation.

Step2: Remove old igniter/pilot assembly and disconnect wiring carefully from terminals.

Step3: Mount new assembly in same bracket position securely.

Step4: Reconnect wires securely and ensure proper alignment of sensor tip.

Step5: Restore power and gas supply, then test ignition cycle safely.

Step6: Check for gas leaks using soapy water solution; never use flame.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Imperial 1120NAT Spark Igniter Pilot Assembly?

    Regularly clean the igniter electrode and pilot assembly to remove carbon buildup and debris. Inspect wiring connections for looseness or corrosion. Ensure proper gas flow and alignment. Prevent moisture exposure and always disconnect power before servicing for safety.

  • What are common issues with the Imperial 1120NAT Spark Igniter Pilot Assembly?

    • Weak or intermittent pilot flame.
    • Carbon buildup on electrode.
    • Loose or damaged wiring connections.
    • Delayed ignition or no ignition.
