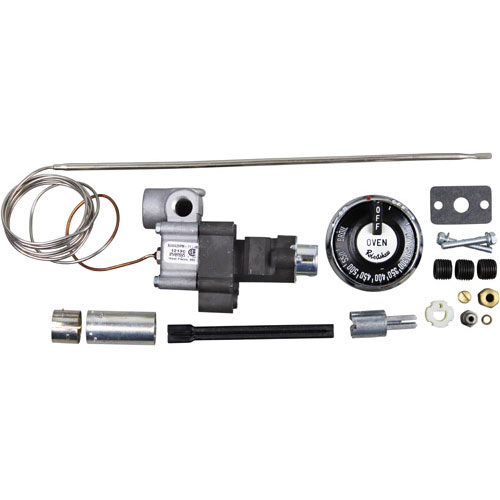

Franklin Chef 143210 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA

SKU: 143210 Brand:
Franklin Chef
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Viewed From Rear See Addl Image "Outlet Positions"
[ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
[ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
Adapters, Gasket, Screws ] Wide Flange.
Black Dial W/ Adapter = # 22-1028 ]
Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
410,415,416,426).
Series Gra & Grax & Grc With S/N 1000000 To 1008568
&1017255 & After.
Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
Us Range Oven Series Performer Ii
Vulcan/Wolf Oven Series 59, 64.(70 After 11/74).

Description

The Franklin Chef 143210 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA operates by sensing temperature changes through its capillary assembly and regulating the operation of connected heating parts accordingly. The internal mechanism responds to the selected dial setting by opening or closing electrical contacts as thermal conditions fluctuate within the appliance. This process supports the control sequence associated with maintaining the designated cooking conditions. The thermostat is installed in compatible commercial equipment, with the sensing bulb extending into the heated area while the dial assembly remains accessible for temperature selection and operational adjustments during use.
