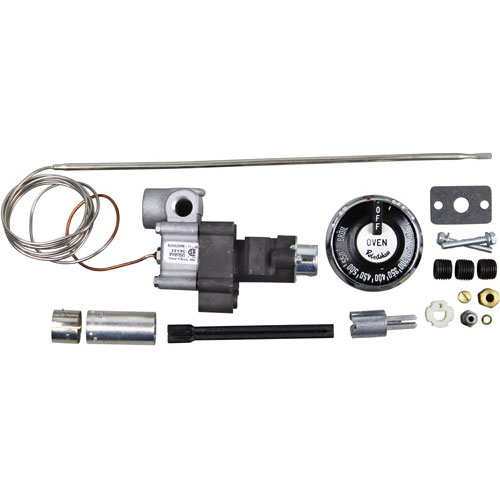

Franklin Chef 147907 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA

SKU: 147907 Brand:
Franklin Chef
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Viewed From Rear See Addl Image "Outlet Positions"
[ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
[ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
Adapters, Gasket, Screws ] Wide Flange.
Black Dial W/ Adapter = # 22-1028 ]
Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
410,415,416,426).
Series Gra & Grax & Grc With S/N 1000000 To 1008568
&1017255 & After.
Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
Us Range Oven Series Performer Ii
Vulcan/Wolf Oven Series 59, 64.(70 After 11/74).

Description

The Franklin Chef 147907 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA operates by detecting thermal variations through its sensing bulb and transmitting those changes to the internal control mechanism. Based on the dial-selected setting, the thermostat adjusts the status of connected electrical contacts to influence the heating cycle within the appliance. This process supports the regulation of temperature throughout different stages of equipment operation. The part is installed in compatible commercial cooking equipment, with the sensing assembly positioned within the heated area and the dial mounted in the control panel for operator adjustment.
