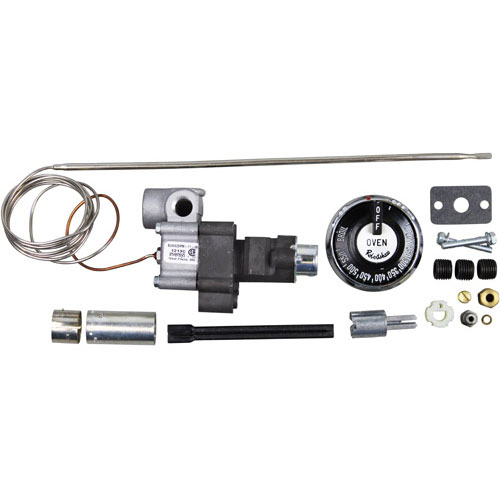

Franklin Chef 147912 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA

SKU: 147912 Brand:
Franklin Chef
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Viewed From Rear See Addl Image "Outlet Positions"
[ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
[ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
Adapters, Gasket, Screws ] Wide Flange.
Black Dial W/ Adapter = # 22-1028 ]
Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
410,415,416,426).
Series Gra & Grax & Grc With S/N 1000000 To 1008568
&1017255 & After.
Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
Us Range Oven Series Performer Ii
Vulcan/Wolf Oven Series 59, 64.(70 After 11/74).

Description

The Franklin Chef 147912 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP BJWA operates by monitoring heat conditions and responding to temperature fluctuations through an enclosed capillary sensing system. As the detected temperature changes, the thermostat actuates its switching mechanism to alter the operating state of connected heating parts according to the selected dial position. This interaction provides to the management of heat generation during appliance use. The thermostat is fitted within compatible foodservice equipment, where the sensing element extends into the controlled conditions while the adjustment dial remains externally accessible.

More Information:

Step1: Disconnect the appliance from the power supply before installation.

Step2: Remove the access panel to reach the existing thermostat.

Step3: Carefully disconnect the thermostat wiring and remove the sensing bulb/capillary tube.

Step4: Install the new thermostat in the same position and secure it properly.

Step5: Reconnect the wiring according to the equipment diagram.

Step6: Route the capillary tube carefully to avoid kinks or damage.

Step7: Reinstall the access panel, restore power, and test temperature operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Franklin Chef 147912 Thermostat?

    Check the thermostat for accurate temperature control in the appliance. Clean surrounding areas to prevent buildup interference. Inspect wiring connections and disconnect power before servicing to ensure secure and accurate operation.

  • What are the common issues with the Franklin Chef 147912 Thermostat?

    • The temperature fluctuates during operation.
    • Appliance not reaching set temperature.
    • Delayed response to adjustments.
    • Incorrect readings are affecting performance.
    • Unit overheating unexpectedly.
