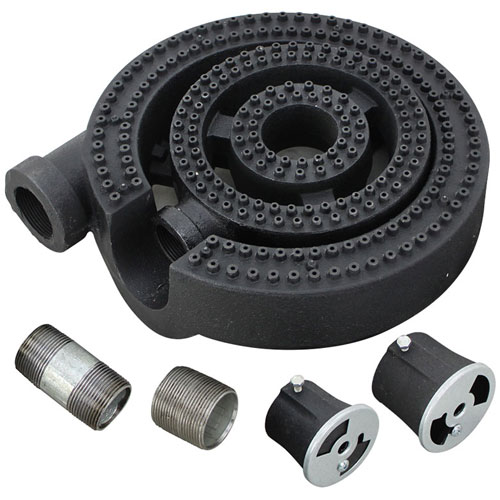

Imperial 15004 Range 3-Ring Cast Iron Burner Assembly W/pipe Nipples Air Shutters 12" DIA

SKU: 15004 Brand:
Imperial
Availability:
In Stock
(0)
$286.65 Price reduced from $706.02
Save $419.37
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
3 Ring Cast Iron Burner Assy
12" Dia, 90,000 Btu
Now Complete W/Pipe Nipples.
Air Shutters Are Both Same Size,
Single Air Shutter With 2 Windows, 2.848" Id, .467" Hole.
For Air Shutter Only Use # 26-2729
Dynamic Cooking Systems
Imperial Range Ispa, Tempura

Description

Imperial 15004 3-Ring Cast Iron Burner Assembly with pipe nipples and air shutters 12” diameter is a Range burner that is efficient in performance. The material used is cast iron for so it distributes the heat properly to all the various areas of the product. This design of three rings provides a wider flame coverage suitable for high heat usage. The air shutters are also adjustable in order to control the flame for different cooking requirements. This burner improves on the heat delivery, standard of control, use of fuel, and is therefore more advisable for professional culinary use in restaurants.

More Information:

  • DYNAMIC COOKING SYSTEMS:12027 ,12028||IMPERIAL:15000 ,15003 ,15004 ,2103

Step1: Turn off gas supply and disconnect power before beginning installation to ensure safety.

Step2: Position burner assembly on range base and align mounting points securely.

Step3: Attach pipe nipples using approved sealant, tightening fittings to prevent leaks.

Step4: Adjust air shutters for proper flame, reconnect gas, then test all joints for leaks.

Step5: Do not operate burner until leak test is completed and stable blue flame is confirmed.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Imperial 15004 Burner Assembly?

    Clean the burner assembly regularly to prevent grease and debris buildup that can block airflow. Inspect air shutters and pipe nipples for secure fitting and corrosion. Proper maintenance ensures efficient combustion, consistent heat, and safe operation during cooking use.

  • What are common issues with the Imperial 15004 Burner Assembly?

    • Uneven flame distribution across burner rings.
    • Clogged air shutters restricting airflow.
    • Burner ports blockage causing weak flame.
    • Corrosion of cast iron components.
    • Loose pipe nipple connections leading to gas leaks.
    • Ignition delay or failure to light.
