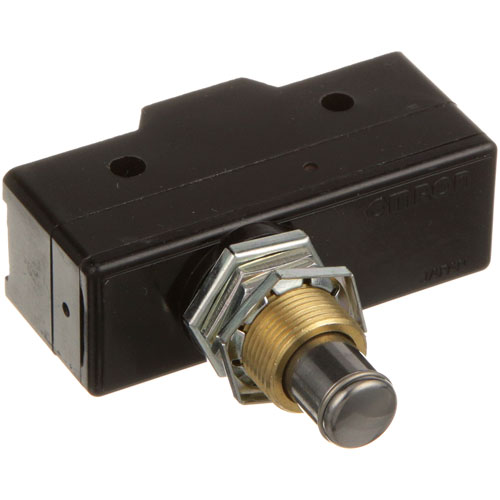

Duke 153114 Door Switch Micro Push Button W/ 1" MT CTRS, On/Off

SKU: 153114 Brand:
Duke
Availability:
In Stock
(0)
$96.80 Price reduced from $246.71
Save $149.91
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Micro Push Button Momentary On/Off Switch, Spdt
20 Amp, 125/250/480 Volt, Mount Hole Ctrs 1"
Bakers Pride
Duke E-101, 59-1Ev
Pitco Fryer Electric Units With Suffix "C", "Cs", "S",
E7, E7B, E12, E14, E14B, E14X, E18, E18B, E24, E36,

Description

The Duke 153114 Door Switch Micro Push Button is a ON/OFF switch for SPDT Single Pole Double Throw applications. It can handle 20A of power at 125/250/480V, with 1” mounting hole centers, and is suitable for Baker’s Pride and Pitco fryers models with suffix “C”, “CS”, and “S”. This switch is useful in switching power to electric units it provides an easy and effective manner of operating apparatus. It is made of a robust material that makes it to be long lasting, and it is an exact replacement part for certain fryer models.

More Information:

  • APW WYOTT:1300240||BAKERS PRIDE:1300240 ,AS-1300240 ,BKPM1102X ,M1102A ,M1102X||DUKE:153114||GARLAND:227152||HOBART:00-087711-068-1 ,00-087711-153-1 ,00-87711-153-1 ,00-87711-68-1 ,087711-68-1 ,87711-153-1 ,87711-68-1||PITCO:P5047170

Step1: Disconnect power supply to the system to prevent electric shock.

Step2: Locate the faulty door switch and remove the access panel if required.

Step3: Disconnect wires from the old switch, noting their positions.

Step4: Unscrew or unclip the old switch and remove it.

Step5: Install the new switch securely in place.

Step6: Reconnect wires correctly and restore power to test functionality.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Duke 153114 Door Switch?

    Inspect the switch periodically to verify smooth activation when the door closes. Remove any dirt or grease buildup using a dry or lightly damp cloth. Confirm wiring remains intact and firmly connected. Routine attention supports maintain accurate operation and prevents unexpected interruptions.

  • What are common issues with the Duke 153114 Door Switch?

    • Unit not responding when the door is shut.
    • Irregular or inconsistent switch engagement.
    • Internal contact wear leading to poor conductivity.
    • Misaligned door affecting proper switch activation.
