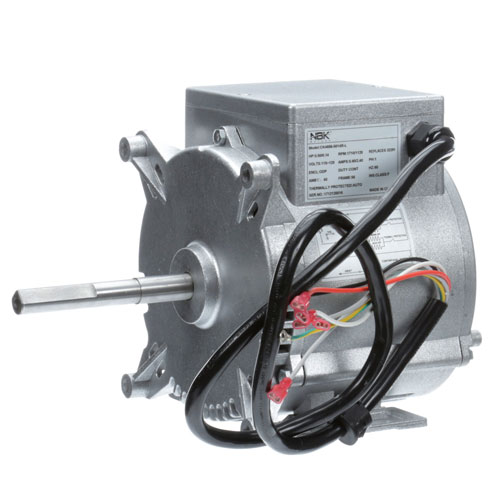

Blodgett 15396 Oven Blower Motor 100-115V, 1/2HP, 1PH

SKU: 15396 Brand:
Blodgett
Availability:
In Stock
(0)
$707.51 Price reduced from $1,418.43
Save $710.92
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Old Style
Blower Motor, 2 Speed
[ 100-115V, ] [ 1/3Hp, ] [1P ] [1725/1140 RPM ]
[4.3-4.2/2.2-2.2A ] [Cw Rotation ] [ J56Z Frame ]
[ 5/8 X 3-1/4 Shaft ]
Does Not Come With External Mount Capacitor, # 38-1262
New Style
[ 115-120 V ] [ 1/2 Hp ] [ 1P ] [ 1710/1120 RPM ] [ 60 Hz ]
[ 5.9/2.7 A ] [ Cw Rotation ] [ 5/8 X 3-1/4 Shaft ][ 2/S ]
Blodgett Blower Wheel A4236,Mb-180, # 26-3047
Blower Wheel For Shog Units Made After 11-05-05 And
Blodgett Oven Dfg 100,200, Zephaire0-G, Shog N/S(Shig) #
26-1511 Blower Wheel

Description

The Blodgett 15396 Oven Blower Motor is an efficient 1/2 HP motor that can be used for operations in a high-usage commercial kitchen. This motor operates on 100-115V and has dual speed to allow fine control of the airflow. Older models rotate the fan at 1725/1140 RPM, and the new models at 1710/1120 RPM. There is a J56Z frame motor with a 5/8” x 3-1/4” shaft that only rotates in a clockwise direction for better performance. Its main features include features such as heavy-duty specifications and adjustable high/low controls for improving efficiency in commercial ovens, fryers, and other related appliances.

More Information:

  • BLODGETT:15396 ,20000 ,32256 ,32291 ,BL32291

Step1: Disconnect power supply to the oven to prevent electrical shock.

Step2: Remove access panel to reach the existing blower motor.

Step3: Label and disconnect wiring from the old motor.

Step4: Unbolt and carefully remove the old motor assembly.

Step5: Install the new motor, securing it with mounting hardware.

Step6: Reconnect wiring according to labels.

Step7: Replace panel, restore power, and test operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Blodgett 15396 Blower Motor?

    Keep the blower motor clean and free of grease buildup to maintain proper airflow and cooling. Regularly inspect electrical connections, mounting bolts, and fan alignment for tightness and stability. Check bearings for wear or noise and ensure adequate ventilation to prevent overheating during continuous oven operation.

  • How do I install the Blodgett 15396 Blower Motor?

    • Disconnect power to the oven.
    • Remove the rear or service access panel to reach the blower housing.
    • Label and disconnect wiring from the existing motor.
    • Remove mounting screws and carefully slide out the old motor.
    • Install the new Blodgett 15396 motor and secure mounting hardware.
    • Reconnect wiring to matching terminals and ensure fan rotation direction is correct.
    • Reinstall covers and restore power to verify airflow and noise level.

  • What are common issues with the Blodgett 15396 Blower Motor?

    • Motor overheating due to blocked airflow.
    • Unusual noise from worn bearings.
    • Reduced airflow or weak circulation.
    • Electrical connection failure or intermittent operation.
    • Fan imbalance causing vibration.
    • Motor not starting or stalling.
