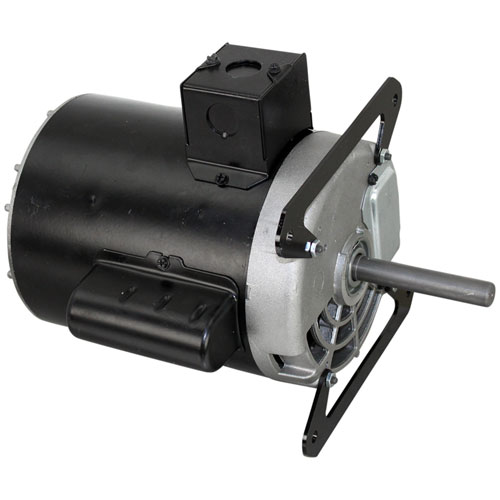

Garland 1686711 0.75/0.21HP 2-Speed Blower Motor 1725/1140 RPM 115V/1PH
Specifications:
| Attribute | Details |
|---|---|
| Blower Motor, 2 Speed. | |
| [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ] | |
| [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ] | |
| [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ] | |
| Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are | |
| 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16" | |
| Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are | |
| Spaced On 4" Centers Bracket To Bracket And On Each Bracket | |
| They Are Spaced 4.097" | |
| Garland Blower Wheel # 26-1464 | |
| Us Range Blower Wheel # 26-1464 | |
| Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,. | |
| Tim Ortons Spritzer, | |
| Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg, | |
| Sumg-100 |
Description
The Garland 1686711 Oven 2-Speed Blower Motor is a high-performance motor intended for use in kitchen equipment. This motor runs at two speeds; 1725 and 1140 RPM to ensure the fan is always at the right speed to provide the right airflow for even cooking. It has a power rating of 0.75 HP and a voltage of 115V and it guarantees efficiency when operating even with minimal power it is designed to be very strong and long-lasting in such conditions and is an important part of equipment for commercial use.
More Information:
- GARLAND:1686701 ,1686711 ,9001901 ,1686701 ,1686711
Step1: Disconnect power to the unit to avoid electrical hazards.
Step2: Open the motor compartment and locate the blower assembly.
Step3: Label and disconnect wires from the existing motor.
Step4: Loosen mounting bolts and remove the old motor.
Step5: Install the new motor, align properly, and secure bolts.
Step6: Reconnect wiring, close the panel, restore power, and verify speeds.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
-
Can I install the Garland motor myself, or do I need a professional technician?
Installation can be performed by a qualified technician or by homeowners with basic DIY skills. The motor's design and installation process are user-friendly, and it comes with clear instructions to guide you through the process.
-
How to determine if my old blower motor needs replacement?
If you notice decreased blower efficiency, unusual noises, or if your range's performance is not up to par, it might be time to consider replacing the motor.
-
What maintenance is required for the Garland 1686711 Blower Motor?
Periodically inspect the motor for dust or debris buildup around the fan and housing. Verify wiring connections are secure and speed switch functions correctly. Lubricate bearings if applicable and observe for unusual vibrations during operation.
-
What are common issues with the Garland 1686711 Blower Motor?
- Motor runs at only one speed.
- Excessive vibration during operation.
- Motor fails to start at low speed.
- Unusual buzzing sounds.
