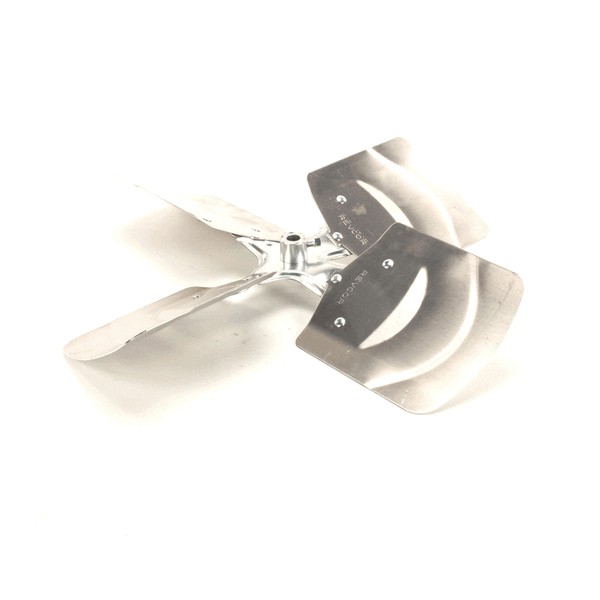

Scotsman 18-8816-01 Ice Machine Fan Blade 18" OD CWSE

SKU: 18-8816-01 1-18-8816-01 Brand:
Scotsman
Availability:
In Stock
(0)
$159.54 Price reduced from $180.95
Save $21.41
Have a Question? +1 (866) 863-0907

Specifications:

  • Fan Blade Cw Rotation, Inner Diameter: 1/2", Inner
  • Diameter: 13Mm, Material: Aluminum, Note: 4-Blades, Outer
  • Diameter: 18", Outer Diameter: 457Mm, Rotation: Clockwise
  • From Shaft End, Weight: 1.4Lb,

Description

The Scotsman 18-8816-01 Ice Machine Fan Blade spins around to circulate air in the appliance to ensure a steady flow of air over cooling parts. It is directly connected to the fan motor shaft, and it can operate smoothly as it passes air through the condenser and evaporator sections. This is designed to be installed in the fan assembly of the machine, fitting into the allocated place, which allows the machine to have the right airflow and be compatible with other parts of the machine.

Dimensions:

  • Weight: 1 lbs
  • Length: 1 in
  • Height: 1 in
  • Width: 1 in

This Part Fits the Following Models

95 models
Scotsman C0322 Scotsman C0322MA-1 Scotsman C0322MW-1 Scotsman C0322SA-1 Scotsman C0322SW-1 Scotsman C0330 Scotsman C0330MA-1 Scotsman C0330MW-1 Scotsman C0330SA-1 Scotsman C0330SW-1 Scotsman C0522 Scotsman C0522MA-1 Scotsman C0522MW-1 Scotsman C0522SA-1 Scotsman C0522SW-1 Scotsman C0530 Scotsman C0530MA-1 Scotsman C0530MR-1A Scotsman C0530MW-1 Scotsman C0530SA-1 Scotsman C0530SW-1 Scotsman C0630 Scotsman C0630M Scotsman C0630MA-32 Scotsman C0630MA-32A Scotsman C0630S Scotsman C0630SA- Scotsman C0630SA-32 Scotsman C0722 Scotsman C0830 Scotsman C0830M Scotsman C0830MA-32 Scotsman C0830S Scotsman C0830SA-32 Scotsman C1030 Scotsman C1030M Scotsman C1030MA-32 Scotsman C1030S Scotsman C1030SA-32 Scotsman C1030SR-3 Scotsman C1448 Scotsman C1848 Scotsman C2148 Scotsman CME Scotsman CME1056R Scotsman CME1356R Scotsman CME1386 Scotsman CME1656R Scotsman CME1686 Scotsman CME456R Scotsman CME686 Scotsman CME810 Scotsman CP1086 Scotsman CP1316 Scotsman CP686 Scotsman CP886 Scotsman ECC1410 Scotsman ECLIPSE Scotsman EH130 Scotsman ERC Series Scotsman ERC1086 Scotsman ERC111 Scotsman ERC211 Scotsman ERC311 Scotsman ERC311-32A Scotsman ERC411 Scotsman ERC680 Scotsman F0522 Scotsman F0522A-1 Scotsman F0522W-1 Scotsman F0822 Scotsman F0822A-1 Scotsman F0822A-32 Scotsman F0822W-1 Scotsman F1222 Scotsman F1222A-32 Scotsman F1522 Scotsman F1522A-32 Scotsman N0422 Scotsman N0422A-1 Scotsman N0422W-1 Scotsman N0622 Scotsman N0622A-1 Scotsman N0622W-1 Scotsman N0922 Scotsman N0922A-32 Scotsman N1322 Scotsman N1322A-32 Scotsman NS0622R-1 Scotsman NS0922A-1 Scotsman NS0922R-32 Scotsman NS0922W-32 Scotsman NS1322A-32 Scotsman NS1322R-32 Scotsman NS1322W-32
Showing of 95.0

SCOTSMAN:

SC18-8816-01

Step1: Turn off power and unplug unit for safety.

Step2: Remove protective grille and old fan blade carefully.

Step3: Align new blade onto motor shaft, matching rotation direction.

Step4: Secure using original fastener or set screw tightly.

Step5: Reinstall grille and restore power, test for smooth operation.

Step6: Wear gloves and ensure blades are fully stopped before handling.

  • What maintenance is required for the Scotsman 18-8816-01 Fan Blade?

    Inspect the fan blade for dust buildup and clean it periodically to maintain balance and airflow. Ensure mounting hardware remains tight and aligned. Check for cracks or wear and replace if vibration or noise increases. Handle carefully during service.

  • What are common issues with the Scotsman 18-8816-01 Fan Blade?

    • Imbalance causing vibration.
    • Bent or cracked blades.
    • Loose hub or mounting hardware.
    • Reduced airflow from dirt buildup.
    • Motor strain and unusual noise.
    • Warped blade pitch.
