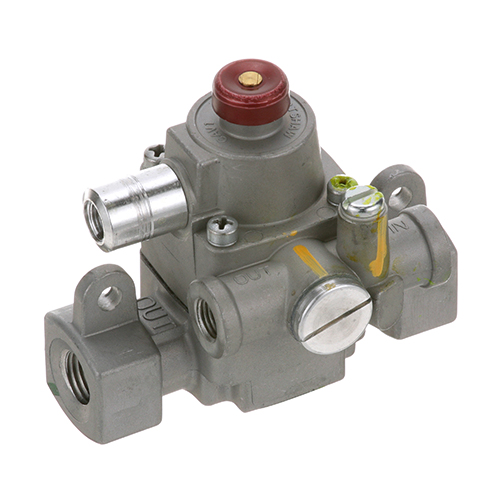

ROYAL RANGE 2174 Oven Pilot Safety Valve

SKU: 2174 Brand:
ROYAL RANGE
Availability:
In Stock
(0)
$223.91 Price reduced from $345.00
Save $121.09
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Description

The ROYAL RANGE 2174 Oven Pilot Safety Valve regulates gas flow to the assembly using a thermally responsive control mechanism. That opens and closes based on pilot flame presence, and it monitors heat from the pilot and adjusts internal openings to maintain ignition readiness while responding to flame interruption signals for shutdown control. It is set up within the oven gas control line between the pilot tubing and main valve assembly for integration into commercial oven systems in commercial kitchen equipment systems.

More Information:

Manufacturer Name: Royal Range
Product Number: 2174
OEM Part Number: 2174
Product Description: Pilot Safety Valve,Ts11j
Similar Models:NONE
Dimensions:
Length:3.85in/9.78cm
Width:3.75in/9.52cm
Height:2.5in/6.35cm
Weight:1.2lbs/544.31g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from {{config path='general/store_information/name'}}!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at {{config path='general/store_information/phone'}} or {{config path='trans_email/ident_support/email'}}

  • ROYAL RANGE:2174

Step1: Turn off the gas supply and disconnect the oven from power.

Step2: Remove the oven access panel to reach the existing pilot valve.

Step3: Disconnect the gas line and wiring from the old valve carefully.

Step4: Remove the old pilot safety valve by unscrewing its mounting hardware.

Step5: Install the new valve, securing it in place.

Step6: Reconnect the gas line and wiring exactly as before.

Step7: Restore gas and power, then test for proper ignition and no leaks.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the ROYAL RANGE 2174 Pilot Safety Valve?

    Regularly inspect the oven pilot safety valve for soot, dirt, or corrosion. Clean the orifice and ensure the valve moves freely. Test the valve periodically to confirm proper operation and prevent unsecured gas flow or ignition issues.

  • What are the common issues with the ROYAL RANGE 2174 Pilot Safety Valve?

    • Valve sticking due to debris buildup.
    • Pilot light not igniting properly.
    • Gas leaks from worn seals.
    • Inconsistent flame or pressure fluctuations.
