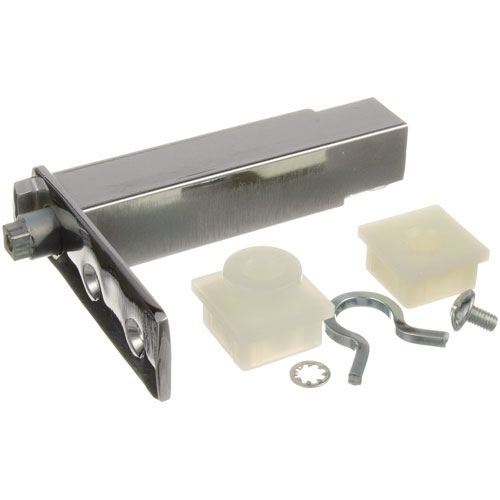

Glenco 2HAH0700-001 Concealed Cartridge Door Hinge

SKU: 2HAH0700-001 Brand:
Glenco
Availability:
In Stock
(0)
$14.02 Price reduced from $53.09
Save $39.07
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Power Cartridge, Top 3" Od W/ 1" Ctrs Mount Holes
Body 3-13/16" Long
Used Wih Left Or Right Mounting Brackets
Series Chg R56, Standard Kiel 2856,
Beverage Air Cfg24, Cfg36, Cfg48, Cfg74, Crg24, Crg36,
Crg48, Crg74, Kf12, Kf24, Kf36, Kf48, Kf74, Kr12, Kr24,
Kr36, Kr48, Kr74, Ucr27
Norlake Refrigerator Nr(211,482,763), Lr(152,192)
Freezer Nf(211,482,763), Zf081Sms-22 (Dq Topping Freezer)
T-23-2, Tssu 36-12Mb, Tssu 48-18Mb, Tssu Series, Tssu-48,
Tssu-48-8-47, Tuc-48, Tuc-60, Tuc27F, Twt-48, Twt-60, Twtf
Traulsen Cu27, Cu48, Cu60, G12000, G12001, Tu048Qc

Description

The Glenco 2HAH0700-001 Concealed Cartridge Door Hinge is a system that regulates the movement of the door with the assistance of an internal spring assembly that regulates the force used in the process of door opening and closing. The cartridge mechanism controls the movement of the door by following a fixed pivot. This hinge is fitted in the door frame either on the top or bottom of the cabinet opening and is not visible. It is intended to fit on the doors of commercial equipment, and it aligns the door with the frame structure.

More Information:

  • BEVERAGE AIR:00C34-030D-01 ,00C34030D01 ,401-216A-01 ,401-454A-01 ,BEV401-216A-01 ,BEV401-454A-01||CHG:A1808 ,CHGR56-1010 ,GR56-1010 ,R56-1010||HOBART:00-430797 ,430797||HOSHIZAKI:3A6258-01 ,HOS3A6258-01||KAIRAK:282543||KROWNE:BC-591||MASTERBILT:35-01866 ,MBN015124 ,N015124||NORLAKE:015124||RANDELL:HD HNG0101 ,HDHNG0101||SILVER KING:43425 ,99467 ,SVK99467||STANDARD KEIL:2856-1010-1000||STAR MFG:SP700-1||STERO:2HAH0700-001||TRAULSEN:282543 ,TR282543||VICTORY:50866401||VULCAN HART:00-430797 ,430797 ,431047-1 ,436012-1 ,VH00-430797 ,VH430797 ,VH431047-1 ,VH436012-1

Step1: Disconnect power to the equipment and support the door to prevent sudden movement.

Step2: Remove the worn hinge and inspect the mounting brackets for damage.

Step3: Position the new concealed hinge in the mounting location, aligning the mounting holes.

Step4: Secure the hinge with the original fasteners and tighten evenly.

Step5: Verify proper door alignment and smooth self-closing operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Glenco 2HAH0700-001 Hinge?

    Clean the hinge and the surrounding cabinet area regularly to remove dust and debris. Lubricate moving parts lightly to ensure smooth concealed operation. Check screws and cartridge alignment and tighten if needed.

  • What are common issues with the Glenco 2HAH0700-001 Hinge?

    • Misalignment is causing uneven door closure.
    • Stiff or noisy hinge movement.
    • Loose mounting screws or instability.
    • Cartridge wear is leading to inconsistent operation.
    • Door sag or uneven alignment over time.
    • Reduced smoothness in the concealed mechanism.
