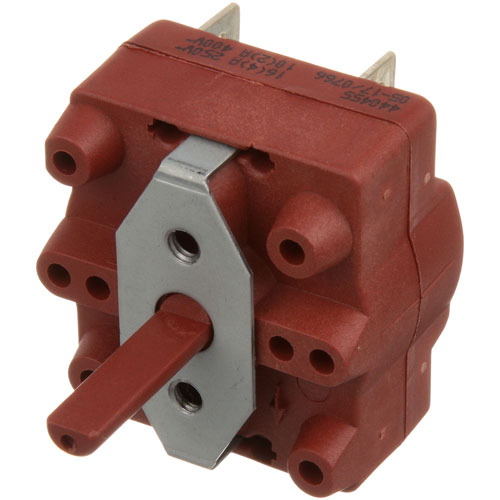

Duke 153460 Oven 3 Heat Rotary Switch W/ 6 Term D Stem & .150" Flat Down

SKU: 153460 Brand:
Duke
Availability:
In Stock
(0)
$175.56 Price reduced from $346.00
Save $170.44
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Rotary Switch, 3 Heat, 20A-120-240V, 6 Term,
D Stem .150" Flat Down
For Pointer Knob Use # 22-1106
Duke 6/13 Oven E Series
Tomlinson Glenray Kettle Use Knob # 22-1291

Description

The 153460 3 Heat Rotary Switch is used in oven and kettle applications, has a 6 terminal and has a .150” flat down D stem. This switch enables the users to regulate three heat settings with much ease and is capable of handling up to 20A at 120-240V. It can be used with Duke 6/13 Oven E Series and Tomlinson kettles it needs specific knobs such as # 22-1106 for ovens or # 22-1291 for kettles. This long-life rotary switch improves temperature stability and can be fitted in the cooking equipment.

More Information:

  • DUKE:153460 ,600541 ,DUK153460

Step1: Turn off and unplug the oven before beginning installation.

Step2: Open the control panel to access the switch assembly.

Step3: Disconnect all wiring connections carefully.

Step4: Remove the old rotary switch from its mount.

Step5: Install the new switch in the same position.

Step6: Reconnect wiring correctly.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Duke 153460 Heat Rotary Switch?

    Inspect the rotary switch for smooth operation and secure mounting. Check terminals for corrosion or loose connections. Rotate through all heat settings periodically to verify consistent switching and proper temperature control in the oven.

  • What are common issues with the Duke 153460 Heat Rotary Switch?

    • Switch not activating all heat settings.
    • Excessive heat at one setting.
    • Switch sticking during rotation.
    • Clicking or sparking when turning.

  • What maintenance is required for the Duke 153460 Rotary Switch?

    Check the oven rotary switch for smooth operation and ensure there’s no excessive buildup of grease or debris around the knob and contacts. Gently clean the exterior with a dry cloth and inspect internal terminals for corrosion or loose connections. Always disconnect power before servicing or replacing electrical controls.

  • What are the common issues with the Duke 153460 Rotary Switch?

    • Stiff or difficult rotation due to dirt or wear.
    • Intermittent electrical contact or loss of signal.
    • Worn or corroded internal terminals.
    • Switch failing to connect specific positions properly.
    • Loose mounting is causing inaccurate operation.
