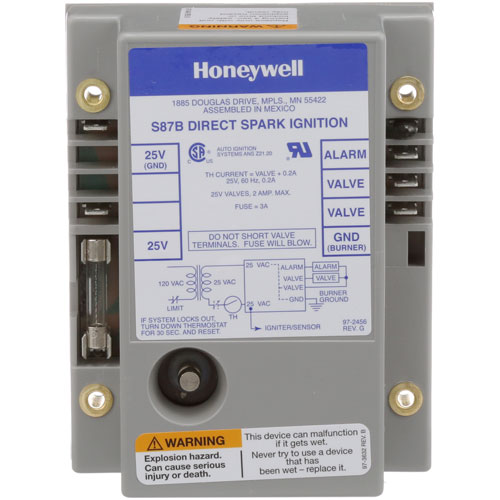

Cleveland 3546 Steamer Direct Spark Ignition Module/ 4 Sec Lockout Single Electrode 25V

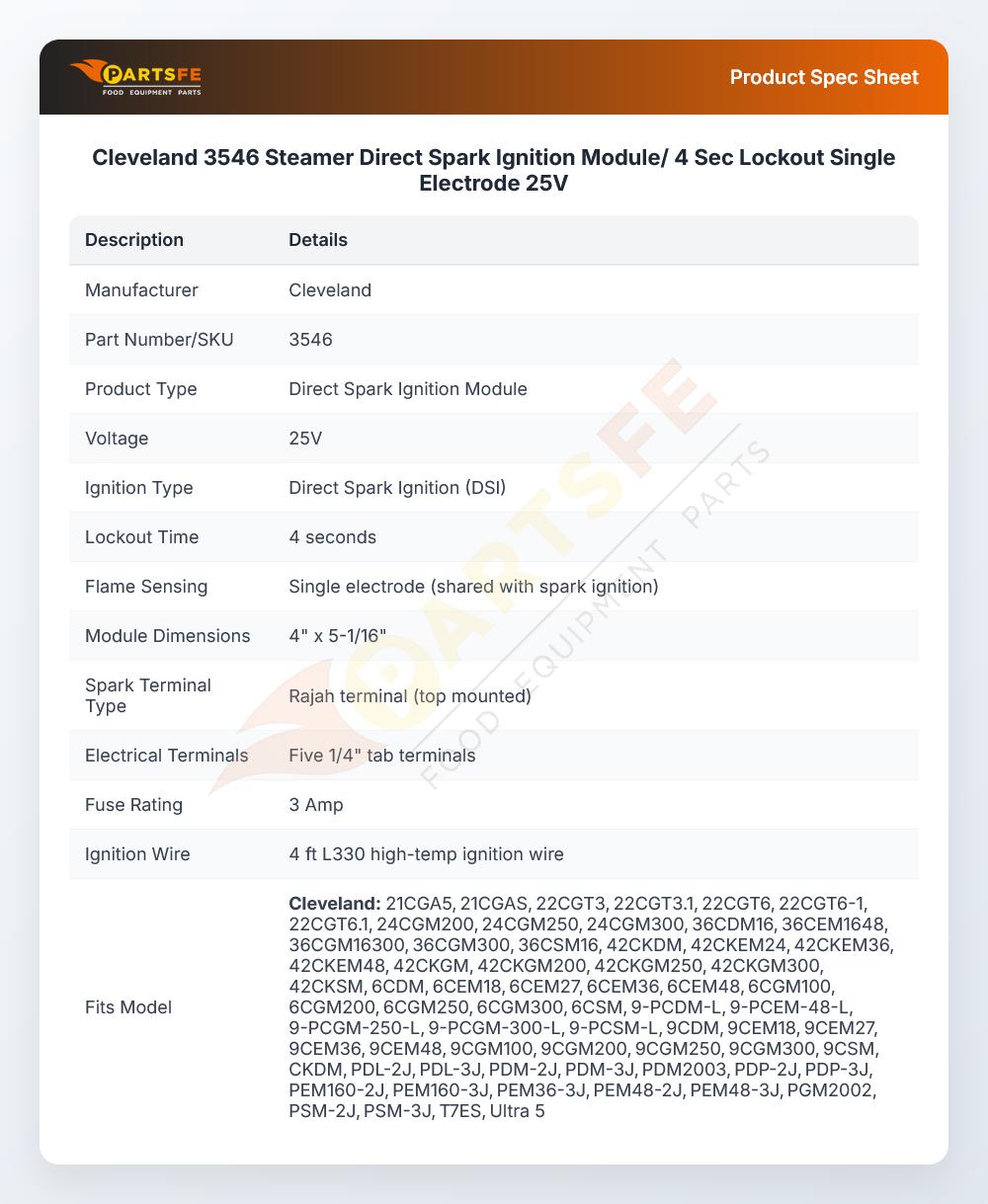

Specifications:
| Attribute | Details |
|---|---|
| Honeywell | |
| 25V Direct Spark Ignition Module, 4 Sec Lockout, | |
| Uses Single Electrode For Flame Sensing And Spark Ignition | |
| 4" X 5-1/16", Rajah Spark Terminal On Top. | |
| 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050) | |
| Cleveland Skillet T7Es. | |
| Steamer Convection Steamer | 9-Pcdm-L, 9-Pcem-48-L, |
| 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L, | |
| Gas Steam Generators | 2 Probe Type Units (Large & Small). |
| Vulcan Hart Fryer Series | Ccfd. |
Description
More Information:
- CLEVELAND:3546 ,CLE03546 ,CLE3546||HOBART:00-416011-00001 ,116011-1 ,416011-00001 ,416011-1||VULCAN HART:00-416011-00001 ,116011-1 ,416011-00001 ,416011-1
Step1: Shut off the gas and electrical supplies to the appliance to prevent hazards.
Step2: Open the control compartment to access the module.
Step3: Label and disconnect all wire connections.
Step4: Remove the mounting screws and the old ignition module.
Step5: Install the new module in the same orientation.
Step6: Reconnect wires following the wiring diagram.
Step7: Secure all connections and close the panel.
Step8: Restore gas and power and test the ignition sequence.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
-
What maintenance is required for the Cleveland 3546 Direct Spark Ignition Module?
Inspect the module for dust, grease, or moisture buildup that may affect performance. Ensure all wiring connections are tight and corrosion-free. Keep the steamer dry and protected from heat exposure. Handle carefully to avoid damaging sensitive internal electronic components.
-
What are the common issues with the Cleveland 3546 Direct Spark Ignition Module?
- Failure to generate a spark during the ignition cycle.
- Intermittent ignition is causing delayed startup.
- Moisture or corrosion disrupts electrical signals.
- Internal component failure leading to ignition lockout.
