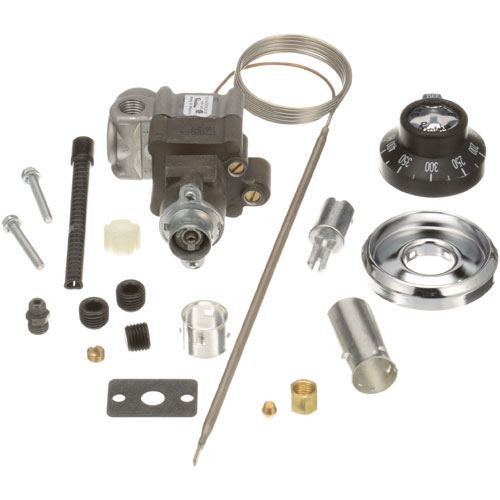

Jade Range 46101 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA

SKU: 46101 Brand:
Jade Range
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

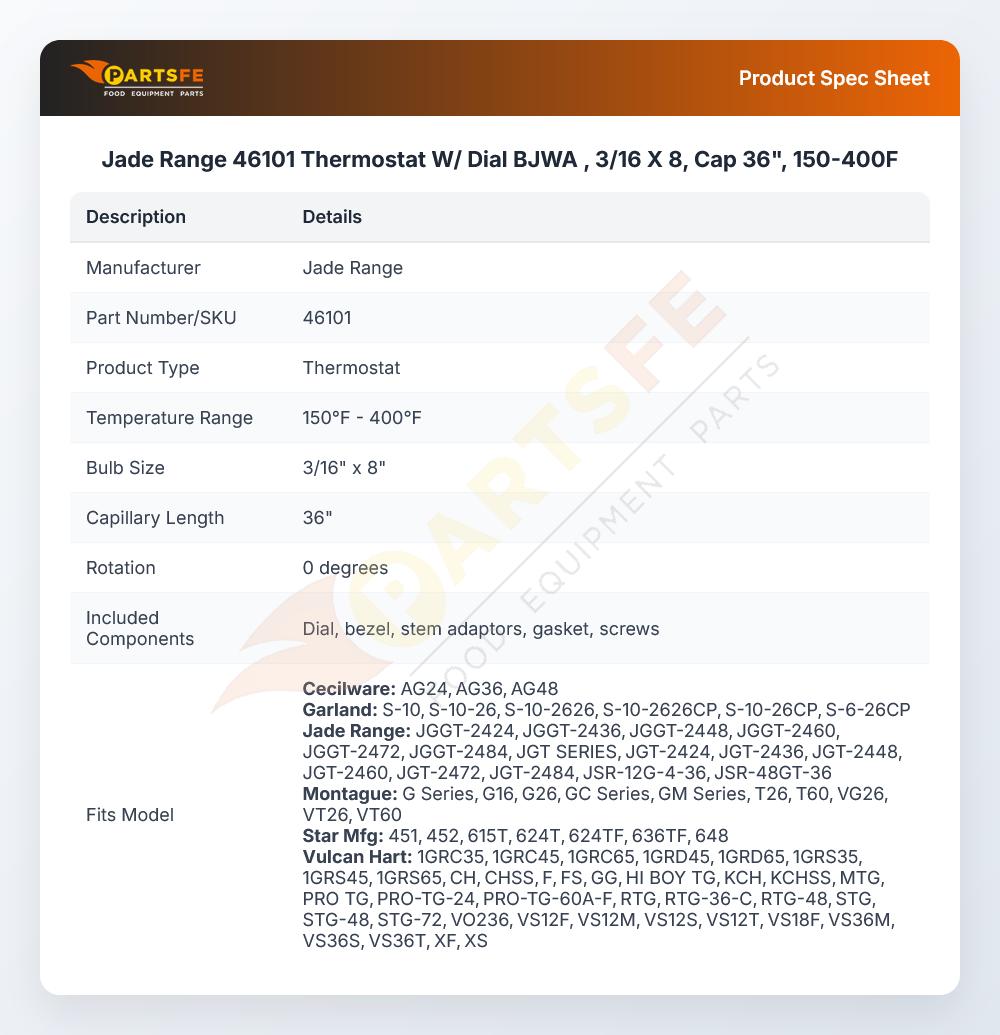

Specifications:

Attribute Details
Viewed From Rear See "Bj Outlet Positions"
W/ By-Pass Adj At Top & Gas Inlet Down
[ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
[ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
[Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
Dial = # 22-1036 Off-Lo-150-400-Hi ]
Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
Dynamic Cooking Systems Griddle
Cecilware Grill Before 1/86 Ag-(24,36,48).
Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
Jade Series Jsr
Montague Griddle
Southbend Griddle Series Sg

Description

The Jade Range 46101 Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA controls temperature by detecting thermal conditions through its sensing assembly and responding through an internal switching mechanism. When the sensed temperature deviates from the set point on the dial, the thermostat changes the state of connected electrical circuits to manage heating output. This action supports regulated temperature behavior during cooking operations. The part is installed in compatible commercial range equipment, with the sensing bulb placed in the heated area and the dial mounted on the control interface for operator adjustment.

More Information:

  • BLOOMFIELD:2T-39282||CECILWARE:GML032 ,GML032A ,GML032F ,L032 ,L032A ,L032F ,L032T||DYNAMIC COOKING SYSTEMS:55764-03 ,DCS55764-03||GARLAND:227000 ,227000-1||GRINDMASTER:L032A ,L032F ,L032T||HOBART:00-418573-000G1 ,00-723257 ,00-723258 ,00-802116-00001 ,00-920028 ,13523 ,19362 ,2116 ,418573-000G1 ,418573-G1 ,713523 ,723257 ,723258 ,802116-00001 ,802116-1 ,920028||JADE RANGE:460-101-000 ,46101 ,4610100000||MONTAGUE:03384-7 ,3384-7 ,B-36 ,G-15 ,R99||STAR MFG:2T-39281 ,2T-39282 ,2T-Y7159 ,2T-Z4293 ,59281 ,59282 ,9493 ,WS-59281 ,WS-59282 ,Y7159 ,Z4293||STERO:STA2T-Y7159 ,STA2T-Z4293 ,STA9493 ,STAY7159 ,STAZ4293||U-LINE:4350-028 ,4350-037||VULCAN HART:00-418573-000G1 ,00-723257 ,00-723258 ,00-802116-00001 ,00-920028 ,13523 ,19362 ,2116 ,418573-000G1 ,418573-G1 ,713523 ,723257 ,723258 ,802116-00001 ,802116-1 ,920028
