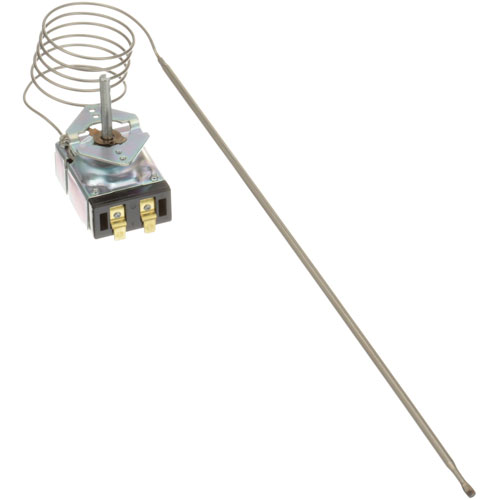

Jade Range 4619000000 Range Thermostat KXT 3/16" X 12-1/4" 36" CAP 175-500°F

SKU: 4619000000 Brand:
Jade Range
Availability:
In Stock
(0)
$316.94 Price reduced from $607.15
Save $290.21
Have a Question? +1 (866) 863-0907 / (630) 326-8602

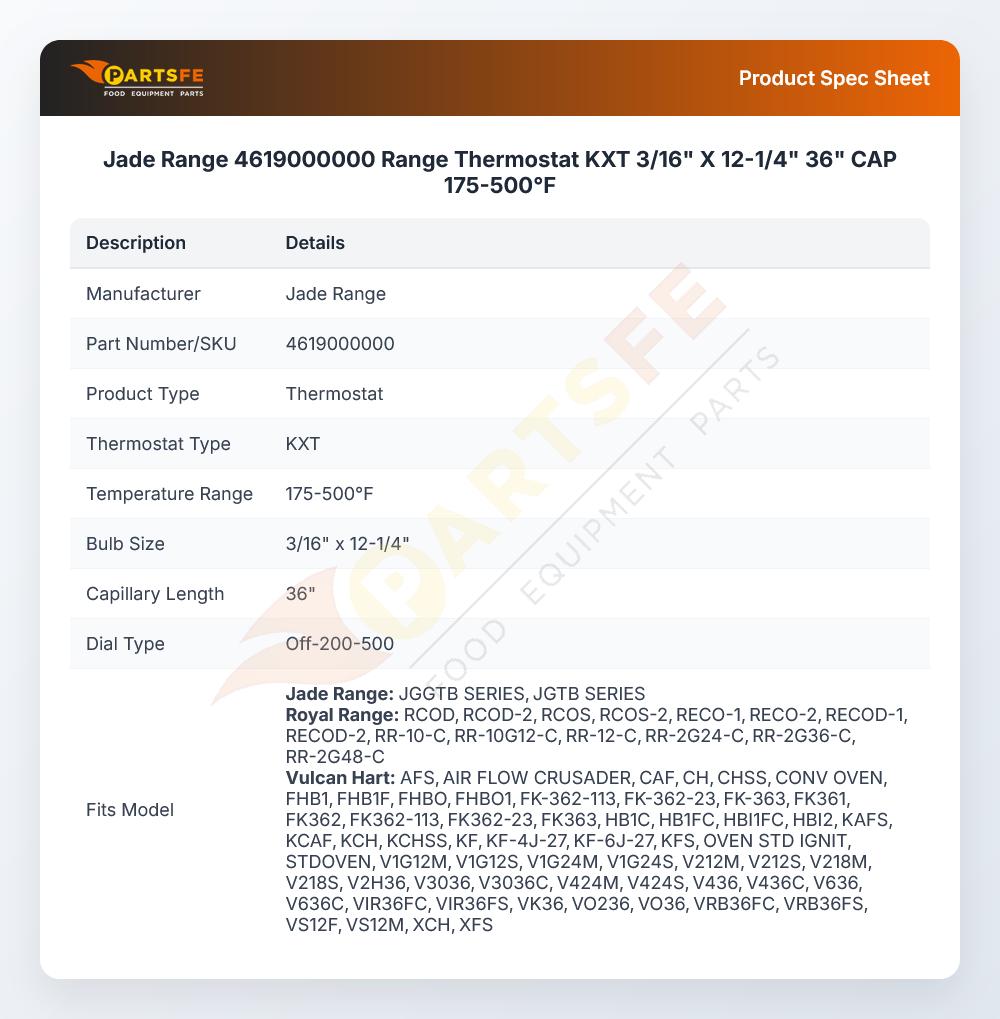

Specifications:

Attribute Details
[ Type - Kxt ] [ Temp 175-500 ] [ Bulb 3/16" X 12-1/4" ]
[ Cap 36" ] [ Use Dial Off-200-500, # 22-1209 ]
For Jade Jco Ovens Use Either # 22-1327
(Pointer Knob) Or #22-1209 Black T'Stat Knob W/White
Numbers[ 2" Dia ] [ Off-200-500] [Mount .187"] [Flat
Down]
Jade Grill Series Jggtb, Jgtb.
Market Forge 2900, 2992, 3000, 3092, Mf-R(4, 6, 8, 10)
Tri-Star Oven Tscv
Wolf/Vulcan Oven Afs, Caf, Ch & Chss W/Elec Ignition, H,
Kafs, Kcaf, Kch, Kchr, Kchss, Kf, Kfs, Kh, Xch, Xfs.

Description

The Jade Range 4619000000 Range Thermostat 3/16 x 12-1/4 x 36 CAP 175°C 500C KXT operates by detecting the temperature variations in the cooking unit and adjusting the flow of gas to keep the desired heat level. It operates on a temperature sensitive bulb and capillary system which expands and contracts with heat, which activates the control valve to control the burner activity. It is a thermostat installed in the control assembly of the range, whereby it is linked to the burner and temperature dial, and it controls the correct temperature during the cooking process.

More Information:

  • HOBART:00-719202 ,18161 ,19202 ,718161 ,719202||JADE RANGE:460-190-000 ,460-301-000 ,460190000 ,4619000000 ,4630100000||ROYAL RANGE:2520 ,ROY2520||U-LINE:5300-716 ,KX13-36 ,KX1336||VULCAN HART:00-719202 ,18161 ,19202 ,718161 ,719202

Step1: Turn off gas range and electrical power, and allow unit to cool completely before servicing.

Step2: Remove access panel and disconnect old thermostat capillary tube carefully from control.

Step3: Route new capillary tube through channel, avoiding sharp bends or kinks.

Step4: Mount thermostat securely and position sensing bulb in proper hot zone area.

Step5: Reconnect electrical terminals and ensure all fittings are tight and insulated.

Step6: Restore power, test temperature range, and check accurate calibration and safety cutoff operation

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Jade Range 4619000000 Thermostat?

    Inspect the thermostat bulb and capillary tube regularly for kinks or leaks. Clean external components to prevent grease buildup affecting temperature accuracy. Ensure secure mounting and proper calibration for safe operation in high-heat cooking conditions.

  • What are common issues with the Jade Range 4619000000 Thermostat?

    • Inaccurate temperature control due to sensor drift.
    • Capillary tube damage or leaks causing failure.
    • Calibration issues leading to uneven heating.
    • Worn seals reducing responsiveness over time.
