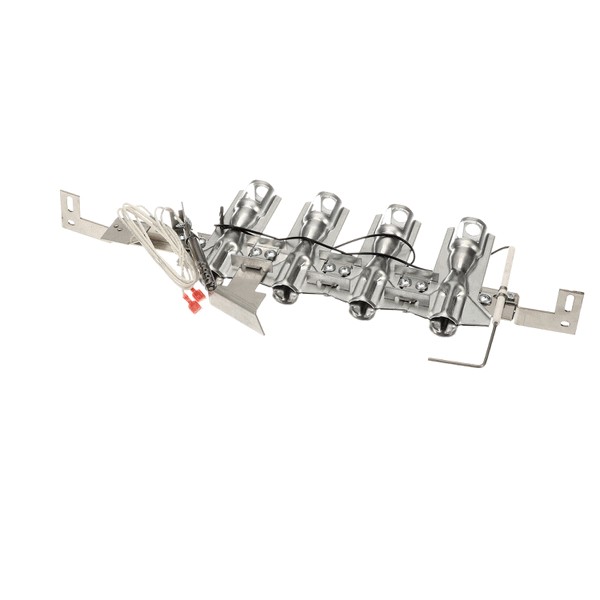

Southbend 1194604 Convection Oven Four-Coil Burner Assembly

SKU: 1194604 Brand:
Southbend
Availability:
In Stock
(0)
$1,006.16 Price reduced from $1,084.23
Save $78.07
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Description

The Southbend 1194604 Convection Oven Four-Coil Burner Assembly operates on the concept of having a regulated supply of gas in the form of intake ports to the part that then burns in a controlled flame over its circular shape. This element produces the required heat energy, which is then pumped by the fans inside the skillet to ensure that the temperatures are constant all over the cabinet. The assembly will be placed at the bottom of the heating chamber and will be firmly attached to the burner support bracketry to ensure that it is in the position to align with the primary orifice.

More Information:

Manufacturer Name: Southbend
Product Number: 1194604
OEM Part Number: 1194604
Product Description: (4)Co Burner Asm
Similar Models:1175444 - Southbend, 1179712 - Southbend
Dimensions:
Length:1in/2.54cm
Width:1in/2.54cm
Height:1in/2.54cm
Weight:4.1lbs/1859.73g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from {{config path='general/store_information/name'}}!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at {{config path='general/store_information/phone'}} or {{config path='trans_email/ident_support/email'}}

  • SOUTHBEND:1175444 ,1179712 ,1194604

Customer Reviews

No reviews yet. Be the first to write one!

  • How to replace an oven element by yourself ?

    How to replace an oven element by yourself

    When you wanted to replace an oven element, you first need to remove the power plug from the power cord so that there would be no power exchange. Firstly open the oven door and remove the racks inside it. Keep them aside. At the bottom, you will find the element which is called as bake element. When you look at it you will find it is secured with screws, so that it will not move from its fixed position.

    Using the screwdriver try removing the screws and securing them safely as we need them again to fix them back with a new one. After removing the screws, the wires will be connected to a terminal so do not remove it in a hurry. Gently disconnect the terminal and remove it.

    Now take out your new element from the package, and place it back at the terminal. Fix the wires of it with the terminal and fix it back with screws. After ensuring you have fixed it correctly. Place the racks back in place and close the door and plug the plug into the cord.

    Now you know the process of replacing an oven element but you might be thinking where do I get the new element from. Shopping has become simple these days. We have a few good online websites such as PartsFe, where you can order the element or the spare parts that are required for you and will be delivered to your doorstep.

    You do not need to step out to buy though the pandemic situations are better. Even for safety reasons, it is better to stay at home and we are here to assist you to the maximum. You will have plenty of options when you open the website.

    If you do not have any clue about what to choose, we can assist you. We offer all kinds of Oven Parts and Accessories for your needs. We also provide same-day shipping which will help you to change the elements sooner than you expect.
