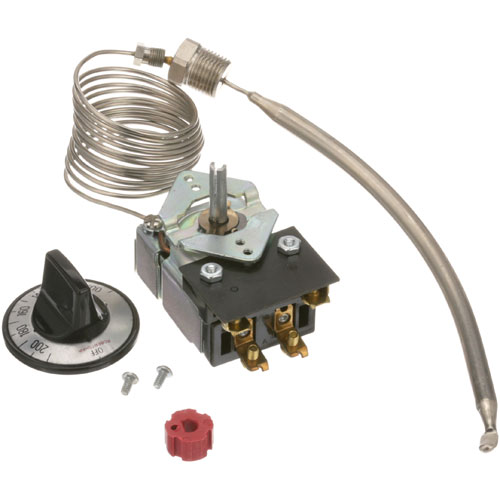

Wells 55984 Thermostat KA Bulb 5/16" X 8-1/2" CAP 72"

SKU: 55984 Brand:
Wells
Availability:
Out of Stock
(0)
$286.44 Price reduced from $456.83
Save $170.39
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ T'Stat Type - Ka ] [ Temp 100-200 F ]
[ Curved Bulb 5/16" X 8-1/2" ] [ Cap 72" ] [ 3/8" Mpt Stuff
Box, Has Auxillary Switch.
"Wells" Knob, [ 2-3/8" Dia ] [ Off-Hi-8-2-Lo] [Mount .187"]
[ Flat Up ], # 22-1074.
[ Gen Use (1-10) # 22-1002
"Wells" Knob # 22-1253 Off-205-70
Wells Warmer/Hot Dog Steamer Hd10, Hw10, Hw106, Hw/Smp

Description

The Wells 55984 Thermostat senses temperature through its remote bulb and regulates the heating cycle by opening or closing the electrical circuit as temperatures change. The 5/16-inch by 8-1/2-inch sensing bulb, connected by a 72-inch capillary tube, transmits temperature changes to the thermostat for controlled operation. This component is installed inside compatible commercial cooking equipment, with the sensing bulb positioned in the heated area and the thermostat mounted in the control panel.

More Information:

  • BLOOMFIELD:WS-50290 ,WS-55984||STAR MFG:50290 ,55984 ,WS-50290 ,WS-55984||U-LINE:5300-149 ,5300-14J ,KA949-72
