Pitco 60077901 Fryer SPST Circuit Breaker W/2Terminals 250VAC 10AMP

SKU: 60077901 1-60077901 Brand:
Pitco
Availability:
In Stock
(1)
$202.49 Price reduced from $390.00
Save $187.51
Have a Question? +1 (866) 863-0907

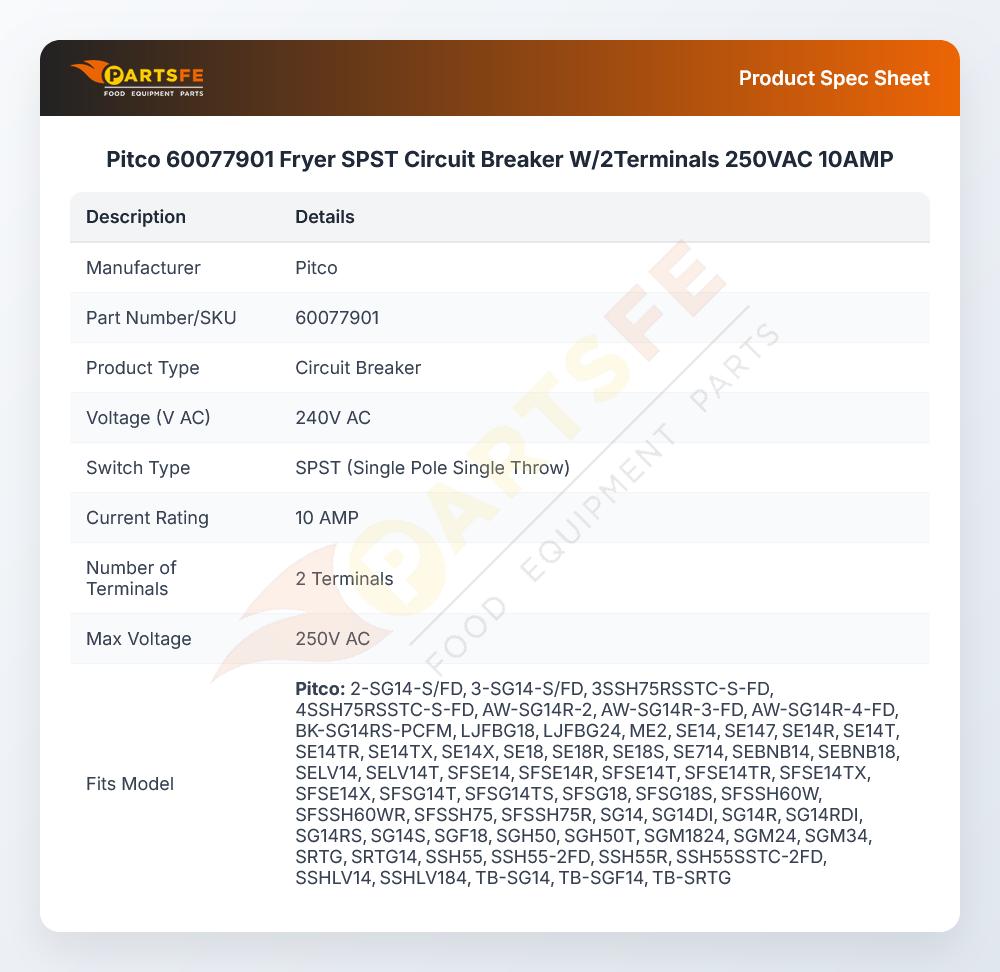

Specifications:

  • Circuit Breaker, Spst, 250Vac, 10Amp
  • 2 Terminals,
  • Pitco Fryer Fryer Lj-Fbg18, Lj-Fbg24, Lj-Fbgd18, Lj-Fbgd24,
  • Me2, Meii, Se14, Se147, Se148X, Se14R, Se14T, Se14Tr,
  • Se14Tx, Se14X, Se18, Se18R, Se18S, Se714, Sebnb14, Sebnb18,
  • Seh50, Sfse14, Sfse14R, Sfse14T, Sfse14Tr, Sfse14Tx,
  • Sfse14X, Sfse18, Sfse18R, Sg14, Sg14Di, Sg14R, Sg14Rdi,
  • Sg14Rs, Sg14S-D, Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F,
  • Sg18S,Sg18S-D, Sgc, Sgh50, Sgm1824, Sgm24, Sgm34,
  • Sgsebnb-14,Sgsebnb-18, Ssh55, Ssh75, Ssh75Rs

Description

The Pitco 60077901 Circuit Breaker SPST 250V 10A is an electrical protection a single-pole single-throw system that is designed to be used in commercial deep fryers. It works by blocking electrical currents when the current becomes excessive and causes damage to internal parts instead of causing electrical faults. This breaker is installed in the control system of the fryer to protect heating components and wiring in the case of an overload. It is applicable across fryer models and systems that are compatible, which provides stable electrical operation in the commercial kitchen setups.

Dimensions:

  • Length: 3 in
  • Height: 1.5 in
  • Width: 2.5 in

This Part Fits the Following Models

113 models
Pitco 2-SG14-S/FD Pitco 3-SG14-S/FD Pitco 3SSH75RSSTC-S-FD Pitco 4SSH75RSSTC-S-FD Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SG14RS-PCFM Pitco CKSSH60WC Pitco LJFBG18 Pitco LJFBG24 Pitco LJFBGD18 Pitco LJFBGD24 Pitco ME2 Pitco MEII Pitco MGII Pitco P90K Pitco P90KL Pitco PG14D Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco SE14 Pitco SE147 Pitco SE14R Pitco SE14T Pitco SE14TR Pitco SE14TX Pitco SE14X Pitco SE18 Pitco SE18R Pitco SE18S Pitco SE714 Pitco SEBNB14 Pitco SEBNB18 Pitco SEH50 Pitco SELV14 Pitco SELV14T Pitco SFSE14 Pitco SFSE14R Pitco SFSE14T Pitco SFSE14TR Pitco SFSE14TX Pitco SFSE14X Pitco SFSE18 Pitco SFSE18R Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SFSG6H Pitco SFSSH55R Pitco SFSSH55T Pitco SFSSH55TR Pitco SFSSH60 Pitco SFSSH60R Pitco SFSSH60W Pitco SFSSH60WR Pitco SFSSH75 Pitco SFSSH75R Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14SD Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18HP Pitco SG18S Pitco SG18SD Pitco SG6H Pitco SGC Pitco SGF18 Pitco SGH50 Pitco SGH50T Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SRTG Pitco SRTG14 Pitco SSH55 Pitco SSH55-2FD Pitco SSH55R Pitco SSH55SSTC-2FD Pitco SSH55T Pitco SSH55TR Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60R Pitco SSH60W Pitco SSH60W/C-S/FD Pitco SSH60WR Pitco SSH75 Pitco SSH75R Pitco SSH75RS Pitco SSHLV14 Pitco SSHLV184 Pitco TB-SG14 Pitco TB-SGF14 Pitco TB-SRTG
Showing of 113.0

PITCO:

PT60077901

Step1: Turn off fryer power at the main disconnect to prevent electrical shock.

Step2: Remove control panel cover to expose the old breaker.

Step3: Disconnect all wiring from the faulty breaker.

Step4: Pull out the old breaker and inspect the mounting slot.

Step5: Insert the new breaker firmly into position.

Step6: Reattach wiring to correct terminals and secure panel cover.

Step7: Restore power and test operation by toggling breaker on/off.

  • What maintenance is required for the Pitco 60077901 Circuit Breaker?

    Regularly inspect for signs of wear, corrosion, or tripped contacts. Clean terminals and ensure secure mounting. Proper maintenance ensures safe electrical operation, prevents unexpected shutdowns, and reduces fire hazards.

  • What are the common issues with the Pitco 60077901 Circuit Breaker?

    • The breaker tripped unexpectedly during normal operation.
    • Loose or corroded connections are causing intermittent function.
    • Failure to reset properly.
    • Overheating from electrical overload.
