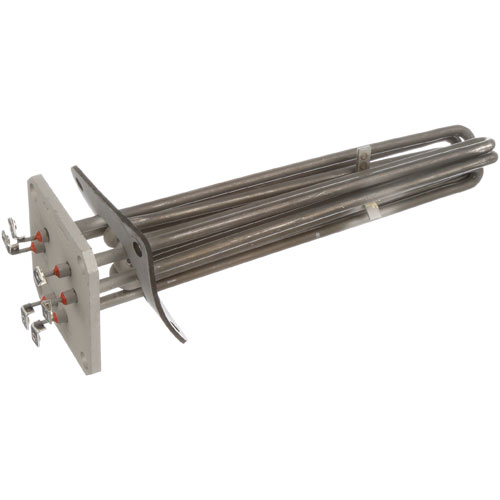

Southbend 7-5019 Immersion Element W/Gasket 12kW 208V

SKU: 7-5019 Brand:
Southbend
Availability:
In Stock
(0)
$1,477.96 Price reduced from $1,728.61
Save $250.65
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Immersion Element, 208V, 12Kw
With Gasket, 12" Long From Base, 13" Overall
Market Forge Steamer
Southbend Steamer
Vulcan Steamer

Description

The Southbend 7-5019 Immersion Element 12kW 208V works by changing electrical energy into heat to increase the temperature of water, oil, and other cooking mediums. It operates by heating a resistive coil, which is then passed on to the surrounding fluid, and a gasket is used to provide a secure and sealed installation. The element is fitted to compatible commercial equipment, which is usually fitted into the tank or reservoir. It assists in maintaining the steady temperature, the coordination of the work with thermostats and controls and effective heating during the cooking or processing cycles.

More Information:

  • ACCUTEMP:AC-7-5019||BLODGETT:41367 ,BL41367||CROWN STEAM:7-5019||GROEN:CROWN-7-5019||HOBART:00-881996 ,881996||MARKET FORGE:97-5019||SOUTHBEND:7-5019 ,SOU7-5019||VULCAN HART:00-881996 ,881996 ,VH00-881996

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Southbend 7-5019 Heating Element with Gasket?

    Periodically inspect the heating element for mineral scale or sediment buildup. Clean the element surface and gasket area; ensure gasket remains intact to prevent leaks and maintain proper seal.

  • How do I install the Southbend 7-5019 Heating Element with Gasket?

    • Turn off power to the steamer/oven and disconnect from electrical supply.
    • Drain water and ensure unit is cool before disassembly.
    • Remove the access panel and unscrew the nuts or bolts holding the existing element assembly, disconnect wiring terminals.
    • Remove the old element and old gasket. Clean the mounting surface thoroughly.
    • Place the new element with its gasket — ensure gasket surface seats flush and evenly.
    • Secure the element with nuts/bolts, tightening to specified torque.
    • Reconnect all wiring per wiring diagram, re-install insulation/cover panels.
    • Restore power, fill water, and run a test cycle to verify proper heating with no leaks.

  • What are common issues with the Southbend 7-5019 Heating Element with Gasket?

    Common problems include element burnout, gasket wear or deformation causing leaks, or poor heat transfer if gasket/seal isn’t seated properly. Loose wiring or corrosion at terminals can also cause intermittent heating or failure.

  • Which Southbend models are compatible with the Southbend 7-5019 Heating Element with Gasket?

    It is compatible with the Southbend Kettle, including models EC-10, KECT-05F and KECT-10F.
