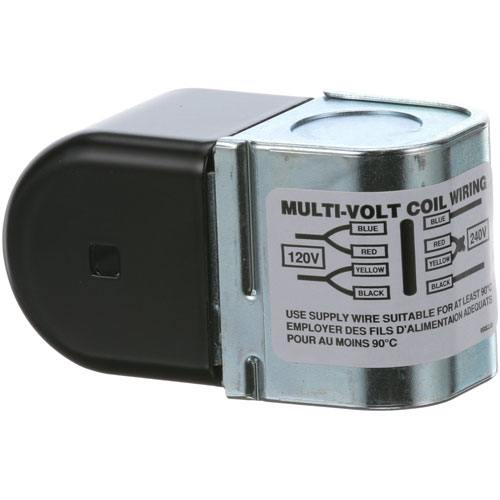

Parker Hannifin 77360 Solenoid Coil 120/240V

SKU: 77360 Brand:
Parker Hannifin
Availability:
In Stock
(0)
$98.68 Price reduced from $152.06
Save $53.38
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Parker Coil, 120/240V
Used On
# 58-1025, Solenoid Valve
# 58-1026, Solenoid Valve
# 58-1035, Solenoid Valve
# 58-1036 Solenoid Valve
# 58-1018 Solenoid Valve
# 58-1125 Steam Solenoid
# 58-1123 Steam Solenoid
# 58-1124 Steam Solenoid

Description

The Parker Hannifin 77360 Solenoid Coil 120/240V activates an electromagnetic coil to induce a magnetic field which pulls the valve plunger open the inner passage when power is connected and closes when power is disconnected. The coil operates the valve when the system is controlled by voltage. It is installed around the valve stem of the fluid or gas line of compatible equipment, usually fitted in the solenoid valve assembly. This coil is to be replaced when the part does not open the valve in the normal operating position.

More Information:

  • JACKSON:04810-200-03-00 ,4810-200-03-00 ,48102000300||PARKER HANNIFIN:77360 ,G23

Step1: Disconnect electrical power completely and confirm the system is de-energized before handling.

Step2: Remove existing coil from the solenoid valve by loosening retaining hardware.

Step3: Slide the new coil onto the valve core ensuring correct seating alignment.

Step4: Reattach mounting clip or nut and tighten securely without over-compressing the coil body.

Step5: Reconnect wiring terminals as per schematic and insulate properly.

Step6: Restore power and test valve actuation to confirm proper energizing and operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Parker Hannifin 77360 Solenoid Coil?

    Regularly inspect the coil for signs of overheating, damage, or loose wiring connections. Keep the area clean and dry to prevent electrical issues. Proper maintenance ensures consistent valve operation, reduces risk of coil failure, and supports better electrical performance.

  • What are common issues with the Parker Hannifin 77360 Solenoid Coil?

    • Coil overheating during operation.
    • Failure to energize the solenoid valve.
    • Intermittent electrical connection.
    • Burnt or damaged coil windings.
    • Voltage mismatch causing improper operates.
