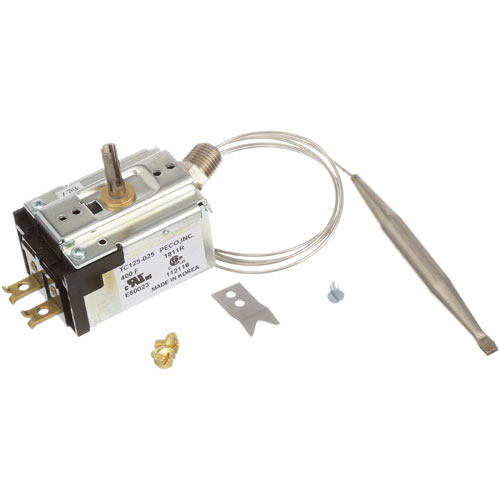

Dean 807-3515 Thermostat TC125 200-400F 36" Capillary

SKU: 807-3515 1-807-3515 Brand:
Dean
Availability:
In Stock
(0)
$77.03 Price reduced from $163.20
Save $86.17
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Peco Type - Tc125 ] [ Temp 200-400 ]
  • [ Bulb 3/8" X 3-1/2"] [ Cap 36" ] [ 1/4" Stuff Box ]
  • [ Dial To Use # 22-1006 Off-400-200, 4-Way ]
  • Garland Dial To Use # 22-1027, [Off-400-200] [Mount .187"]
  • [Flat Down ]
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • This Thermostat Is Used By Frymaster And Comes
  • With A Clip To Keep The Temperature From Moving Up, Due
  • To Dial Being Bumped. The Clip Puts Pressure On The Shaft
  • Of The Thermostat.
  • Imperial Has Used This Thermostat In The Past. They May
  • Also Use The Robertshaw Equivalent # 46-1272.

Description

The Dean 807-3515 Thermostat TC125 200-400F 36" Capillary senses temperature with the help of a capillary bulb which detects the presence of heat and produces a control signal when the conditions change. As soon as the measured temperature falls within the set range, the thermostat closes or opens internal contacts to control heating elements as designed. It is inserted into the heating chamber or close to the heat source of other compatible cooking or holding equipment. The capillary is inserted to sense accurately and is designed so that it does not react properly to the change in temperature under normal operation.

Dimensions:

  • Weight: 0.48 lbs
  • Length: 5.75 in
  • Height: 2.38 in
  • Width: 2 in

This Part Fits the Following Models

128 models
Dean CFD50 Dean CFD60 Dean CFD80 Dean D20 Dean D50 Dean D50G Dean D50GDD Dean D60 Dean D80 Dean FPD65 Dean FPHD265 Dean FPHD365 Dean FPHD465 Dean FPHD565 Dean FPHD665 Dean HD150 Dean HD260 Dean SCFD250G-RTI Dean SCFD50 Dean SCFD60 Dean SCFD80 Dean SCFHD160 Dean SCFHD260 Dean SCFHD360 Dean SCFHD456 Dean SCFHD460 Dean SCFHD60 Dean SM Dean SM150 Dean SM150GNS Dean SM180 Dean SM20 Dean SM22 Dean SM220 Dean SM250 Dean SM250GNS Dean SM35 Dean SM40 Dean SM50 Dean SM5020 Dean SM60 Dean SM80 Dean SR38 Dean SR42 Dean SR52 Dean SR62 Dean Super Runner 52 Dean TC25 Frymaster 11814G Frymaster BK1814 Frymaster CFD50 Frymaster CFD60 Frymaster CFD80 Frymaster CFHDC Frymaster D20 Frymaster D50 Frymaster D60 Frymaster D80 Frymaster ESG35T Frymaster FPHD65 Frymaster FPHDC Frymaster HD150 Frymaster HD150G Frymaster HD1814G Frymaster HD260 Frymaster HD50GC Frymaster HD60 Frymaster HDC Frymaster LHDC Frymaster SCFD50 Frymaster SCFD60 Frymaster SCFD80 Frymaster SCFHD160 Frymaster SCFHD260 Frymaster SCFHD360 Frymaster SCFHD456 Frymaster SCFHD460 Frymaster SCFHD460C Frymaster SCFHD460GN Frymaster SCFHD460GNC Frymaster SCFHD50 Frymaster SCFHD60 Frymaster SCFHD63 Frymaster SCFHDC Frymaster SM20 Frymaster SM20G Frymaster SM220 Frymaster SM22G Frymaster SM35 Frymaster SM35G Frymaster SM40 Frymaster SM40G Frymaster SM50 Frymaster SM50G Frymaster SM50GDD Frymaster SM60 Frymaster SM60G Frymaster SM80 Frymaster SM80G Frymaster SR162GN Frymaster SR38 Frymaster SR38G Frymaster SR42 Frymaster SR42G Frymaster SR52 Frymaster SR52G Frymaster SR62 Frymaster SR62G Frymaster Super Runner 52 Frymaster TC25 Frymaster TG3 Frymaster x1814xx Frymaster Y/KSCF/C/HC Frymaster YSCFH214GCNS Frymaster YSCFH314GNC Imperial IF SERIES Imperial IF-BL SERIES Imperial IF-COUNTER Imperial IFS-40 Imperial IFS-50 Imperial IFSSP250C-12 Imperial IFSSP250C-125 Imperial IPC-14 Imperial IPC-18 Imperial IRF-40 Imperial IRF-50 Imperial IRFS-40 Imperial IRFS-50
Showing of 128.0

DEAN:

1175 1204 2557 8073515 826-2013 8262013

FRYMASTER:

1175 1204 2557 8073515 826-2013 8262013 FM1175 FM1204 FM2557 FM807-3515 FM826-2013 FM8262013

GARLAND:

1204 227141 CK227141

IMPERIAL:

1175-SUN
