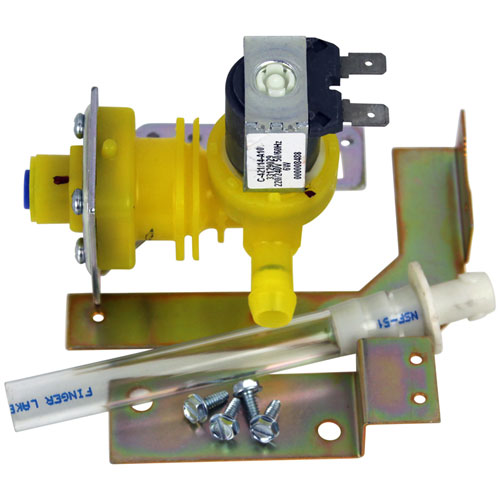

Manitowoc 9126 Ice Machine Water Inlet Valve 240V

SKU: 9126 Brand:
Manitowoc
Availability:
In Stock
(0)
$174.07 Price reduced from $210.74
Save $36.67
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Water Inlet Valve, 240V, .50 GPM, 10W, 50/60Hz
Manitowoc Id0302A, Id0303W, Id0523W, Id1072C, Id1472C,
Iy0304A, Iy0305W, Iy0524A, Iy0525W, Iy1074C, Iy1474C,
Sd0302A, Sd0303W, Sd0322A, Sd0323W, Sd1472C, Sr0300A,
Sr0301W, Sr0320A, Sr0321W, Sy0304A, Sy0305W, Sy0324A,
Sy0325W, Sy1474C

Description

The Manitowoc 9126 Ice Machine Water Inlet Valve 240V is water control part for compatible commercial use. The inlet valve control the water that enters the ice production system during fill and harvest cycles and is rated for 240 volts. It is placed in the appliance plumbing assembly and is controlled by the control system to open and close to maintain the proper water levels for ice production. This is a part of the system to ensure ice-making and water management. It is often occurs if leakage, limited flow, or electrical failure occurs in the operation of the machine.

More Information:

  • MANITOWOC:000000376 ,000009126 ,9126 ,MAN000009126 ,MAN9126

Step1: Disconnect power and water supply to ice machine before servicing.

Step2: Remove access panel and locate existing water inlet valve assembly.

Step3: Disconnect electrical connectors and inlet, outlet water tubing carefully.

Step4: Unscrew mounting hardware and remove the faulty valve from bracket.

Step5: Position new valve, secure with screws, and align water ports correctly.

Step6: Reattach tubing, tighten fittings firmly, and reconnect electrical terminals.

Step7: Restore water supply, check for leaks, then reconnect power and test.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Manitowoc 9126 Inlet Valve?

    Inspect the ice machine valve screen regularly for mineral buildup and flush debris from the inlet line. Ensure proper electrical connections and clean water supply to prevent clogging. Periodic checks can maintain consistent water flow and reduce operational disruptions.

  • What are common issues with the Manitowoc 9126 Inlet Valve?

    • Valve sticking due to scale buildup restricting water flow.
    • Intermittent water fill caused by electrical connection faults.
    • Slow or no water entry from clogged inlet screen.
    • Continuous water flow due to diaphragm or seal consumption.
