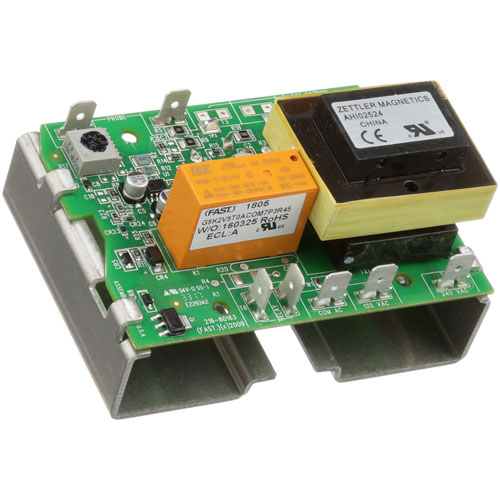

Blodgett BL24651 Temperature Control Board W/Potentiometer

SKU: BL24651 Brand:
Blodgett
Availability:
In Stock
(0)
$227.55 Price reduced from $472.06
Save $244.51
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Temp Control W/Potentiometer
For Pointer Knob Use # 221106
For Probe Use # 441117
Blodgett
Oven St-300, Zephaire 50E, Zephaire E & G With S/S Control

Description

The Blodgett BL24651 Temperature Control Board With Potentiometer is a part that controls the level of heat in the pan by taking the input signals generated by the sensor and adjusting the heating components or gas valves based on the input. This electronic assembly has an integrated potentiometer to enable manual regulation of the setpoint to provide the internal condition with the desired thermal condition. This circuit board acts as a central logic unit for warmth management which synchronizes the timing of cycles and ignition sequence according to daily information.

More Information:

  • BLODGETT:24651 ,33152 ,BL24651 ,BL33152

Step1: Turn off power and disconnect equipment before starting installation.

Step2: Remove existing temperature control and label wiring connections carefully.

Step3: Mount securely in control panel and ensure proper fit.

Step4: Reconnect wires to matching terminals according to wiring diagram.

Step5: Tighten connections and verify potentiometer alignment and calibration.

Step6: Restore power and test temperature response for safe operation.

Step7: Confirm all safety checks and monitor initial startup for stability.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Blodgett BL24651 Temperature Control?

    Regularly inspect wiring connections and terminals for tightness and signs of damage or corrosion. Keep the control area clean and free from grease buildup. Verify proper calibration of the potentiometer. Always disconnect power before servicing to prevent electrical hazards.

  • What are common issues with the Blodgett BL24651 Temperature Control?

    • Inonsistent or inaccurate temperature regulation.
    • Potentiometer not responding or stuck settings.
    • Controller failing to activate heating elements.
    • Loose or damaged wiring connections.
    • Erratic operation due to electrical faults or component failure.
