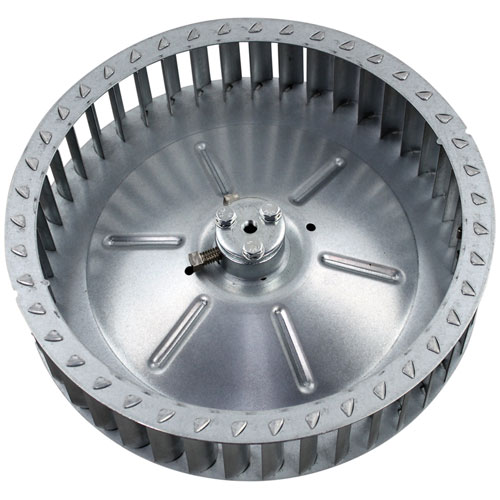

Southbend 1175196 Range Blower Wheel 9-7/8D X 2-1/4W 1/2
$189.70
Price reduced from
$357.25

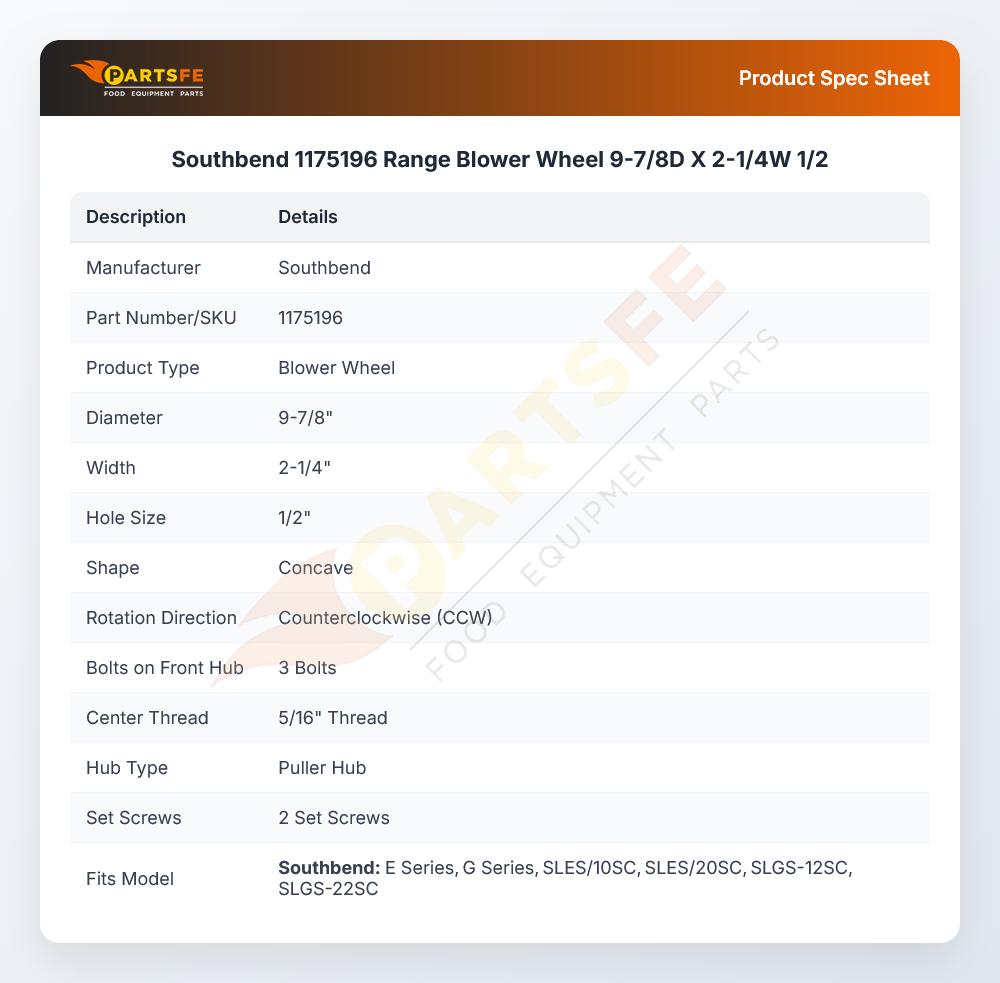

Specifications:
| Attribute | Details |
|---|---|
| Blower Wheel, [ 9-7/8"Dia ] X [2-1/4"W] 1/2" Hole, Concave, | |
| Ccw, 3 Bolts On Front Hub And Center 5-16" Thread, Puller | |
| Hub, 2 Set Screws. No Keyway | |
| Southbend 115V 2 Speed Motor # 68-1074 | |
| Southbend 208/230V 2 Speed Motor # 68-1242 | |
| Southbend Oven Series | Eb, Es~ |
| Gb & Gs After S/N 93K. | |
| Cot-1361C, Slgs |
Description
The Southbend 1175196 Range Blower Wheel is an essential part with a diameter of 9-7/8 inches and a width of 2-1/4 inches. It works through a concept of producing flow of air that not only eliminates smoke, grease, and odors within the kitchen but also improves air quality during cooking. This blower wheel enhances on ventilation as well as reduces grease deposition on various surfaces in the kitchen. It has a constructive role of preserving a suitable environment for cooking while its efficient use minimizes the necessity for extra energy sources such as cooling or heating systems.
More Information:
- SOUTHBEND:1175196 ,1179104 ,SOU1179104
Step1: Turn off power to the Range and unplug it to prevent electric shock.
Step2: Remove the access panel or housing covering the blower assembly.
Step3: Slide the old blower wheel off the motor shaft, noting its orientation.
Step4: Install the new blower wheel onto the shaft, ensuring it sits securely.
Step5: Tighten any set screws or retaining clips to secure the wheel.
Step6: Replace the access panel and restore power.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Southbend 1175196 Blower Wheel?
Regularly inspect the range blower wheel for dust, debris, or grease buildup. Clean using a soft brush or compressed air to ensure optimal airflow. Check for loose or damaged blades, and always disconnect power before performing maintenance for safety.
-
What are common issues with the Southbend 1175196 Blower Wheel?
- Reduced airflow due to accumulated debris.
- Imbalanced or wobbling wheel.
- Unusual noises during operation.
- Damage or bending of blades affects performance.
