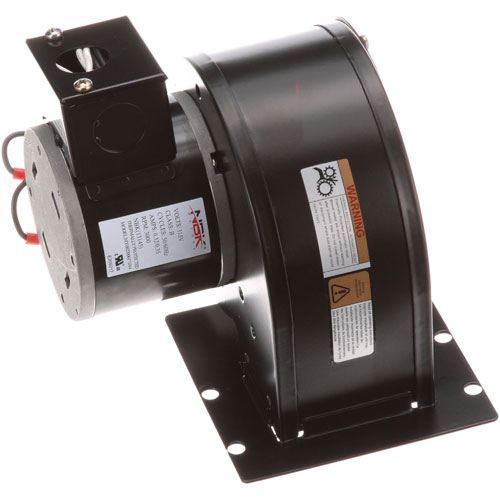

Southbend 1164095 Range Blower W/ Plate Flange 4-1/2" X 4-1/2"DIA CCW

SKU: 1164095 Brand:
Southbend
Availability:
In Stock
(0)
$663.47 Price reduced from $1,293.32
Save $629.85
Have a Question? +1 (866) 863-0907 / (630) 326-8602

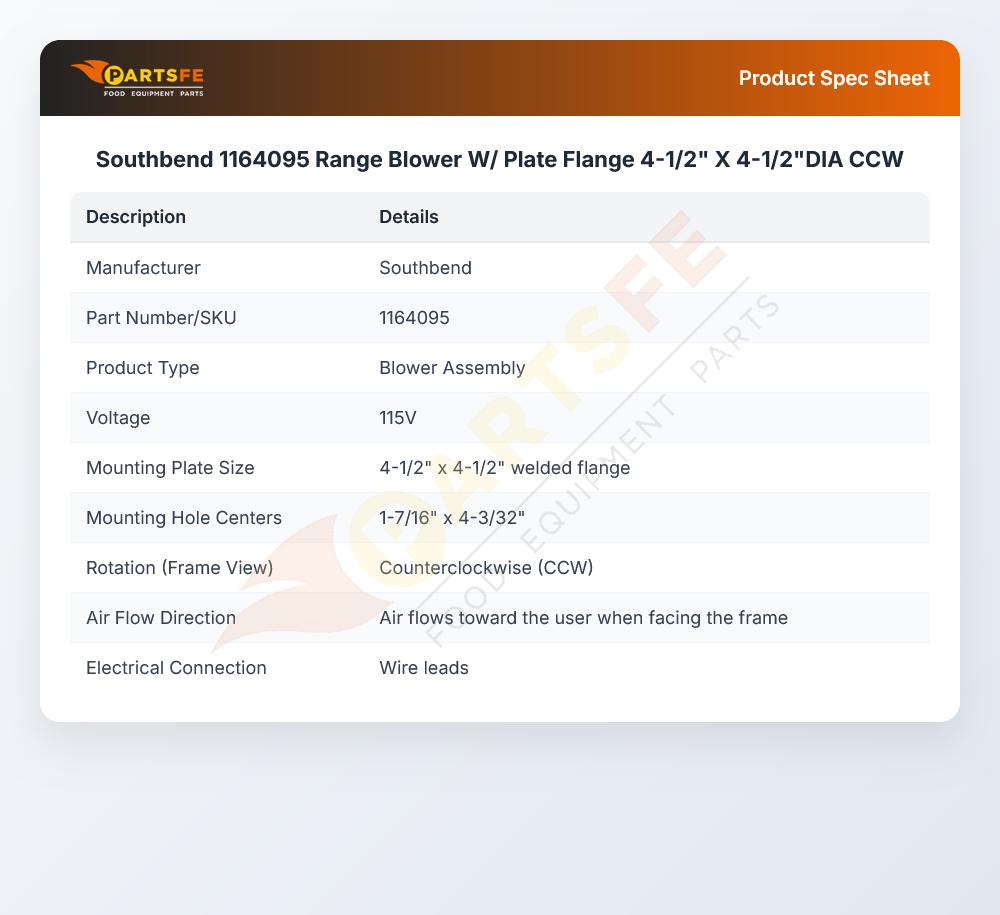

Specifications:

Attribute Details
115V Blower, Fasco, 4-1/2" X 4-1/2" Plate Welded On Flange
1-7/16" X 4-3/32" Mount Ctrs, Looking At Frame- Ccw, Air To
You, Has Wire Leads,
Southbend
Broiler Infrared Units With D Suffix, 171-40 A/C/D

Description

The Southbend 1164095 Range Blower is a powerful 115V blower that is compatible with Southbend models only. Measuring 4-1/2” x 4- 1/2”, this fan rotates in an anti-clockwise direction helping to circulate air around for better cooking results and holding the correct temperature. This blower is most useful in broiler infrared units and plays an essential role in heating uniformity and better cooking outcomes. Due to its durability and simple installation, it is ideal for use in the commercial kitchen so as to enhance fast cooking and energy conservation as well as minimal heat loss during the preparation of foods.

More Information:

  • BLODGETT:-Z1164095 ,Z1164095||SOUTHBEND:-1164076 ,-1164095 ,1164076 ,1164095

Step1: Disconnect power to the unit to prevent electrical shock and allow components to cool.

Step2: Access the blower compartment and remove mounting screws securing the old blower assembly.

Step3: Disconnect the wire leads from the existing blower motor.

Step4: Position the new blower, aligning the plate flange with mounting holes.

Step5: Secure the blower and reconnect wiring, ensuring correct orientation and airflow direction.

Step6: Restore power and test for proper airflow and operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Southbend 1164095 Blower With Plate Flange?

    Clean the range blower wheel and housing regularly to remove grease and debris buildup. Inspect flange mounting and alignment for stability. Check motor wiring connections and rotation periodically. Ensure safe power isolation before servicing.

  • How do I install the Southbend 1164095 Blower with Plate Flange?

    • Disconnect power to the appliance before installation.
    • Remove the old blower by detaching mounting screws and disconnecting wiring.
    • Position the Southbend 1164095 Blower with Plate Flange in the original mounting location, aligning the flange with the mounting surface.
    • Secure the blower with screws and ensure it is firmly mounted.
    • Reconnect electrical wiring according to the wiring diagram.
    • Restore power and test the blower for proper operation and airflow.

  • What are common issues with the Southbend 1164095 Blower With Plate Flange?

    • Reduced airflow from grease buildup on blower wheel.
    • Excess vibration caused by loose flange or misalignment.
    • Motor running in wrong direction or inconsistent rotation issues.
    • Noise from worn bearings or debris inside housing.
