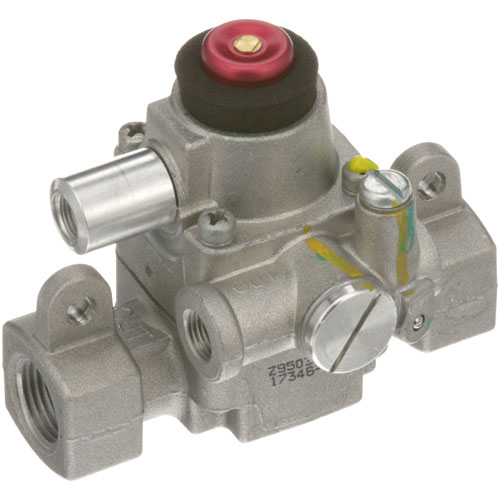

Vulcan Hart 00-913102-00024 Gas Griddle Safety Valve W/Connector TS11

A gas safety valve used in commercial grill systems to control the flow of gas between the pilot assembly and burner components during cooking operations. This valve includes a magnet head and gas carrier configuration with 3/8" NPT gas inlet and outlet connections, along with a 1/8" FPT K-type pilot outlet for compatible pilot setups. It is commonly installed in gas grills and charbroilers that require controlled pilot ignition and burner gas regulation. The assembly helps maintain proper gas delivery to the burner system while working with the pilot flame during normal equipment operation. Commonly found in restaurant grilling equipment, the valve assists with burner ignition control and pilot flame function in high-use cooking environments. Replacing a worn or malfunctioning valve may help resolve pilot lighting issues, irregular burner operation, or gas flow interruptions that affect equipment performance.

Equipment Compatibility:
Common applications for Vulcan grill safety gas valves include commercial charbroilers, countertop gas grills, heavy-duty grilling stations, and restaurant cooking equipment. This Grill Safety Gas Valve 00-913102-00024 is compatible with commercial equipment from brands such as Vulcan Hart, Hobart, and U-Line, where pilot-controlled gas flow and burner safety regulation are required for normal grill operation.

Brand Compatibility:
Replaces multiple compatible part numbers used across commercial foodservice equipment brands, including Hobart, U-Line, and Vulcan Hart. Complete cross-reference details are provided separately.

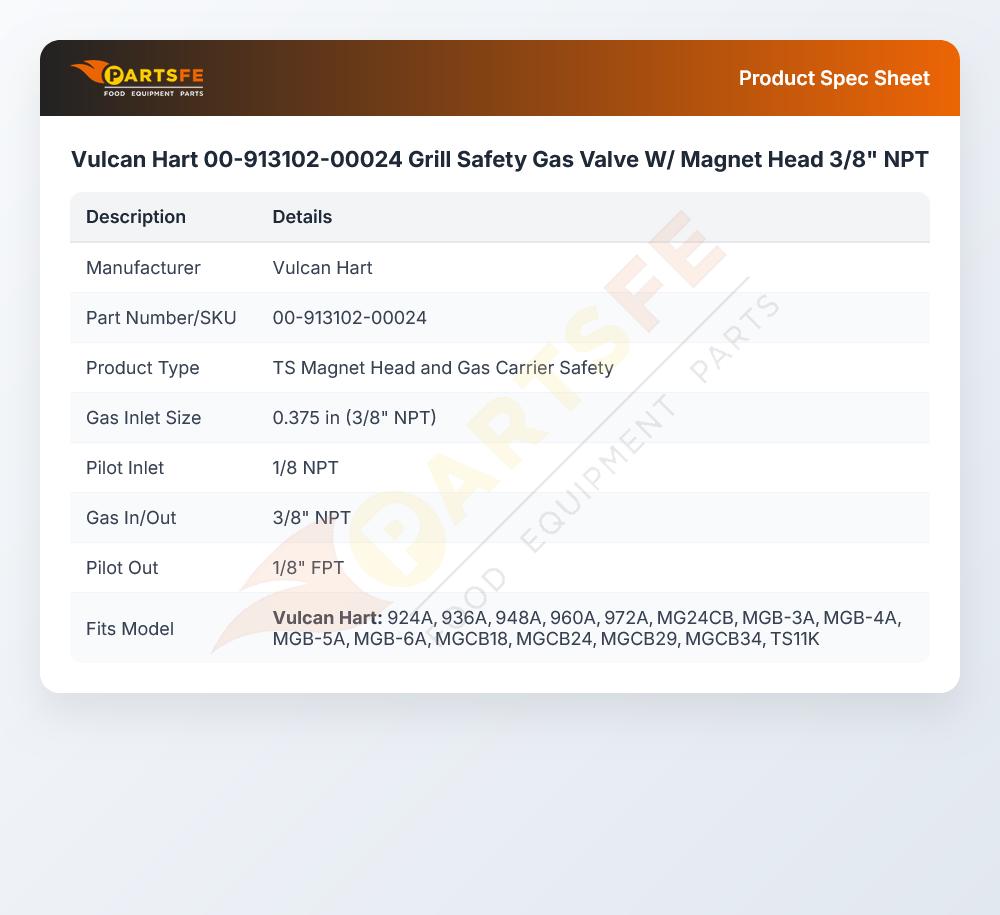

Product Specifications:
Manufacturer: Vulcan Hart
SKU: 00-913102-00024
Product Type: Grill Safety Gas Valve
Connection Size: 3/8" NPT Gas Inlet/Outlet
Pilot Outlet Type: K-Type Pilot Outlet
Pilot Outlet Connection: 1/8" FPT
Configuration: Magnet Head and Gas Carrier Assembly
Application: Commercial Grill Series Equipment

Key Features:

• Regulates gas flow between the pilot and burner systems in compatible grill equipment.
• Magnet head configuration works with pilot flame safety operation.
• 3/8" NPT inlet and outlet connections fit compatible commercial gas line setups.
• K-type pilot outlet with 1/8" FPT connection supports pilot assembly installation.
• Designed for use in commercial grills and charbroilers requiring controlled gas delivery.
• Replacing damaged valves may help restore proper pilot ignition and burner function.

“After replacing the valve, the pilot flame held steady during regular grill use.”

• HOBART:00-713102-00024 ,00-913102-00024 ,00-920442 ,20442 ,713102-00024 ,713102-24 ,913102-00024 ,913102-24 ,920422 ,920442||U-LINE:1720-00J||VULCAN HART:00-713102-00024 ,00-913102-00024 ,00-920442 ,20442 ,713102-00024 ,713102-24 ,913102-00024 ,913102-24 ,920442 ,VH20442 ,VH920442

Step1: Shut off gas supply and power to appliance.

Step2: Remove existing valve carefully, noting line orientation and fittings.

Step3: Apply gas-rated thread sealant tape to connections.

Step4: Install new valve, aligning magnet head correctly with burner system.

Step5: Tighten fittings securely without over-torquing to avoid damage.

Step6: Reconnect gas lines and restore supply gradually.

Step7: Test for leaks using soap solution and verify ignition and safety shutoff.

• What maintenance is required for the Vulcan Hart 00-913102-00024 Safety Gas Valve?

  Inspect Grill valve and magnet head regularly for debris and damage. Clean connections and ensure NPT fittings remain tight and leak-free. Test safety shutoff opeartion periodically to ensure proper gas control.

• What are common issues with the Vulcan Hart 00-913102-00024 Safety Gas Valve?

  • Magnet head failure causing safety shutoff malfunction.
  • Gas leakage from worn or loose NPT connections.
  • Valve sticking leading to inconsistent flame control response.
  • Magnet head weakens over time causing unreliable safety engagement.
