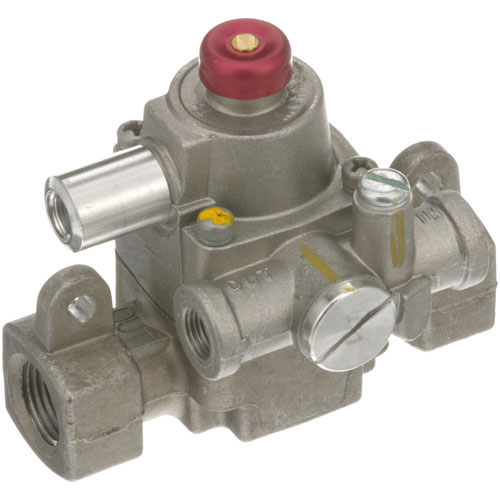

Vulcan Hart 00-959573-00001 Oven J-Type Thermostatic Safety Valve W/ 1/8" FPT Pilot 3/8" FPT
$263.52
Price reduced from
$413.03

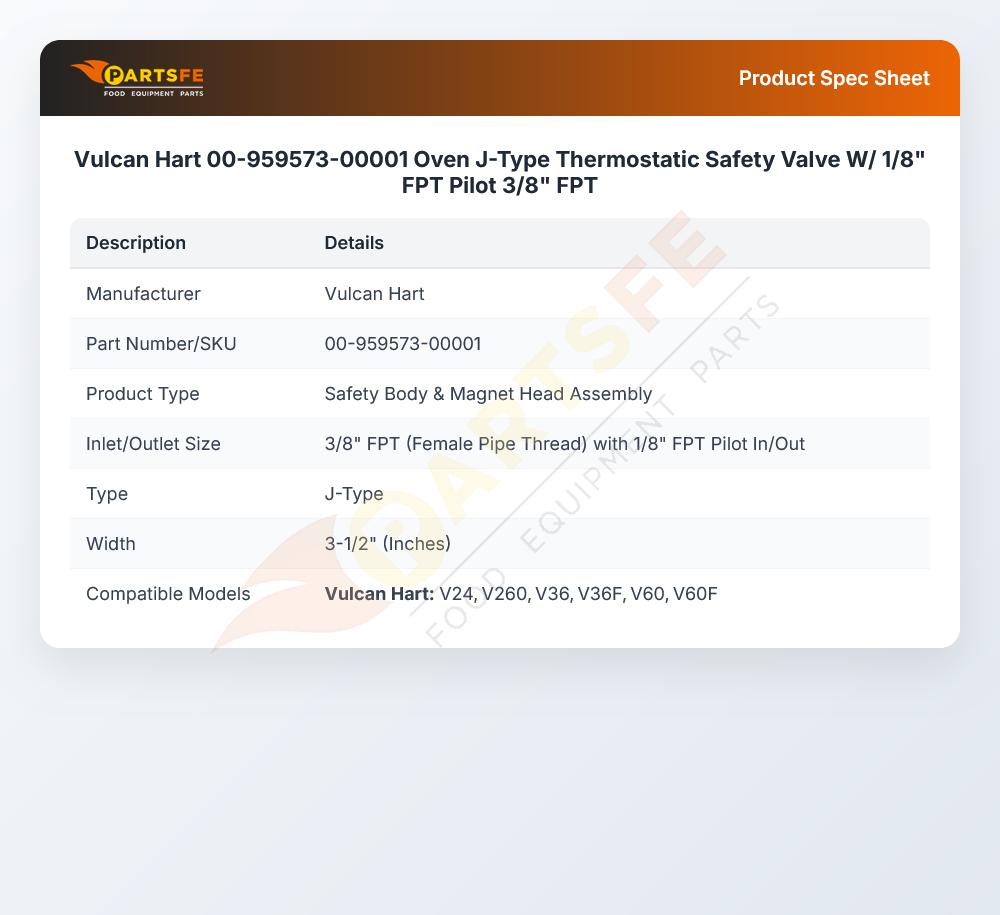

Specifications:
| Attribute | Details |
|---|---|
| Ts Safety, 3/8" Fpt W/ 1/8" Fpt Pilot In/Out, J Type, | |
| 3-1/2" Wide. | |
| For Pilot Head Only Use # 51-1106, Which Includes | |
| 1/8" Mpt X 3/16" Cct And 1/8" Mpt X 1/4" Cct Adapters. | |
| Franklin Chef |
Description
The Vulcan Hart 00-959573-00001 Oven J-Type Thermostatic Safety Valve is essential part is intended to control the flow of the gas safely. It works with a system where gas flows in only if pilot light or the ignition system sends a signal that there is flame, this means that M classes do not allow gas and hence are safe during cooking. This valve uses a 1/8” FPT pilot and has a 3/8” FPT connection making it suitable for different systems. Advantages include, safety, improved temperature regulation and stability, overall performance, therefore suitable for commercial kitchen due to great importance of consistency when cooking.
More Information:
- U-LINE:1720-003 ,1720-00C||VULCAN HART:00-959573-00001 ,959573-00001 ,959573-1
Step1: Turn off the gas supply and disconnect power to the oven.
Step2: Allow the oven to cool completely before servicing.
Step3: Remove the access panel and disconnect the old safety valve fittings.
Step4: Install the new valve using the correct gas connections.
Step5: Tighten fittings securely and reconnect the pilot line.
Step6: Restore gas and power, then check all joints for leaks using a soap solution.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Vulcan Hart 00-959573-00001 Thermostatic Safety Valve?
Maintain the oven J-Type Thermostatic Safety Valve by inspecting pilot connections and ensuring fittings remain tight. Keep gas passages clean and free of blockage. Regularly check calibration for proper temperature control and better operation.
-
What are common issues with the Vulcan Hart 00-959573-00001 Thermostatic Safety Valve?
- Pilot blockage or restricted gas flow supply line.
- Temperature control inaccuracy due to calibration drift over time.
- Leakage at fittings seal issues.
- Valve sticking or failure to open/close properly mechanism.
