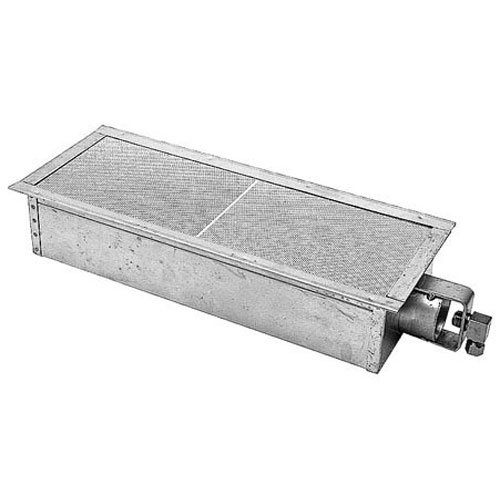

Vulcan Hart 00-844516-00016 Oven Infrared Burner Top Box 16-3/4" X 6-3/4" Ceramic Burn Area 15-1/4" X 5-1/4"

SKU: 00-844516-00016 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$789.84 Price reduced from $1,238.00
Save $448.16
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Infrared Burner,
[ Orifice - #46 W/ Thd Bracket ] 185,000 Btu
Top Of Box 16-3/4" X 6-3/4"
Ceramic Burn Area 15-1/4" X 5-1/4",
Box Only 15-5/8" X 5-3/4"
Garland
Rankin-Delux Broiler Rdcm 15, Rdgm Cheesemelter.
Vulcan Broiler Icm
Us Range Cheesemelter Ircma 24,48,72,96,120,144
This Burner Can Substitute For Jade Burner # 26-3690
But Is Not Exact.

Description

The Vulcan Hart 00-844516-00016 Infrared Burner is a spare part of a commercial cooking appliance. It has a 15-1/4" by 5-1/4" burn zone in a total size of 16-3/4" by 6-3/4", giving it a better source of adequately even heat. The burner is mounted on the inside of the cooking cavity of the appliance, and it transforms gas or electric energy into infrared energy, so the food can be cooked quickly and evenly. This component is used in a variety of broilers and other food heating appliances. It is a component in keeping the cooking performance of the appliance.

More Information:

  • GARLAND:222105-1 ,222105-2||HOBART:00-844516-00016 ,844516-00016 ,844516-16||RANDELL:RDCM-08||RANKIN DELUX:RDCM-08||ROYAL RANGE:1604||VULCAN HART:00-844516-00016 ,844516-00016 ,844516-16 ,VH844516-16

Step1: Turn off the oven power and allow it to cool completely.

Step2: Remove the oven’s top panel to access the existing burner assembly.

Step3: Disconnect the old burner and carefully remove it from the mounting.

Step4: Position the new infrared burner in place and secure it with mounting hardware.

Step5: Reconnect any wiring, replace the panel, restore power, and test for proper operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Vulcan Hart 00-844516-00016 Infrared Burner?

    Clean the burner surface regularly to remove grease and carbon buildup that can affect heat distribution. Inspect the ceramic tiles and ports for blockage to keep the infrared flame pattern consistent.

  • How do I install the Vulcan Hart 00-844516-00016 Infrared Burner?

    • Turn off gas and power to the unit.
    • Remove the existing burner from its mounting brackets.
    • Position the burner and secure it in place.
    • Reconnect the gas line, check for leaks, and restore power.
    • Ignite the burner and verify even infrared heat output.

  • What are common issues with the Vulcan Hart 00-844516-00016 Infrared Burner?

    Common issues include cracked ceramic tiles, uneven heating from clogged ports, and weak flames due to gas pressure problems. Regular cleaning and inspection help prevent performance loss.

  • Which Vulcan Hart models are compatible with the Vulcan Hart 00-844516-00016 Infrared Burner?

    This infrared burner is compatible with Vulcan Hart Infrared Cheesemelters ICM24, ICM36, and ICM48.

  • What maintenance is required for the Vulcan Hart 00-844516-00016 Burner Top Box?

    Regularly clean the ceramic burn area to remove food debris and grease. Inspect for cracks, chips, or signs of wear. Ensure proper alignment and secure connections when reinstalling. Proper maintenance ensures even heat distribution and safe oven operation.

  • What are common issues with the Vulcan Hart 00-844516-00016 Burner Top Box?

    • Cracked or damaged ceramic surfaces.
    • Uneven heating across the burn area.
    • Burner not igniting consistently.
    • Loose or misaligned burner components.
