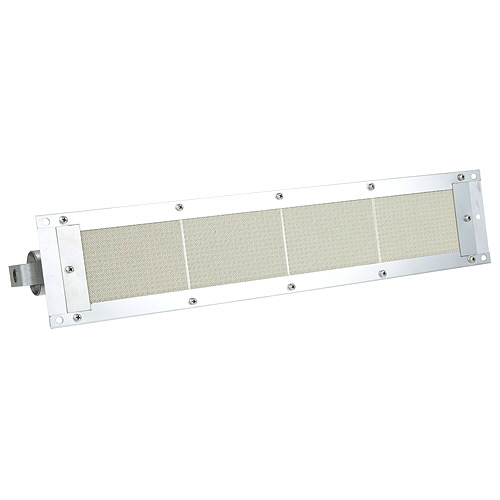

Jade Range 1215300100 Infrared Broiler Burner 5-1/8" X 24-1/8"
$703.82
Price reduced from
$1,348.30
Specifications:
| Attribute | Details |
|---|---|
| Infrared Broiler Burner, 5-1/8" X 24-1/8" | |
| Jade Broiler Jbb, Jshbi |
Description
TheJade Range 1215300100 Infrared Burner HB40-2 JBB/ JSHBI generates the infrared heat that transfers the energy directly to the cookware to ensure consistent thermal output throughout the process. It operates with gas ignition and a radiant heating surface which disperses heat over its active area as it operates. This burner is located in the main heating area of the range and is placed over the cooking area or broiler area, as part of the total heat delivery system.
More Information:
- JADE RANGE:120-150-000 ,120-153-000 ,1215300000 ,1215300100
Step1: Shut off the gas supply and let the appliance cool fully.
Step2: Remove the grate to access the burner.
Step3: Disconnect the gas connection from old burner.
Step4: Remove mounting hardware and take out the burner.
Step5: Install a new burner and secure it firmly, reassemble the grate.
Step6: Reconnect gas, restore supply, and verify proper flame distribution.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Jade Range 1215300100 Burner?
Regularly clean the burner to remove grease and food residue that can block infrared heat. Inspect for warping, cracks, or corrosion. Ensure proper alignment and secure mounting in the infrared broiler. Proper maintenance ensures even cooking and safe operation.
-
What are common issues with the Jade Range 1215300100 Burner?
- Uneven or weak infrared heat.
- Blocked or clogged burner surfaces.
- Warping from high heat exposure.
- Difficulty igniting or inconsistent flame.
