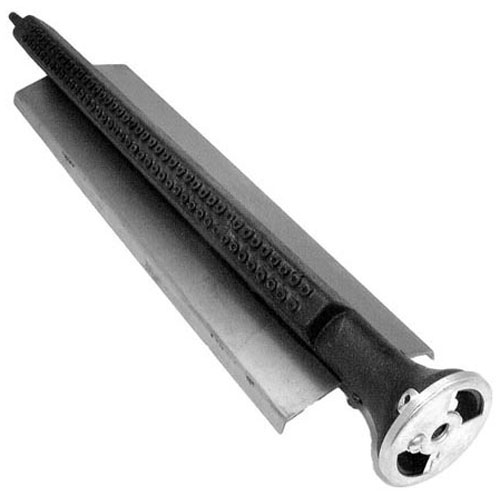

Vulcan Hart 00-700871-0000A Oven Broiler Burner W/shield, Deflector & Air Shutter, 16-1/2" X 4-3/8" Shield, Opening 2.408", Air Shutter W/ 7/16" Hole

SKU: 00-700871-0000A Brand:
Vulcan Hart
Availability:
In Stock
(0)
$141.43 Price reduced from $217.93
Save $76.50
Have a Question? +1 (866) 863-0907 / (630) 326-8602

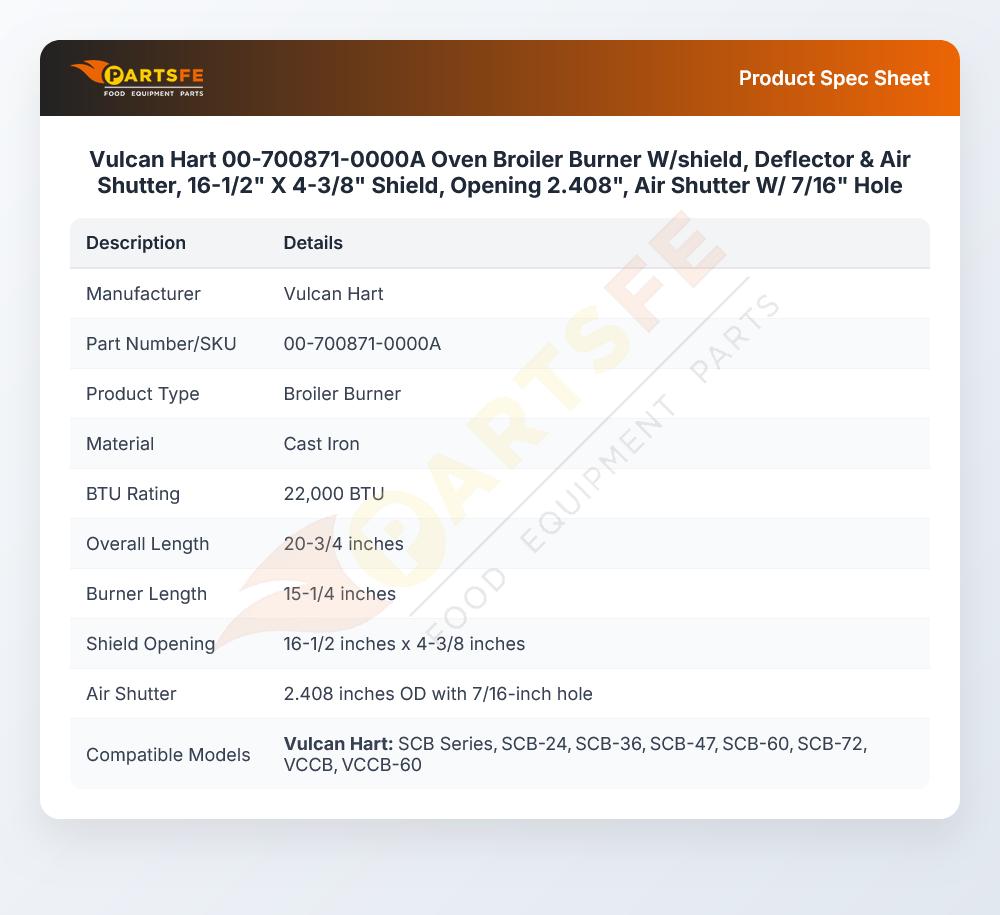

Specifications:

Attribute Details
Cast Iron Broiler Burner W. Deflector & Air Shutter
22,000 Btu.
[ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
Opening 2.408" Od
Air Shutter W/ 7/16" Hole - # 26-1472,
For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
Vulcan Vccb
Wolf Broiler Scb

Description

The Vulcan Hart 00-700871-0000A Broiler Burner is a high-quality spare part. The burner has a shield of 16-1/2” x 4-3/8”, an opening of 2.408”, and an air shutter with a hole of 7/16” protruding from the front. The integrated shield, deflector, and air shutter therefore improve combustion efficiency and reduce heat losses. This is a perfect burner for environments where there is heavy cooking since it is very durable and it also ensures that there is consistency in the cooking process thus saving energy in maintaining high-performing equipment in the kitchen.

More Information:

  • HOBART:00-700871-00004 ,00-700871-0000A ,700871-00004 ,700871-0000A ,700871-4 ,700871-A ,700871A ,871-A ,871A||VULCAN HART:00-700871-00004 ,00-700871-0000A ,700871-00004 ,700871-0000A ,700871-4 ,700871-A ,700871A ,871-A ,871A ,VH700871-4

Step1: Turn off gas and electrical power, allow oven to cool completely before starting to prevent burns or gas leaks.

Step2: Remove old broiler burner assembly and note connection points for gas line and mounting hardware.

Step3: Position new burner with shield and deflector, align with brackets, and secure tightly using original fasteners.

Step4: Reconnect gas line and ensure air shutter is properly aligned and movable for adjustment.

Step5: Restore power, ignite burner, and verify stable blue flame; adjust air shutter for safe combustion.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Vulcan Hart 00-700871-0000A Burner With Shield Deflector & Air Shutter?

    Keep the burner clean from grease buildup and food debris to ensure proper flame distribution. Inspect the air shutter and deflector regularly for alignment and blockages. Check for corrosion or wear on burner ports. Proper maintenance ensures efficient heating and safe operation.

  • What are common issues with the Vulcan Hart 00-700871-0000A Burner With Shield Deflector & Air Shutter?

    • Clogged burner ports leading to weak or uneven flame.
    • Misaligned air shutter causing poor combustion or yellow flame.
    • Warping or wear of deflector reducing heat distribution.
    • Air shutter blockage restricting airflow.
