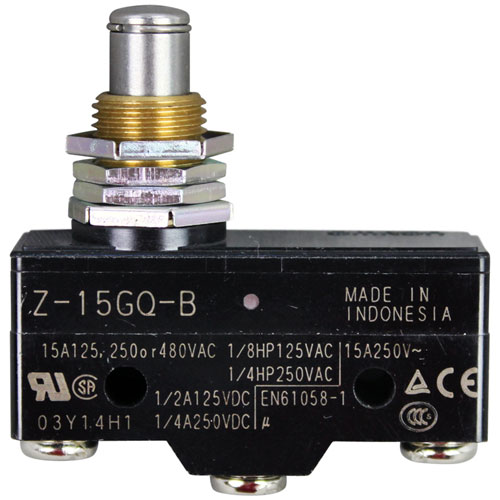

ROYAL RANGE 2519 Oven Door Switch Push Button Plunger Microswitch 15 AMP

A safety-critical electrical switching component used in commercial oven systems, this push button plunger microswitch is designed to control equipment operation through door-actuated or manual triggering. Rated for 15A at 125/250/480VAC, it ensures reliable electrical switching under high-load conditions commonly found in heavy-duty kitchen environments. Its compact plunger-style design allows precise activation, helping maintain controlled power flow to heating and operational circuits. In practical use, the switch plays a key role in ensuring that oven systems respond correctly when doors are opened or closed, contributing to safe and efficient operation. If a faulty switch develops, equipment may fail to power correctly or interrupt heating cycles, leading to inconsistent cooking performance. Replacing a worn microswitch helps restore proper control response and supports stable operation in commercial ovens used in restaurants, bakeries, and foodservice kitchens where reliability is essential.

Equipment Compatibility:
For door safety and control activation systems in Royal Range Oven Door Push Button Plunger Microswitch applications include American Range and Royal Range oven series, along with compatible commercial cooking equipment requiring plunger-style microswitch control. This Oven Door Push Button Plunger Microswitch 2519 is compatible with commercial kitchen equipment from leading brands such as American Range, Royal Range, Fri-Jado, and others, where dependable door-actuated electrical switching is required for safe operation.

Brand Compatibility:
This microswitch replaces similar door control switches used in commercial kitchen equipment from leading brands such as American Range, Royal Range, Fri-Jado, and others. It is designed to fit standard systems so it works properly. Full cross-reference details can be checked separately for exact matching.

Product Specifications:
Product Type: Oven Door Push Button Plunger Microswitch
Manufacturer: Royal Range
SKU: 2519
Electrical Rating: 15A
Voltage Compatibility: 125V / 250V / 480VAC
Design: Push-button plunger actuator

Key Features:

• 15A rating makes it strong enough for commercial oven use.
• Works with different voltages for flexible installation.
• Plunger design quickly responds to door opening and closing.
• Helps keep ovens safe by controlling power when the door moves.
• Restores proper heating and operation when the switch fails.
• Built for repeated use in busy commercial kitchens.
• Helps maintain consistent cooking performance and safety.

• AMERICAN RANGE:A10003||FRI-JADO INC:3701233||ROYAL RANGE:2519

Step1: Disconnect the oven from power to prevent electrical shock.

Step2: Remove the oven door or access panel to reach the switch.

Step3: Disconnect wires from the old switch and remove it.

Step4: Mount the new door switch and reconnect wires securely.

Step5: Reassemble panels, restore power, and test operation.

• What maintenance is required for the ROYAL RANGE 2519 Door Switch?

  Regularly inspect the door switch for dirt, corrosion, or physical damage. Clean gently and ensure the plunger moves freely. Verify secure connections to prevent loose wiring. Proper maintenance ensures accurate oven door operation and safe electrical performance.

• What are common issues with the ROYAL RANGE 2519 Door Switch?

  • Switch failing to activate or respond.
  • Sticking or slow-moving plunger.
  • Loose or corroded electrical connections.
  • Intermittent operation causing oven malfunctions.
