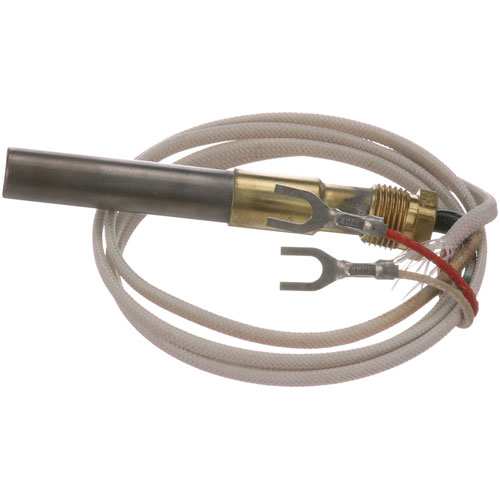

Cecilware F178AL Thermopile 2 Lead 36" 250-750 MV

SKU: F178AL Brand:
Cecilware
Availability:
In Stock
(0)
$64.48 Price reduced from $83.75
Save $19.27
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
Cleveland Boiler Gas Steam Generators W/O Probes (100,000
Btu - 2 Burners~
150,000 - 3 Burners)~
W/3 Probes (160,000
Btu - 3 Burners~
200,000 - 4 Burners
Groen Braising Pan Hfp/2. Series Chfp, Nhfp.
Imperial Fryer Series If, Ihr, Ir.
Keating Griddle Model 48Bfld
Southbend Fryer Gfs, 4Fr-45
Star Fryer 404A, 615Fa, 630Fa
Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
Vulcan Fryer Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
Wells Grill, Gas
Wolf Fryer Wtf-35,

Description

The Cecilware F178AL Thermopile transforms the heat of a flame into electrical voltage, and it generates a current that measures the temperature to use in gas control systems. It has two leads and produces 250-750 millivolts that facilitate the work of burners and safety. This thermopile has a length of 36" and is intended to be installed in ovens, burners, or other gas appliances so that it can reach the source of heat and then be connected to the control circuitry. Its long shape fits well in assemblies without disrupting other components around.

More Information:

  • ADCRAFT:21424||AMERICAN RANGE:A11102 ,AMRA11102||ATOSA:301030006||BLOOMFIELD:2T-42195||CECILWARE:F178A ,F178AL ,F178F ,GMF178A ,GMF178F||CLEVELAND:20410 ,CLE20410||DEAN:810-0159 ,810-0617-1 ,810-06171 ,8100159 ,8100617-1 ,81006171||ENTR?E:400043-1||FRYMASTER:810-0159 ,810-0617-1 ,810-06171 ,8100159 ,8100617-1 ,81006171 ,FM810-0159 ,FM810-0617-1 ,FM810-06171 ,FM8100159 ,FM8100617-1 ,FM81006171||GARLAND:2525-1 ,G02525-1 ,GL1292900 ,GL2525-1 ,GLG02525-1||GRINDMASTER:F178A ,F178AL||GROEN:1126 ,GR001126 ,GR1126||HOBART:00-410839-00004 ,00-497301-00001 ,00-721027-00001 ,00-722158 ,21027-1 ,410839-00004 ,410839-4 ,497301-00001 ,497301-1 ,721027-00001 ,721027-1 ,722158||IMPERIAL:1096 ,IMP1096||JADE RANGE:8800000012||KEATING:022770 ,22567 ,22770 ,4186 ,KEA22567 ,KEA22770 ,KEA4186||LANG:2J-80504-04 ,80504-04||MARKET FORGE:93-0189||SOUTHBEND:1182154 ,SOU1182154||STAR MFG:2J-1182154 ,2J-80504-04 ,2J-Y9270 ,2T-42195 ,2T42195 ,42195 ,4T42195 ,62195 ,WS-62195 ,Y9270||STERO:STA2T-42195 ,STA2T42195 ,STA42195||TRI-STAR:300157 ,AS-300157 ,TRS300157||U-LINE:1950-532 ,1950-53B||VULCAN HART:00-410839-00004 ,00-497301-00001 ,00-721027-00001 ,00-722158 ,110839-4 ,21027-1 ,33681-12 ,410839-00004 ,410839-2 ,410839-4 ,497301-00001 ,497301-1 ,721027-00001 ,721027-1 ,722158 ,VH110839-4 ,VH33681-12 ,VH410839-2 ,VH410839-4 ,VH497301-1

Step1: Turn off gas and electrical supply and allow appliance to cool completely.

Step2: Remove access panel and disconnect old thermopile leads carefully noting polarity.

Step3: Position new thermopile in pilot assembly ensuring proper flame exposure.

Step4: Secure mounting bracket and reconnect leads to control valve terminals.

Step5: Restore power, light pilot, and verify millivolt output and stable flame.

Step6: Check for gas leaks and ensure safe operation before closing panel.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Cecilware F178AL Thermopile Lead?

    Periodically check the thermopile leads and connections for secure contact and signs of corrosion. Keep the sensor tip clean from soot or debris to ensure accurate millivolt output. Verify proper flame contact during operation. Always turn off gas supply before inspecting or adjusting the thermopile.

  • What are common issues with the Cecilware F178AL Thermopile Lead?

    • Low millivolt output due to weak pilot flame.
    • Loose or corroded lead connections.
    • Soot buildup interfering with sensor performance.
    • Failure to hold pilot light despite flame presence.
