Cecilware F180A 1/4" Tube NAT/LP Pilot, 3 Way Flame

SKU: F180A Brand:
Cecilware
Availability:
In Stock
(0)
$54.39 Price reduced from $70.64
Save $16.25
Have a Question? +1 (866) 863-0907 / (630) 326-8602

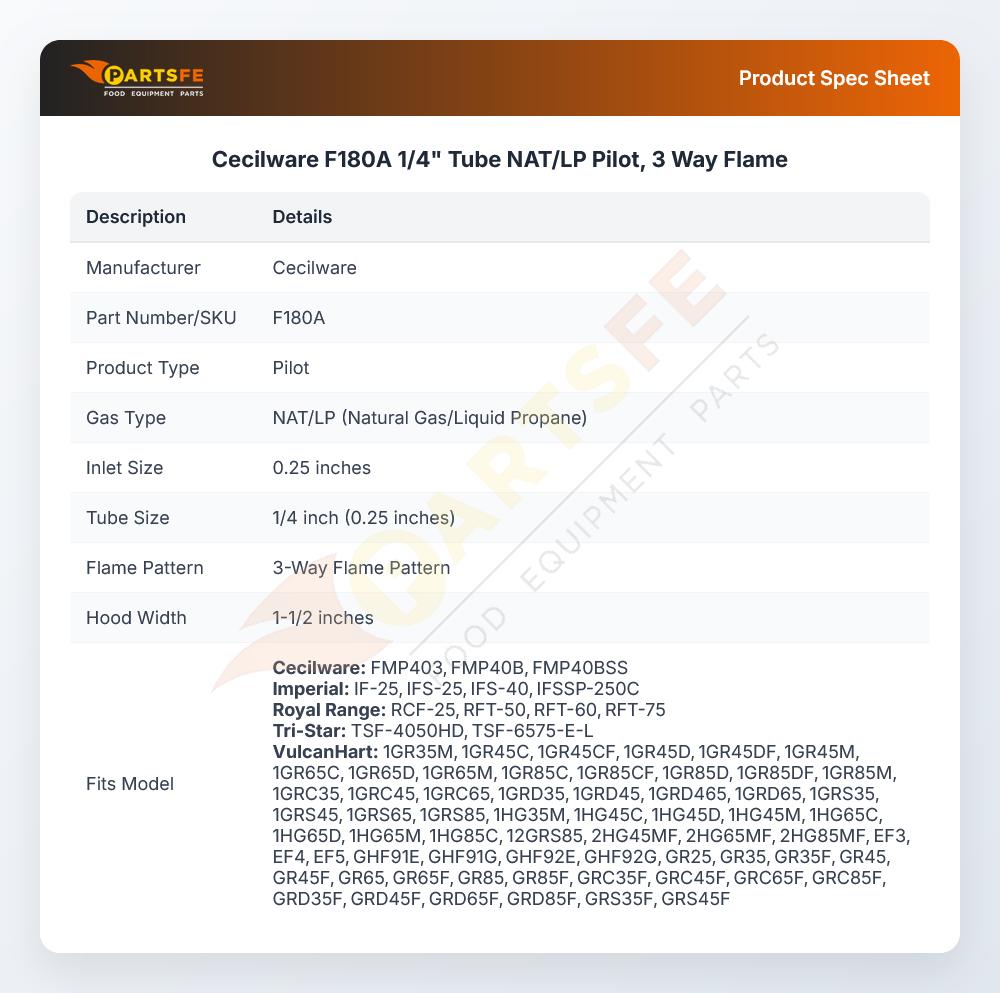

Specifications:

Attribute Details
Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
Nat Orifice Pre-Installed # 26-1555, .018
Lp Orifice Included # 26-1554, .010
Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
Imperial Fryer Series If, Ihr, Ir.
Vulcan Hart
Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
Series 7400, 7500, 7800 (Depending On Date Of
Model). Series Ef
1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
Grs45F, Grs65F, Grs85F

Description

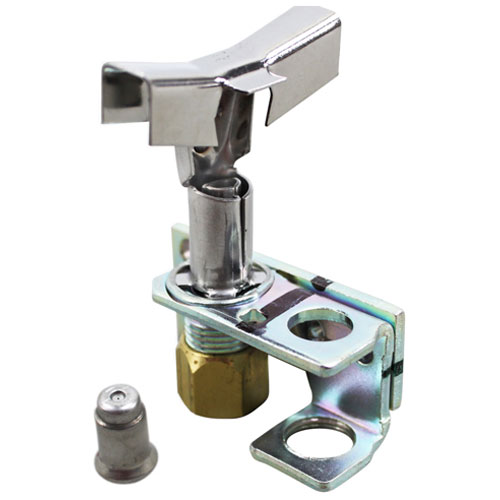

The Cecilware F180A Pilot Natural Gas/LP provides a small, constant flame which lights the main burner when the gas flow is turned on. It directs gas along a small orifice to the pilot tip where the flame is kept burning to allow the burner to start up consistently during use. This pilot assembly is placed close to the appliance burner and is placed in such a way that the flame is able to directly light the primary gas supply during normal heating or cooking operations.

More Information:

  • CECILWARE:F179A ,F179A/F180A ,F179F ,F180A ,F180F ,GMF180A ,GMF180F||GRINDMASTER:180A ,F179A ,F179A/F180A ,F179F ,F180A ,F180F||HOBART:00-412212-00001 ,00-412212-00002 ,00-412212-00007 ,00-412212-1/2/7 ,00-721028-00001 ,112212-1 ,112212-2 ,21028-1 ,412212-00001 ,412212-00002 ,412212-00007 ,412212-1 ,412212-1/2/7 ,412212-2 ,412212-7 ,511467 ,721028-00001 ,721028-1||IMPERIAL:0310 ,1095-16 ,1095-26 ,IMP1095-16 ,IMP1095-26||ROYAL RANGE:3231 ,3232||TRI-STAR:300231 ,TRS300231 ,TS-1095-16 ,TS-1095-26||U-LINE:1830-491 ,6CH14-10||VULCAN HART:00-412212-00001 ,00-412212-00002 ,00-412212-00007 ,00-412212-1/2/7 ,00-4212212-00002 ,00-721028-00001 ,112212-1 ,112212-2 ,21028-1 ,412212-00001 ,412212-00002 ,412212-00007 ,412212-1 ,412212-1/2/7 ,412212-2 ,412212-7 ,721028-00001 ,721028-1 ,VH112212-1 ,VH112212-2 ,VH412212-1 ,VH412212-2 ,VH412212-7
