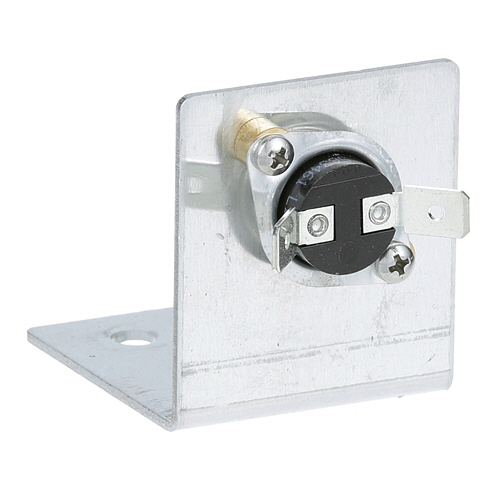

Adcraft FW-1200WS High Limit W/Bracket

SKU: FW-1200WS Brand:
Adcraft
Availability:
Out of Stock
(0)
$16.42
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Hi Limit W/ Bracket
Adcraft, Model Fw1200W ,

Description

The Adcraft FW-1200WS High Limit W/Bracket works by checking the temperature of the appliance and switching off the heating component when it surpasses the preset limit. On activation, it closes the circuit to avoid overheating. This high-limit thermostat has a bracket that is fitted onto the heating element within the unit and the bracket ensures the thermostat is fitted in the correct position. Proper installation enables it to detect the critical temperatures correctly and discontinue power whenever necessary to aid in the safe use of the appliance when in normal operation.

More Information:

  • ADCRAFT:FW-1200WS ,FW-15 ,HI_LIMIT

Step1: Disconnect the appliance from power and allow the unit to cool completely.

Step2: Remove the access panel to locate the existing hi-limit thermostat.

Step3: Disconnect the wires from the old hi-limit and remove the mounting screws and bracket.

Step4: Position the new hi-limit with the bracket in the same location and secure it with screws.

Step5: Reconnect the electrical wires to the matching terminals.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Adcraft FW-1200WS Hi Limit With Bracket?

    Inspect the hi-limit and bracket regularly for dirt, corrosion, or loose connections. Clean contacts with a soft cloth and ensure secure mounting. Proper maintenance ensures accurate temperature control and prevents overheating hazards. Avoid using harsh chemicals that could damage components.

  • What are common issues with the Adcraft FW-1200WS Hi Limit With Bracket?

    • Failure to trigger at the correct temperature.
    • Loose or damaged mounting bracket.
    • Corroded or dirty electrical contacts.
    • Intermittent operation or false trips.
