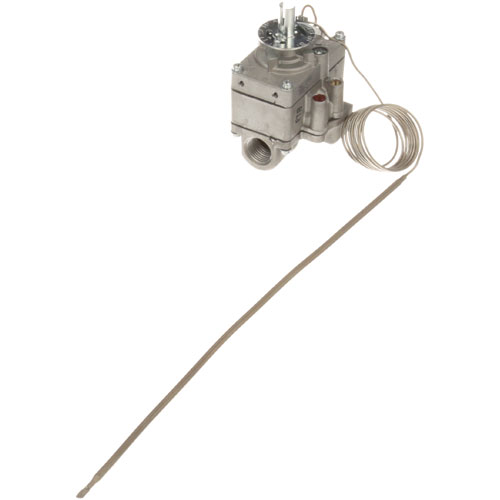

Attias G-170 Thermostat 48" 3/16" X 14-3/4" 300°F-650°F FDTH-1

SKU: G-170 Brand:
Attias
Availability:
In Stock
(0)
$261.72 Price reduced from $644.62
Save $382.90
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Fdth-1 ] [ Temp 300-650 ] [ Bulb 3/16" X 14-3/4"
Nickel ] [ Cap 48 ] [ Gas 1/2 Fpt In/Out,
Gas In (Side) F ] Gas Out: (Side) E
[ Dial # 22-1011 (300-650) Black & Silver
T'Stat Knob For Fd T'Stat, 4-Way Mount ]
[Bakers Pride Dial # 22-1202 (300-650) Black
Printed Dial For Fd T'Stat, Flat Down ]
Note The Bypass Screw Is Backed All The Way Out Allowing
Gas To Flow In The Off Position. It Should Be Turned In And
Then Adjusted For The Proper Bypass Flame.

Description

The Attias G-170 Thermostat 48" 3/16" X 14-3/4" 300°F-650°F FDTH-1 is a mechanical temperature controller that uses a capillary tube and a bulb, which is filled with fluid, which expands or contracts to open or close an internal gas valve. This is a reaction to the temperature variations in the cooking space, which keeps it at a constant temperature between 300°F and 650°F. The 48-inch capillary lead is used to connect the sensing light to the control dial, and it is possible to place it strategically within commercial appliances where it is to monitor the heat.

More Information:

  • ATTIAS:G-170 ,G170||BAKERS PRIDE:AS-M1005X ,BKPM1005X ,M1005X||COMSTOCK CASTLE:17030 ,COM17030||LINCOLN:369006||MARSAL AND SONS:G-140||MONTAGUE:03501-7 ,P-12-B||U-LINE:4200-503

Step1: Disconnect electrical power and shut off the gas supply to the equipment.

Step2: Allow the unit to cool completely before servicing.

Step3: Remove the control panel and disconnect the existing thermostat wiring.

Step4: Carefully remove the sensing bulb and capillary tube from their mounting locations.

Step5: Install the new thermostat, routing the capillary tube without sharp bends.

Step6: Secure the sensing bulb in its original position and reconnect the wiring.

Step7: Reassemble the panel, restore power and gas, then verify temperature operation and calibration.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Attias G-170 Thermostat?

    Regularly inspect and calibrate the thermostat to ensure accurate temperature control. Clean sensing elements and electrical contacts to prevent buildup affecting performance. Check wiring integrity and mounting security while ensuring power is disconnected during service.

  • What are common issues with the Attias G-170 Thermostat?

    • Loose or corroded wiring connections.
    • Sensor delay or no response.
    • Intermittent heating control faults.
    • Inaccurate or drifting temperature readings.
    • Failure to cycle on or off properly.
