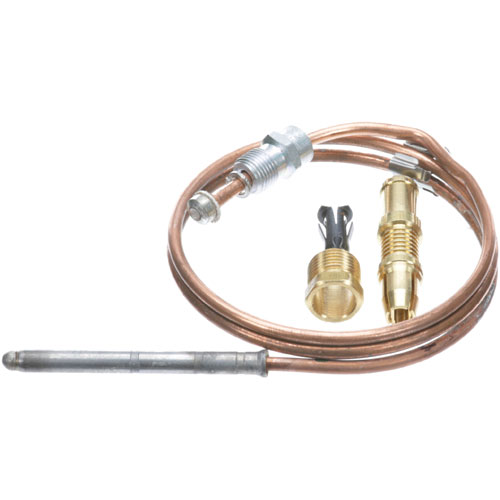

Garland G01754-24 24" Thermocouple

SKU: G01754-24 Brand:
Garland
Availability:
In Stock
(0)
$19.25 Price reduced from $25.00
Save $5.75
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
1980 Series Snap Fit 24" Thermocouple, 20-30 Mv
Coaxial Thermocouple Threads = 11/32"-32
Anets Grill Ss2436.
Dean Fryer Where Applicable
Dynamic Cooking Systems Oven Where Applicable.
Garland Broiler Model?

Description

The Garland G01754-24 24" Thermocouple is a flame sensor designed to be used in commercial gas cooking appliances to check on pilot operation. It is mounted next to the pilot assembly and it reacts to heat and generates a millivolt signal which keeps the gas valve open. This is a thermocouple that is very common in ovens and ranges among other appliances that demand constant attention to the flame. The signal is stopped when the pilot is out and the flow of gas is stopped. The thermocouple is an element of the safety control system.

More Information:

  • ANETS:P8900-47||DEAN:1149 ,807-3550 ,8073550||DUKE:213590||DYNAMIC COOKING SYSTEMS:13007-3||FRYMASTER:1149 ,807-3550 ,8073550 ,FM1149 ,FM807-3550 ,FM8073550||GARLAND:4102920 ,G01754-24||JADE RANGE:4619900000||KEATING:4485 ,KEA4485 ,KEAP15239L ,P15239L||METAL MASTERS:310211||PITCO:P8900-47||SOUTHBEND:1173576 ,1182580 ,P8900-47||STAR MFG:2J-Z4609 ,Z4609||STERO:STA2J-Z4609 ,STAZ4609||VULCAN HART:112788-1 ,20040 ,412788-1 ,920040 ,921565 ,VH112788-1 ,VH20040 ,VH412788-1 ,VH920040 ,VH921565

Step1: Ensure the gas supply is shut off and the appliance is completely cool.

Step2: Remove the access panel to reach the existing thermocouple assembly.

Step3: Disconnect the old thermocouple from the gas valve and retaining bracket.

Step4: Remove the old thermocouple from its mounting position.

Step5: Install the new snap-fit thermocouple and reconnect it to the gas valve securely.

Step6: Restore the gas supply and test the pilot flame and safety control operation.
