Attias G170 Thermostat 3/16" X 14-3/4" 48" 300°F-650°F FDTH-1

SKU: G170 Brand:
Attias
Availability:
In Stock
(0)
$261.72 Price reduced from $644.62
Save $382.90
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
[ Fdth-1 ] [ Temp 300-650 ] [ Bulb 3/16" X 14-3/4"
Nickel ] [ Cap 48 ] [ Gas 1/2 Fpt In/Out,
Gas In (Side) F ] Gas Out: (Side) E
[ Dial # 22-1011 (300-650) Black & Silver
T'Stat Knob For Fd T'Stat, 4-Way Mount ]
[Bakers Pride Dial # 22-1202 (300-650) Black
Printed Dial For Fd T'Stat, Flat Down ]
Note The Bypass Screw Is Backed All The Way Out Allowing
Gas To Flow In The Off Position. It Should Be Turned In And
Then Adjusted For The Proper Bypass Flame.

Description

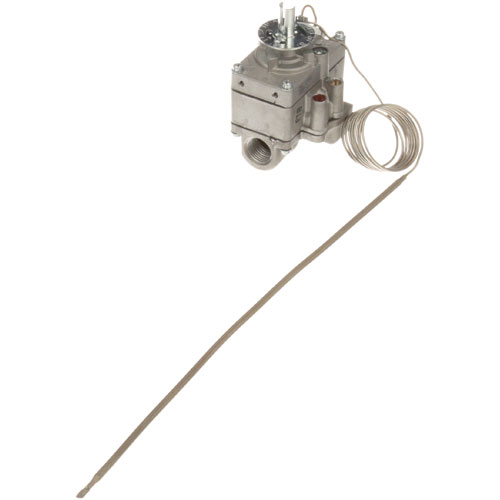

The Attias G170 Thermostat 3/16" X 14-3/4" FDTH-1 regulates temperature by sensing heat changes through its capillary and activating connected controls within a 300F to 650F range. Its 48-inch capillary tube and 3/16-inch sensing bulb transmit thermal expansion to the internal switching mechanism, allowing the unit to cycle heating equipment on or off as temperatures rise or fall. Designed for installation in commercial cooking and food warming equipment, the thermostat is commonly positioned near warming elements where direct temperature monitoring is required for controlled operation during food preparation and service applications in crowded commercial kitchen conditions.

More Information:

  • ATTIAS:G-170 ,G170||BAKERS PRIDE:AS-M1005X ,BKPM1005X ,M1005X||COMSTOCK CASTLE:17030 ,COM17030||LINCOLN:369006||MARSAL AND SONS:G-140||MONTAGUE:03501-7 ,P-12-B||U-LINE:4200-503
