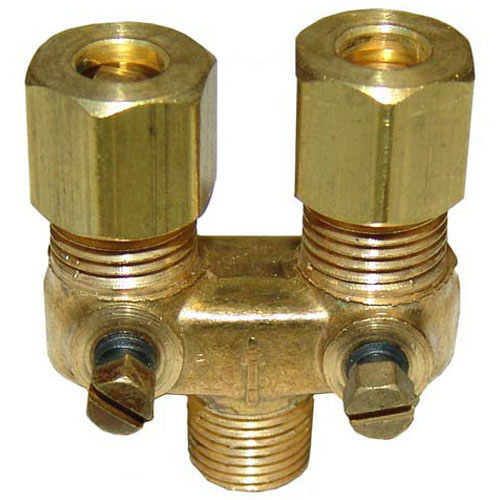

Garland GL1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT

SKU: GL1510402 Brand:
Garland
Availability:
In Stock
(0)
$61.66 Price reduced from $80.08
Save $18.42
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Dual Pilot Adjustment Valve
[ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
[ Comes With Twin 3/16" Cct ]
American Range, Royal Range
Bakers Pride Broiler Series 50, Ch, Xx, Sgbr
Imperial Broiler Series Eba, Gd, Icb, Irb.
Grill Series Imga.
Range Series Icra, Ispa.
Roaster Series Ipr, Ipra.
Rankin-Deluxe Broiler Series Drb.
Southbend Oven Series 400
Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
Gxc(24,36,48), Gxr(30,36,48,60) Series Performer, Rg-Hds-A.
Wolf Broiler Cmss, Fcb, Scb.
Range Ch, Chss.

Description

The Garland GL1510402 Dual Pilot Adjustment Valve 1/8" MPT X 3/16" CCT regulates the flow of gas to a pilot burner by rotating an internal adjustable mechanism that opens or closes the passage to adjust the pilot gas flow to the required amount. Gas passes through the 1/8-inch male pipe thread inlet and out the 3/16" compression connection to the pilot assembly. It is mounted in the line of gas supply of compatible cooking equipment where a small, straight pilot connection is required.

More Information:

  • AMERICAN RANGE:10432 ,A29301 ,AMRA29301||APW WYOTT:2065641||ATOSA:301030007||BAKERS PRIDE:2V-R3020A ,BKPR3020A ,R3020A ,R3020X||COMSTOCK CASTLE:25016||GARLAND:1150099 ,1510402 ,153844 ,GL1150099 ,GL1510402||HOBART:00-409557-00004 ,00-420786-00001 ,109557-4 ,120786-1 ,19190 ,409557-00004 ,409557-4 ,420786-00001 ,420786-1 ,6614 ,719190 ,806614||IMPERIAL:1003 ,1003-1 ,1608 ,IMP1608||RANDELL:CB-09 ,CB09 ,DRB-12 ,GT-10 ,RB-12 ,RDCB-09 ,RDCM-04 ,RDGM-14 ,RDHP-16A ,RDHP-E-C-16A ,RDLR-08A ,SP-14 ,SSPR-11 ,SUHP-10 ,SUHP-E-C-10 ,TB-12 ,TB-3-12 ,TB3-12||RANKIN DELUX:CB-09 ,CB09 ,DRB-12 ,GT-10 ,RANRB12 ,RANTB12 ,RB-12 ,RB12 ,RDCB-09 ,RDCM-04 ,RDGM-14 ,RDHP-16A ,RDHP-E-C-16A ,RDLR-08A ,SP-14 ,SSPR-11 ,SUHP-10 ,SUHP-E-C-10 ,TB-12 ,TB-3-12 ,TB12 ,TB3-12||ROYAL RANGE:053-AP6-1 ,0531-AP6-1 ,1211 ,53AP6-1 ,ROY053-AP6-1 ,ROY53AP6-1||SOUTHBEND:1166004 ,SOU1166004||VULCAN HART:00-409557-00004 ,00-420786-00001 ,00-719190 ,109557-4 ,120786-1 ,19190 ,409557-00004 ,409557-4 ,420786-00001 ,420786-1 ,6614 ,719190 ,806614 ,VH109557-4 ,VH409557-4 ,VH420786-1

Step1: Turn off gas supply and disconnect power to the appliance.

Step2: Locate and remove the faulty pilot valve using appropriate tools.

Step3: Apply thread sealant to the new valve’s threads.

Step4: Install and tighten securely without over-torquing.

Step5: Reconnect tubing.

Step6: Restore gas supply and check for leaks using a soap solution.

Step7: Test ignition to ensure proper operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Garland GL1510402 Pilot Valve?

    Inspect the pilot valve regularly for gas leaks, corrosion, and secure threaded connections. Ensure the valve operates smoothly without sticking or delay. Clean surrounding grease buildup and verify proper pilot flame stability during routine equipment checks for safe and efficient performance.

  • What are common issues with the Garland GL1510402 Pilot Valve?

    • Gas leakage at fittings or seals causing unsafe operation.
    • Clogged orifice leading to weak or unstable pilot flame.
    • Ignition failure or intermittent lighting due to debris or wear.
    • Valve sticking or corrosion affecting smooth gas control.
