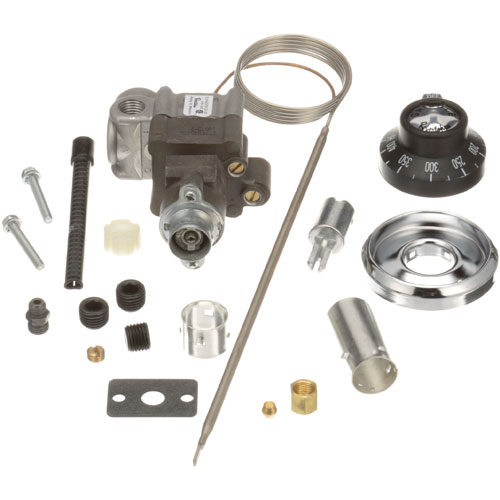

Cecilware GML032F Thermostat W/Dial 3/16" X 11-5/8" X 48" CAP 150°F-400°F BJWA

SKU: GML032F Brand:
Cecilware
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907 / (630) 326-8602

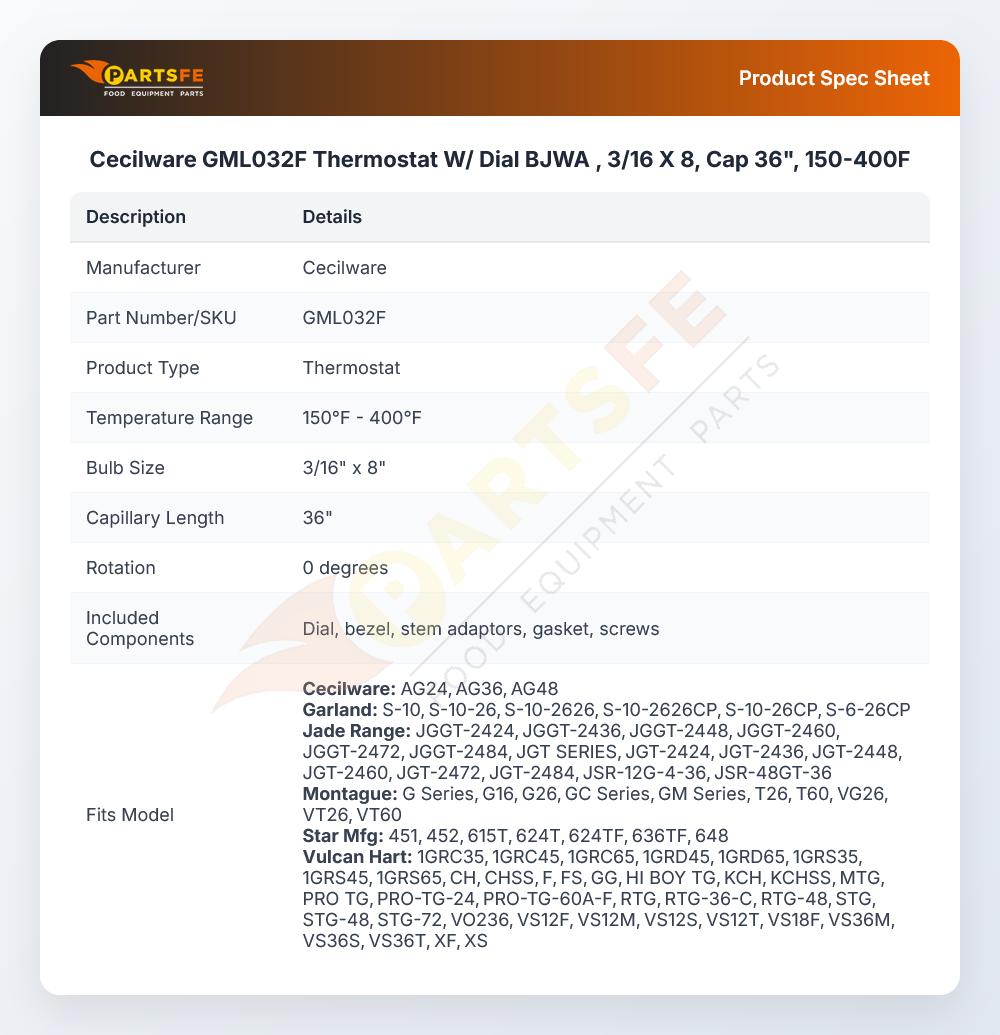

Specifications:

Attribute Details
Viewed From Rear See "Bj Outlet Positions"
W/ By-Pass Adj At Top & Gas Inlet Down
[ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
[ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
[Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
Dial = # 22-1036 Off-Lo-150-400-Hi ]
Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
Dynamic Cooking Systems Griddle
Cecilware Grill Before 1/86 Ag-(24,36,48).
Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
Jade Series Jsr
Montague Griddle
Southbend Griddle Series Sg

Description

The Cecilware GML032F Thermostat W/Dial 3/16" X 11-5/8" X 48" Cap 150°F-400°F BJWA regulates temperature by detecting heat through a capillary-connected sensing bulb and converting those readings into mechanical switching actions. When the measured temperature deviates from the dial setting, the thermostat activates or interrupts electrical supply to heating parts to stabilize internal conditions. It is installed in compatible commercial cooking equipment, with the sensing bulb positioned in the heated area and the dial assembly mounted on the control interface.

More Information:

  • BLOOMFIELD:2T-39282||CECILWARE:GML032 ,GML032A ,GML032F ,L032 ,L032A ,L032F ,L032T||DYNAMIC COOKING SYSTEMS:55764-03 ,DCS55764-03||GARLAND:227000 ,227000-1||GRINDMASTER:L032A ,L032F ,L032T||HOBART:00-418573-000G1 ,00-723257 ,00-723258 ,00-802116-00001 ,00-920028 ,13523 ,19362 ,2116 ,418573-000G1 ,418573-G1 ,713523 ,723257 ,723258 ,802116-00001 ,802116-1 ,920028||JADE RANGE:460-101-000 ,46101 ,4610100000||MONTAGUE:03384-7 ,3384-7 ,B-36 ,G-15 ,R99||STAR MFG:2T-39281 ,2T-39282 ,2T-Y7159 ,2T-Z4293 ,59281 ,59282 ,9493 ,WS-59281 ,WS-59282 ,Y7159 ,Z4293||STERO:STA2T-Y7159 ,STA2T-Z4293 ,STA9493 ,STAY7159 ,STAZ4293||U-LINE:4350-028 ,4350-037||VULCAN HART:00-418573-000G1 ,00-723257 ,00-723258 ,00-802116-00001 ,00-920028 ,13523 ,19362 ,2116 ,418573-000G1 ,418573-G1 ,713523 ,723257 ,723258 ,802116-00001 ,802116-1 ,920028
