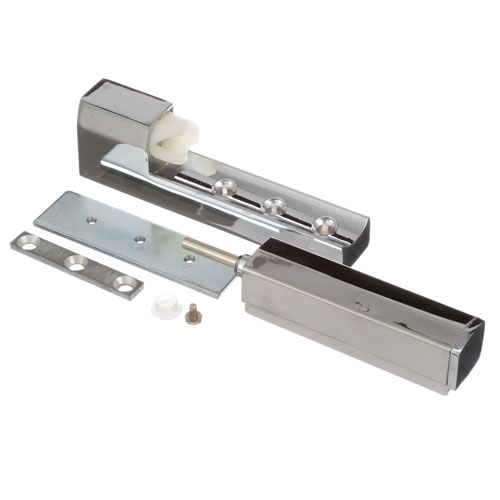

Fogel HA349 Hinge Assembly

SKU: HA349 Brand:
Fogel
Availability:
In Stock
(0)
$103.66 Price reduced from $195.22
Save $91.56
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details
Null

Description

The Fogel HA349 Hinge Assembly uses a cam-lift design, which literally lifts the door during the door opening process and uses gravity to support the door closing itself. This interior design applies a helical rising surface to allow the smooth swing and the door to resume its fully seated position once released. The assembly is attached to the side of the refrigeration unit and the door panel with a clearance. This hardware allows commercial coolers and merchandisers to have a pivot point to hold the weight of the door when used at high frequency.

More Information:

  • BAKERS AID:01-3PB045||CHG:CHGR50-2850 ,R50-2850||FOGEL:HA349 ,HA349A||FRANKLIN CHEF:611505||HOBART:01-3PB045 ,HOB01-3PB045||KAIRAK:28583 ,3801310 ,SER-28583-00 ,SK-HINGE||RANDELL:HD HIN0001 ,HD HIN400 ,HDHIN0001 ,HDHIN400 ,RDHD HIN0001 ,RDHD HIN400 ,RDHDHIN0001 ,RDHDHIN400||STANDARD KEIL:2850-1013-1110||STAR MFG:SP880-1 ,SP880-3||STERO:2HAL0880-003 ,2HAL0880-01||TRAULSEN:28583 ,SER-28583-00 ,TRSER-28583-00||VICTORY:10685101 ,50520101 ,VT10685101 ,VT50520101

Step1: Disconnect power to the unit and support the door to prevent it from shifting.

Step2: Remove the mounting screws from the damaged hinge assembly and carefully detach old hinge from the door and cabinet.

Step3: Position the new hinge assembly in the original mounting location.

Step4: Secure all mounting screws and verify the hinge is properly aligned.

Step5: Open and close the door several times to check smooth operation.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Fogel HA349 Hinge Assembly?

    Inspect the hinge assembly regularly for loose mounting hardware, wear, or misalignment. Apply a food-safe lubricant to moving hinge components when needed to maintain smooth door operation. Check that the door opens and closes properly without excessive resistance. Disconnect equipment power and support the door securely before performing any hinge adjustments or repairs.

  • What are common issues with the Fogel HA349 Hinge Assembly?

    • Door misalignment causing improper sealing.
    • Loose mounting hardware leading to wobbling or instability.
    • Squeaking or stiff movement due to lack of lubrication.
    • Wear or cracking of hinge components under heavy use.
    • Failure to close properly results in uneven door operation.
