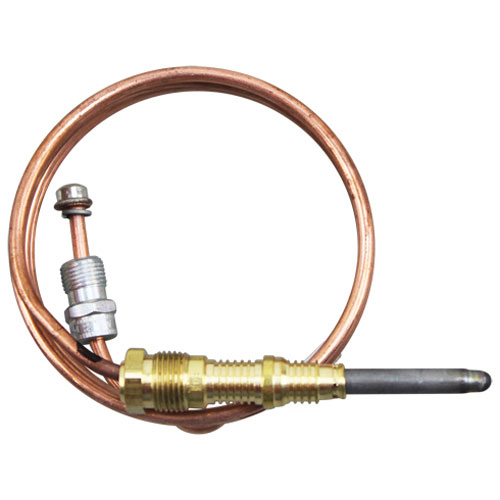

Vulcan Hart 00-715005 Oven Thermocouple

SKU: 00-715005 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$18.68 Price reduced from $24.25
Save $5.57
Have a Question? +1 (866) 863-0907 / (630) 326-8602

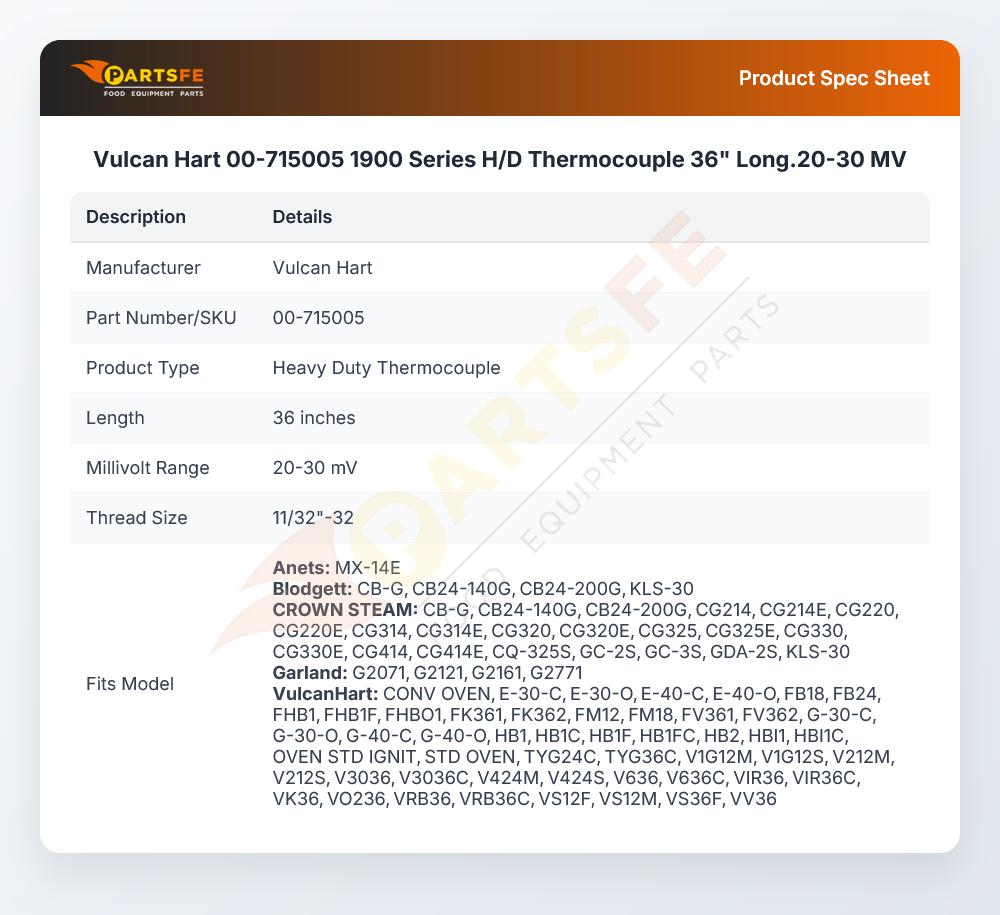

Specifications:

Attribute Details
1900 Series Heavy Duty Thermocouple 36" Long.20-30 Mv
Coaxial Thermocouple Threads = 11/32"-32
Anets Fryer 14Gs(U)
Garland Bake/Roast Deck Oven G2071, G2121, G2161, G2771
Market Forge
Steamer Where Applicable
Southbend Nodel?
Vulcan Hart Model?
Wolf Model F4-27

Description

The Vulcan Hart 00-715005 Thermocouple is used to measure the temperature in the oven by measuring the heat at the tip of the burner and producing a low electrical voltage that is proportional to the temperature. The signal is relayed to the gas control system, which is then able to control the amount of gas flowing and the temperature at which the cooking is required. It is built to be mounted close to the burner and is fitted directly into the existing connection point so as to accurately measure the heat and relay the information to the control system to ensure that the heating elements operate correctly.

More Information:

  • ANETS:P8903-48||BLODGETT:41163||CROWN STEAM:6-36TB ,PE-145||GARLAND:1019436||HOBART:00-715005 ,00-880828 ,15005 ,18328 ,715005 ,718328 ,880828 ,HOB00-715005 ,HOB00-880828 ,HOB15005 ,HOB18328 ,HOB715005 ,HOB718328 ,HOB880828||MARKET FORGE:10-6048 ,97-5493 ,975493 ,MAR10-6048||PITCO:P8903-48||SOUTHBEND:1161521 ,6-36TB ,PE-145 ,SOU1161521 ,SOU6-36TB||U-LINE:1900-036||VULCAN HART:00-715005 ,00-880828 ,15005 ,18328 ,715005 ,718328 ,880828 ,VH00-880828 ,VH718328 ,VH880828

Step1: Turn off gas and power; let oven cool.

Step2: Remove access panel and old thermocouple.

Step3: Route new thermocouple in same position, avoid sharp bends.

Step4: Secure probe near burner area.

Step5: Reconnect to control valve, tighten fitting.

Step6: Restore power and test ignition.

Step7: Safety ensure gas leak check with soap solution after installation carefully.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Vulcan Hart 00-715005 Thermocouple?

    Inspect the oven thermocouple tip for grease, soot, or residue that may affect heat sensing. Wipe it gently with a dry cloth and ensure proper placement in the pilot flame. Check connections for tightness and corrosion. Turn off the gas supply before servicing.

  • What are common issues with the Vulcan Hart 00-715005 Thermocouple?

    • Pilot flame fails to stay lit.
    • Weak signal to the gas safety valve.
    • Oven burner shuts off unexpectedly.
    • Loose or corroded connection points.
    • Incorrect positioning away from the pilot flame.
