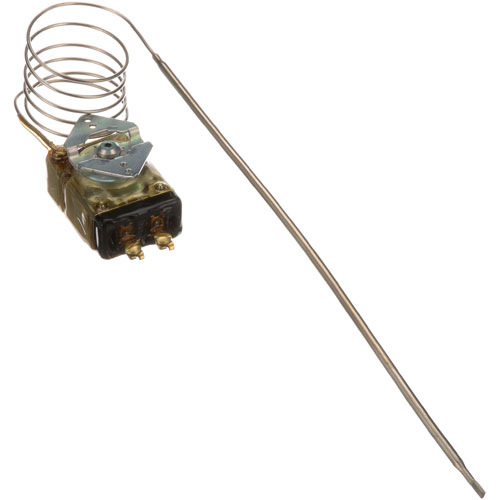

Groen Z013481 Oven High Limit Thermostat KX Dip Sealed 550°F Fixed 3/16" Bulb
$110.79
Price reduced from
$187.78
Specifications:
| Attribute | Details |
|---|---|
| High Limt, Fixed Thermostat, | |
| [ Kx Dip Sealed ] [ Temp 550 Fixed ] | |
| [ Bulb 3/16" X 12-1/4" Nickel ] [ Cap 36" ] [ Mount 1 ] | |
| [ No Dial ] | |
| Groen Braising Pan Series | Chfp, Hfp, Nhfp. |
Description
The Groen Z013481 High Limit Thermostat measures temperature and cuts the electrical flow, when the maximum temperature is reached and prevents overheating. It automatically closes the circuit when the temperature exceeds the limit and can be manually reopened when the conditions return to normal. This is intended to be installed in commercial kettles or cooking parts and is installed directly in the existing temperature control and safety system of the appliance.
More Information:
- GROEN:013481 ,13481 ,GR013481 ,GR13481 ,Z013481||U-LINE:5300-786 ,5300-78F ,KX61-36
Step1: Disconnect oven power before starting.
Step2: Open the control area to access the thermostat.
Step3: Remove the wiring and the sensing bulb carefully.
Step4: Unscrew and remove the old thermostat.
Step5: Install the new thermostat and position the bulb correctly.
Step6: Reconnect wiring, close the control area, restore power, and test the safety cutoff.
Customer Reviews
No reviews yet. Be the first to write one!
Write a Review
Thank you! Your review has been submitted.
-
What maintenance is required for the Groen Z013481 Thermostat?
Regularly inspect the thermostat and bulb for corrosion, debris, or loose connections. Keep the bulb clean and free from grease to ensure accurate temperature sensing. Always disconnect power before handling to prevent shocks or accidental triggering.
-
What are common issues with the Groen Z013481 Thermostat?
- Temperature readings higher or lower than expected.
- Oven cycles on and off erratically.
- Physical wear or damage to the thermostat housing.
- Improper operation due to misaligned sensing element.
