Delfield 3230010 Concealed Cartridge Door Hinge Assembly W/Extended Pin

SKU: 3230010 Brand:
Delfield
Availability:
In Stock
(0)
$14.44 Price reduced from $59.00
Save $44.56
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Description

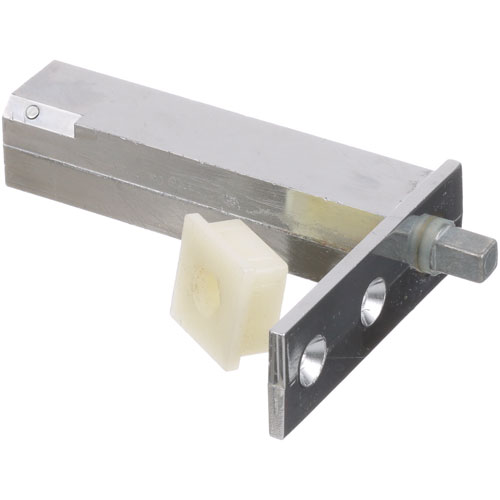

The Delfield 3230010 Concealed Cartridge Door Hinge Assembly With Extended Pin works by making use of an internal spring system in a shielded casing to allow the movement of the door to be controlled. This part is involved through a lengthy screw that connects the gate frame to the panel so that there is uniform rotation in each opening and closing cycle. This hardware allows for the exterior to be made streamlined by hiding the mechanical aspects in the entrance structure and allows the required pivot points of heavy-duty commercial equipment.

More Information:

Manufacturer Name: Delfield
Product Number: 3230010
OEM Part Number: 3230010
Product Description: Concealed Hinge, W/Extended Pin, No Stop.;Reversible Cartridge;Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,;4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,;4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,;4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,;4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,;6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,;6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427n, D4432n,;D4448n, D4448n-18M, D4460n, D4464n, D4472n, St4427n,;St4432n, St4448n, St4460n, St4464n, St4472, St4472n,;St4560n, Std4427n, Std4432n, Std4448n, Std4460n, Std4464n,;Std4472n, Uc4048, Uc4148, Uc4427n, Uc4432n, Uc4448n,;Uc4460n, Uc4464n, Uc4472, Uc4472n, Uc4560n, Ucd4427n,;Ucd4432n, Ucd4448n, Ucd4460n, Ucd4464n, Ucd4472n
Similar Models:000BFW0030 - Delfield, 3234225 - Delfield, 3237509 - Delfield, 3237516 - Delfield, 3237516S - Delfield, 3237516-S - Delfield
Dimensions:
Length:4.625in/11.75cm
Width:3in/7.62cm
Height:1in/2.54cm
Weight:0.5lbs/226.8g
