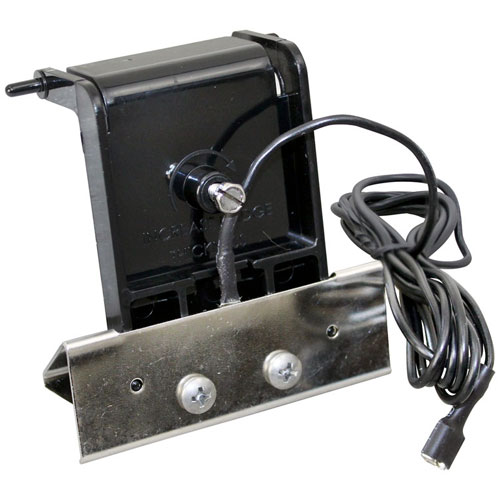

Scotsman A39031-021 Ice Thickness Sensor Replacement

This ice thickness sensor is a critical sensing component for commercial ice machines that can assist in controlling the ice making cycle by determining the proper thickness of the ice. It operates by detecting ice formation on the evaporator plate and communicating with the control system to stop or start the freezing process as needed. It is a component of a low voltage control system and is a key element in maintaining ice quality and avoiding over-freezing or under-producing. If this sensor is worn or inaccurate, the ice production may be inconsistent, resulting in thin ice sheets or excessive ice build-up that can impact machine efficiency. A defective sensor can cause incorrect cycle timing and may affect overall machine performance. It is commonly found in commercial kitchens, beverage stations, hotels, and foodservice environments that require dependable daily ice production.

Equipment Compatibility:
This Ice Thickness Sensor is commonly used in commercial cube ice makers and undercounter ice machines where accurate ice thickness monitoring is required for proper ice production. This part is compatible with select Scotsman ice machine models where reliable ice level sensing and production control are necessary for normal operation.

Brand Compatibility:
This part replaces several older sensor numbers used in many Scotsman ice machines. A full list of matching part numbers is available separately for proper replacement matching.

Product Specifications:
Product Type: Ice Thickness Sensor
Manufacturer: Scotsman
SKU: A39031-021
Function: Ice Thickness Sensing for Production Control
Compatibility: Fits Select Scotsman Commercial Ice Machine Models

Key Features:

• Accurately detects ice thickness for proper cycle timing
• Helps ensure consistent ice size and quality output
• Prevents over-freezing or under-producing ice conditions
• Maintains efficient ice machine operation and performance
• Supports reliable low-voltage control system function
• Compatible with a wide range of Scotsman ice machines
• Helps restore normal ice production cycle behavior

“The sensor reads properly again, and the ice production cycle is back to normal without irregular build-up.”

• SCOTSMAN:A39031-021 ,A39031021 ,SCA39031-021

Step1: Turn off power to the ice machine and unplug it for safety.

Step2: Remove the front panel to access the evaporator and sensor area.

Step3: Locate the existing ice thickness sensor near the evaporator plate.

Step4: Disconnect the wire harness and remove the mounting screw or clip.

Step5: Install the new sensor in the same position and reconnect wiring.

Step6: Restore power, replace the panel, and test proper ice production.

• What maintenance is required for the Scotsman A39031-021 Ice Thickness Sensor?

  Clean the sensor regularly to remove mineral deposits, scale, and ice buildup that affect accuracy. Inspect wiring and mounting for looseness or damage to ensure proper signal transmission. Disconnect power before servicing to maintain safety and prevent electrical hazards.

• What are the common issues with the Scotsman A39031-021 Ice Thickness Sensor?

  • Sensor failing to detect proper ice thickness.
  • Inconsistent signal readings.
  • Ice forming too thick or too thin.
  • Faulty or intermittent sensor response.
