Garland 4602647 Range Ignition Control Box 24V, NAT/LP Gas

SKU: 4602647 Brand:
Garland
Availability:
In Stock
(0)
$151.11 Price reduced from $320.15
Save $169.04
Have a Question? +1 (866) 863-0907 / (630) 326-8602

Specifications:

Attribute Details

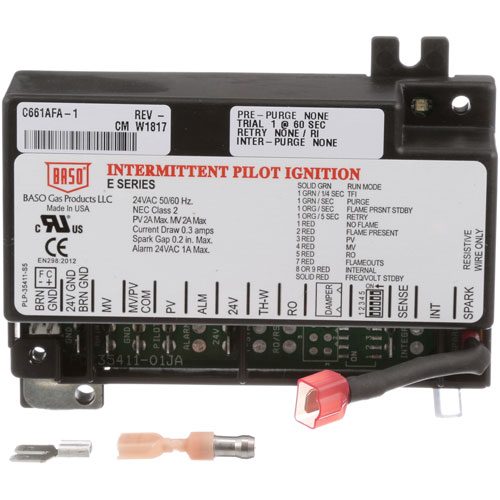

Black Baso Ignition Control Box.
Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
Old Spark Post Ignition Cable Use # 38-1339
Includes Adaptor, Round Post To 1/4" Female Tab Term,
# 85-1071.

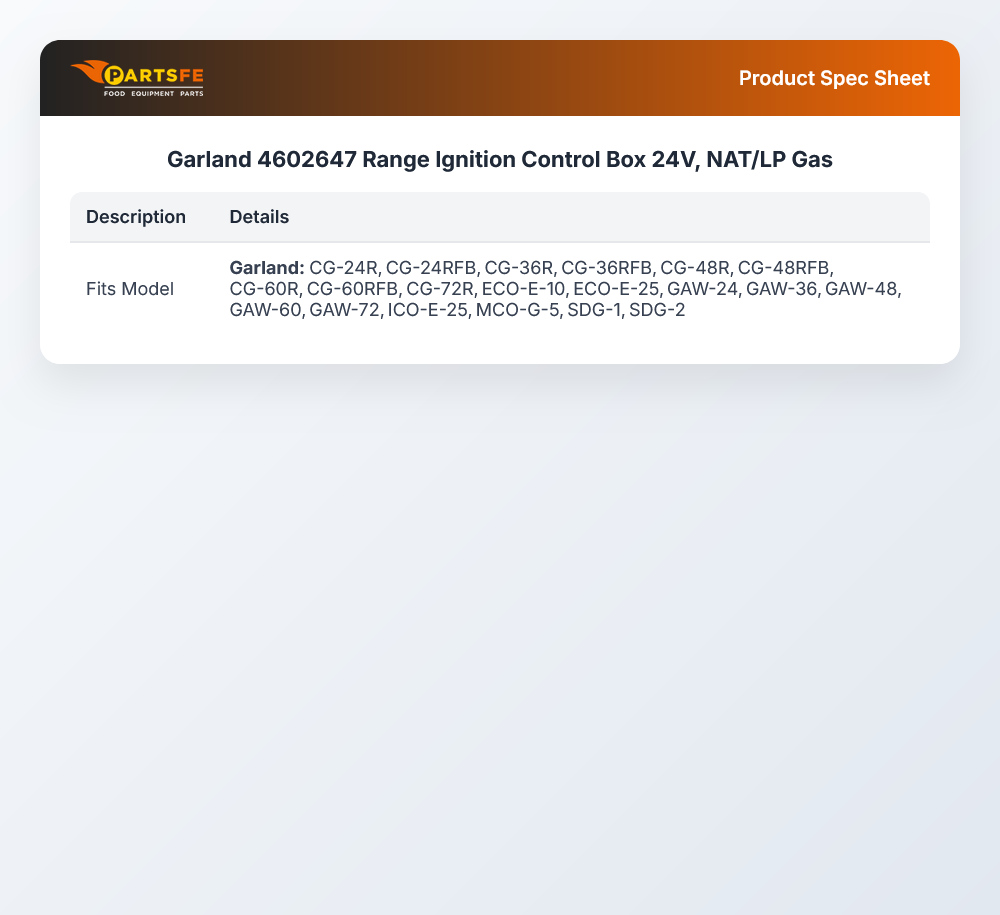

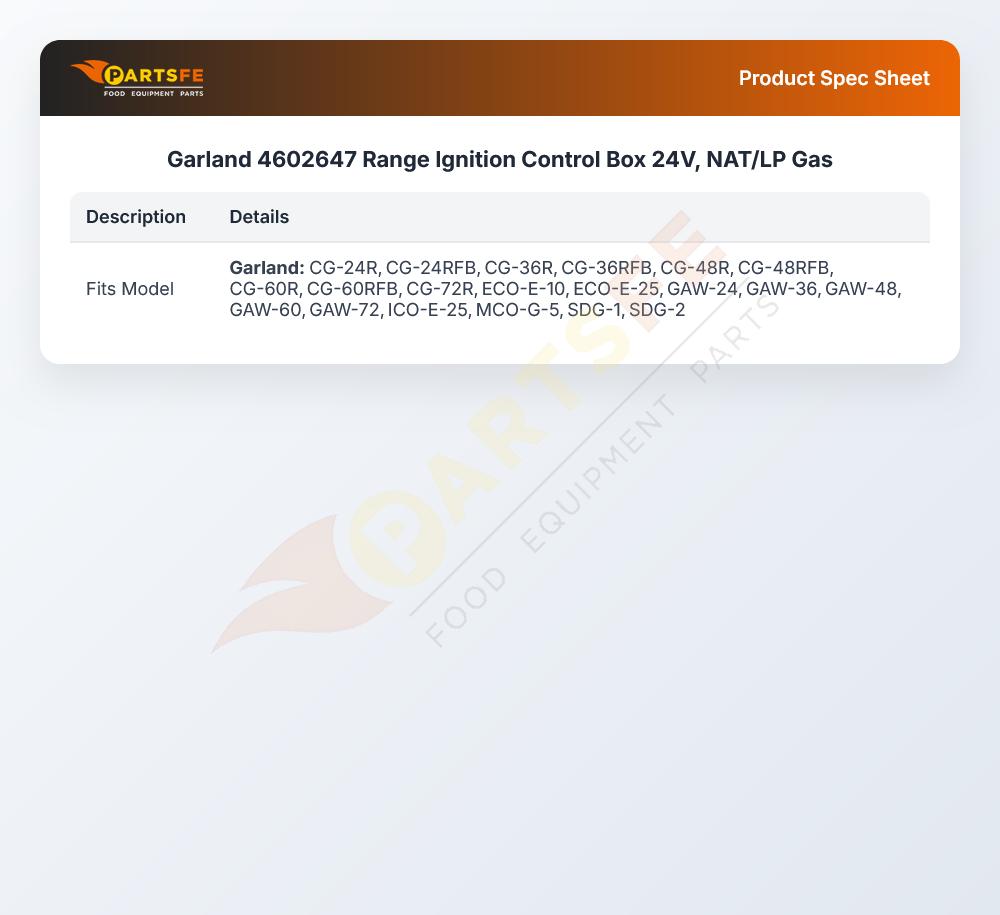

Garland Oven All Convection Ovens With Lp Gas & Electronic
Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
Foreign Units).
Us Range Oven Sdg-1, Sdg-2 Lp Units

Description

The Garland 4602647 Range Ignition Control Box 24V NAT/LP Gas functions by controlling the ignition sequence of natural or liquid propane gas ranges to maintain the operation of the burner. It works by regulating the time and delivery of electrical signals that trigger the flow of gas to ensure the same performance in the start-up and cooking process. This box is fitted in the control compartment of the range where it is interconnected to the burners and gas valves to ensure safe ignition.

More Information:

  • GARLAND:1516300 ,1781901 ,2152700 ,4528856 ,4529434 ,4602647||JADE RANGE:460-251-000 ,460251000 ,4625100000

Step1: Shut off electrical power and gas supply to the range.

Step2: Open the control compartment and label all wire connections.

Step3: Disconnect the old ignition control box and remove mounting screws.

Step4: Install the new control box and reconnect wires to matching terminals.

Step5: Restore power and gas, then test ignition performance.

Customer Reviews

No reviews yet. Be the first to write one!

  • What maintenance is required for the Garland 4602647 Ignition Control Box?

    Keep the ignition control box clean and dry, free from grease or debris. Check electrical connections regularly for tightness and corrosion. Always disconnect power before inspection. Proper care ensures reliable ignition and safe operation.

  • What are common issues with the Garland 4602647 Ignition Control Box?

    • Ignition failure or weak spark.
    • Intermittent or inconsistent burner operation.
    • Faulty control signals causing error codes.
    • Malfunctions due to moisture or grease buildup.
